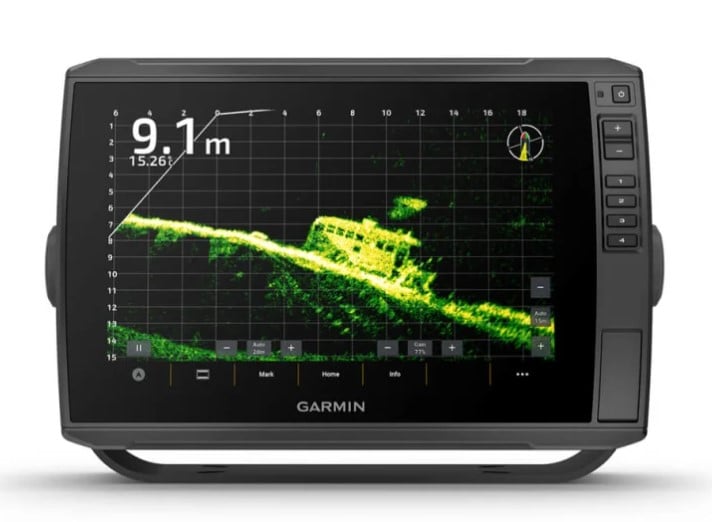

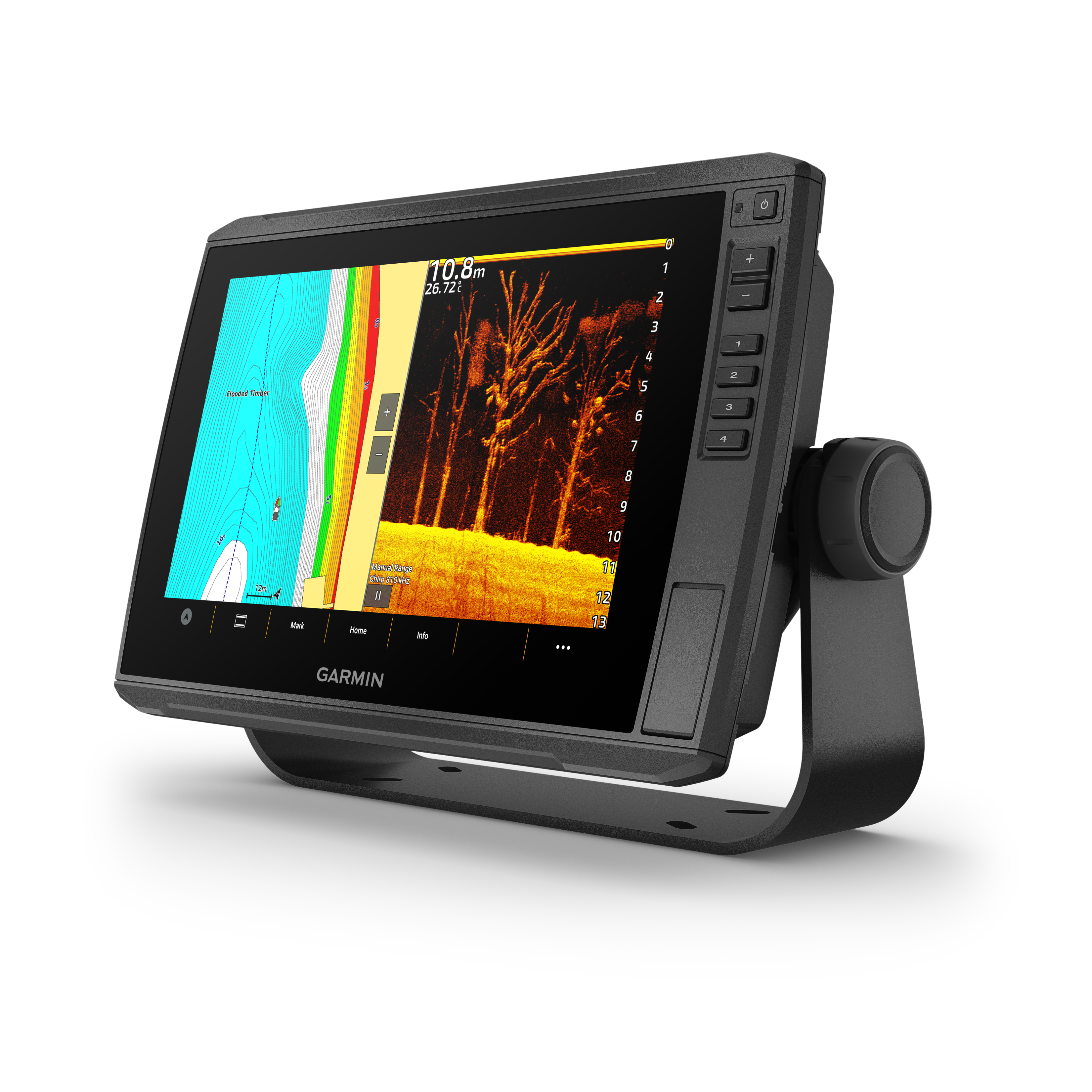

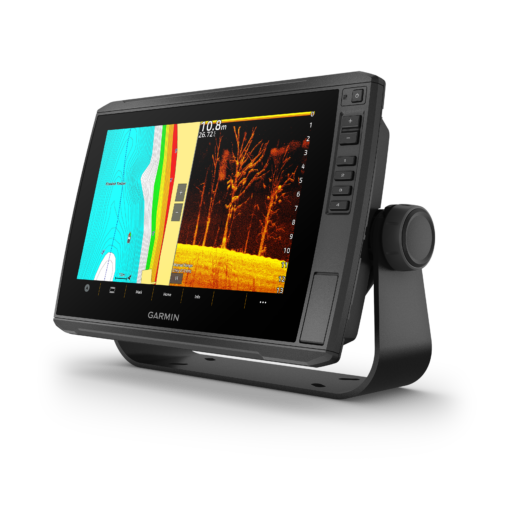

Garmin Plotters ECHOMAP™ Ultra 2 de 10″, 102sv
1.859,50 € – 2.165,28 €
You save
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
INTEGRATED UHD PROBE

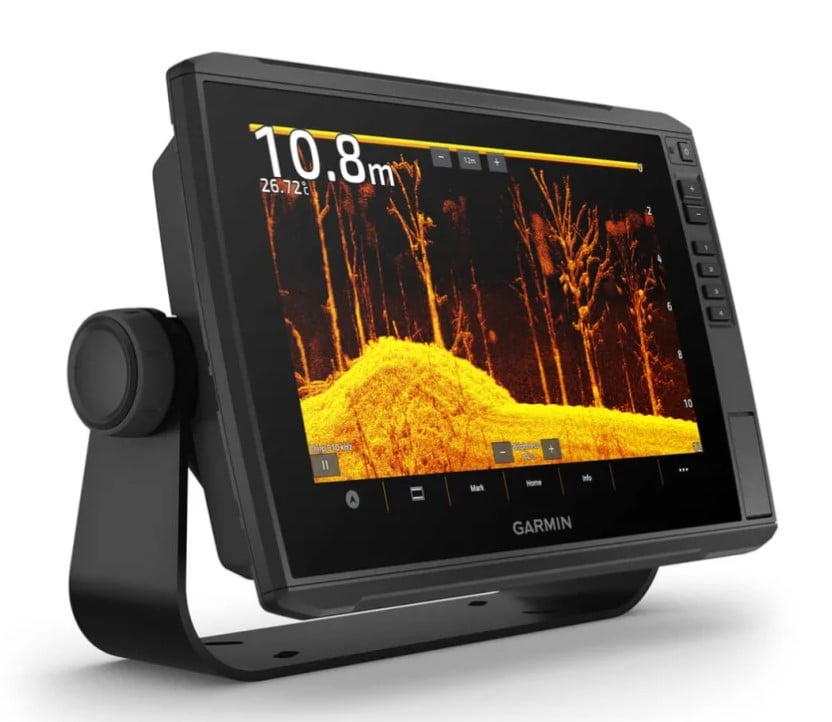

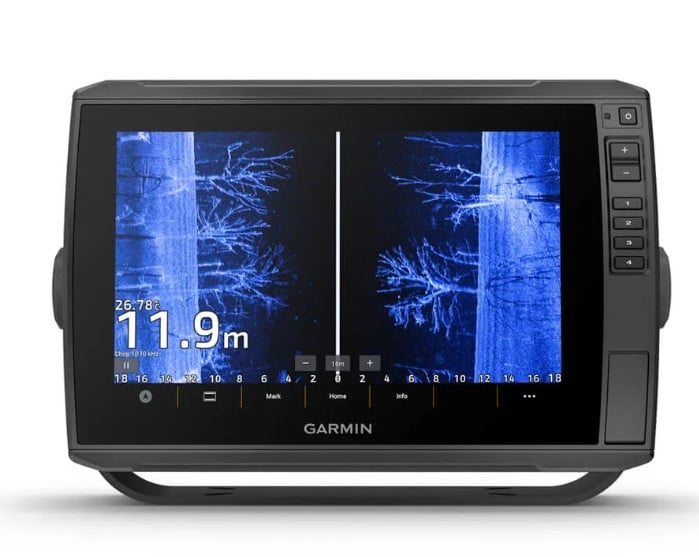

Some models include a GT56 transducer that provides the traditional Garmin CHIRP probe and the ultra-high-definition ClearVü™ and SideVü™ exploration probes to obtain photographic-quality images of what is under the surface.
INTENSE COLOR RANGES

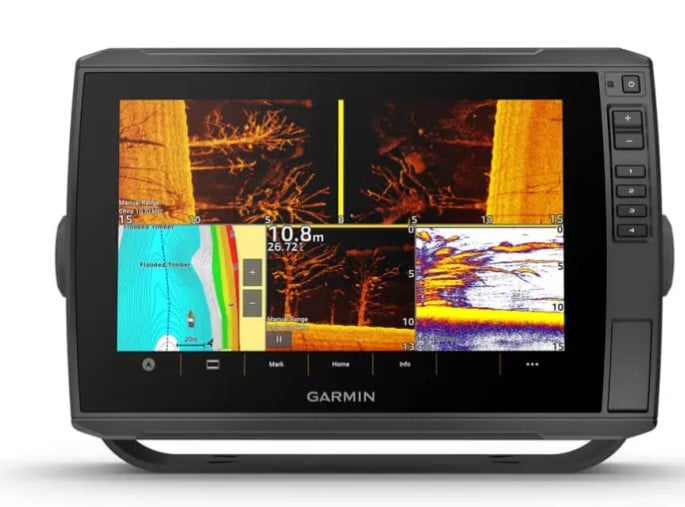

Thanks to the intense and high-contrast color ranges of the exploration probes, distinguishing objectives and structures has never been easier.
MAPS

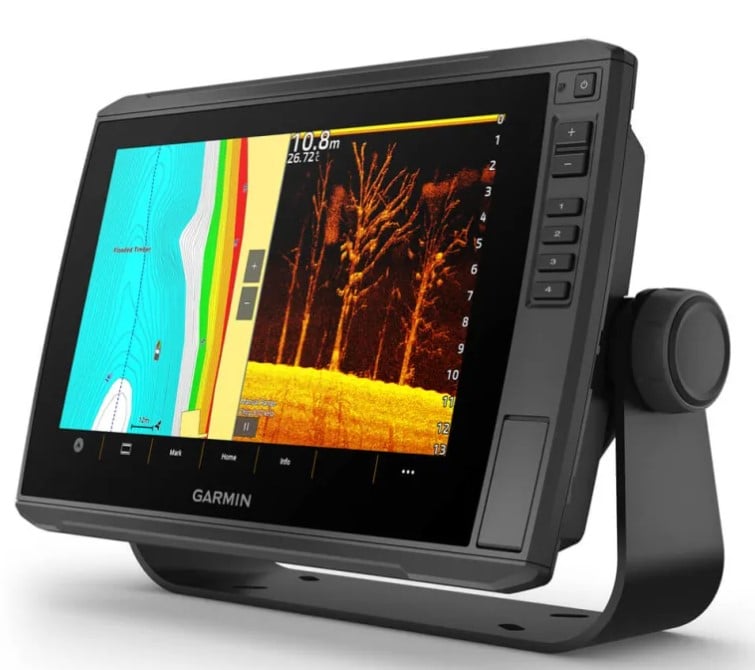

Renew your plotter with the optional Garmin Navionics+™ mapping or the advanced Garmin Navionics Vision+™, which includes built-in coastal and indoor content, access to daily updates, Auto Guidance+™ technology and much more.
WIRELESS NETWORKS
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 plotter on the boat, you can share information wirelessly, such as probe3 images, waypoints and routes, between them.
Specifications:
Physical and performance
| Screen size (Width/High) | 21.7 x 13.6 cm; 21.7 cm diagonally (8.5′′ x 5.4′′; 10′′ diagonally) |
| Power input | De 9 a 18 V de CC |
| Screen resolution (Width/High) | 1280 x 800 pixels |
| GPS | Yes |
| Dimensions of the unit (Width/High/Depth) | 29,5 x 19,5 x 9,8 cm (11,6″ x 7,7″ x 3,9″) |
| Receptor | 10 Hz |
| Classification of water resistance | IPX7 |
| Weight | 1,8 kg (4 lbs) |

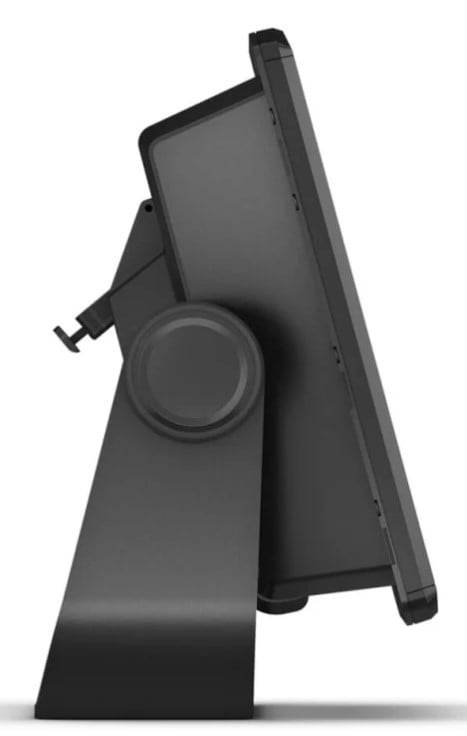

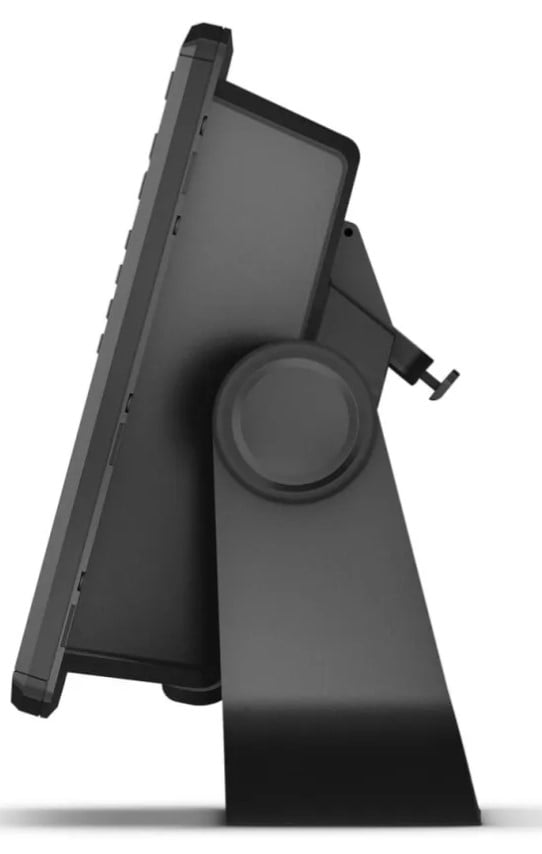

| Assembly options | On the surface or recessed |
| Type of screen | WXGA, IPS |
Maps and navigation
| Garmin Navionics+™ (costas) | No |
| Garmin Navionics Vision+™ | Yes |
| Supports data cards | 2 cards microSD |
| Garmin Navionics+ de interior y coast | No |
| Garmin Navionics+ (interior) | No |
| Rutas | 100 |
| Garmin Navionics+™ | Yes |
Characteristics
| Waypoints | 5000 |
| Navigation functions | Yes |
| Compatible with NMEA 0183 | No |
| Built-in receiver | Yes |
| Ports USB | No |
| TOPO 100K | Yes |
| SideVü | 260/455/800/1000/1200 kHz Integrated |
| Amite DSC (sends the position data to the VHF compatible with DSC) | Yes |
| Touch screen | Yes |
| LakeVü g3 Ultra | No |
| Compatible with NMEA 2000® | Yes |
| ActiveCaptain-yhteensopiva | Yes |
| Typical current consumption at 12 V DC | 2,3 A |
| Ports NMEA 2000® | 1 |
| Tide prediction | No |
| GLONASS | Yes |
| Track points | 50,000 |
| Panoptix™ sonar | Yes |

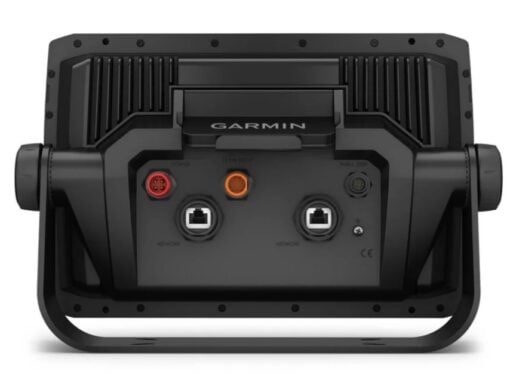

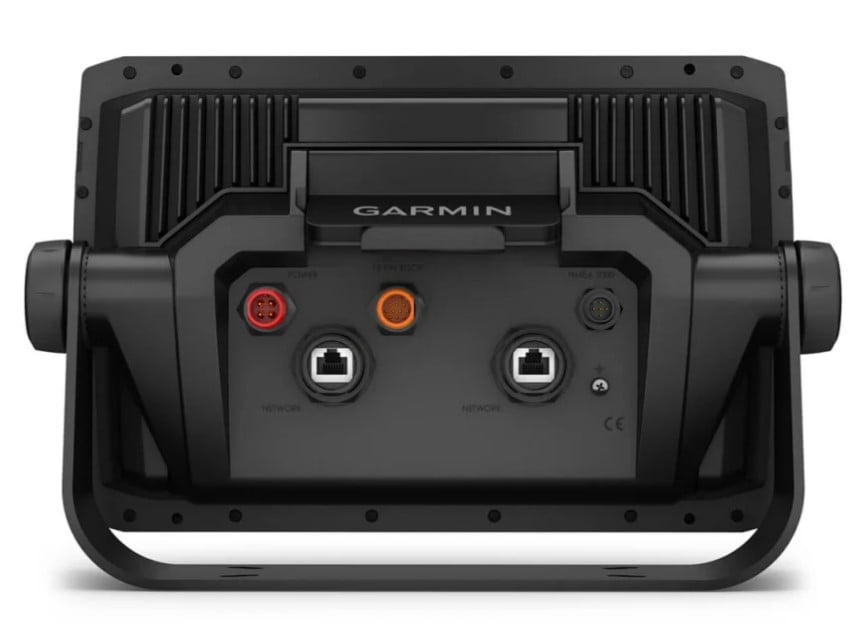

| Garmin Marine Network ports™ | 2 (Large connector) |
| LakeVü g3 | No |
| Compatible with WAAS | Yes |
| GSD™ Black Box -luotaimen tuki | No |
| Maximum current consumption at 12 V DC | 5 A |
| Compatible with Garmin SmartMode (customizable monitor default settings) | No |
| Auto ruta | No |
| Maximum electricity consumption at 10 V DC | 34 W |
| BlueChart g3 | Yes |
| Standard maps | Yes |
| LakeVü (interior) | No |
| Auto Guidance+ integrada | No |
| Show the probe | Yes |
| ANT+™ (Connectivity) | Yes |
| GCV™ Black Box -luotaimen tuki | No |
| BNC port for external antenna | No |
| Voice audio alerts | No |
| BlueChart g3 Vision | Yes |
| Garmin Wi-Fi® network (local connection) | Yes |
| Screen keys | Touch screen with keys |
| BeiDou | Yes |
| Garmin Quickdraw Contours | Yes |
| Bluetooth® calls | No |
| Supports AIS (tracks the position of the target boats) | Yes |
| Compatible with multi-band and multi-constellation GPS | Yes |
| Compatibility with raster cards | No |
| Compatibility with OneHelm™ | No |
| ClearVü | 260/455/800/1000/1200 kHz Integrated |
| Tracks | 50 tracks guardados |
| Wireless control | No |
| Admite radios compatibles con FUSION-Link™ | Yes |
| Galileo | Yes |
| LiveScope | Yes |
| Power output | 600 W |
| Ports for 12-pin transducer | 12-pin exploration probe |
| BlueChart® (coast) | No |
| Traditional probe (dual beam/frequency) | Integrated (one-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| Compatible with GRID™ (Garmin remote input device) | No |
Additional information
| Model | Without a transducer, With GT56UHD-TM transducer |
|---|---|
