Garmin System LiveScope™ XR

Name: Garmin System LiveScope™ XR
SKU: 010-02719
Availability: InStock

1.991,74 € – 2.643,80 €
You save

It was difficult to improve, but the extended distance of the LiveScope XR system has achieved it. This is the latest in LiveScope technology, now for coastal and open water fishing.

Probe module included

Clear

Total:

Request a Quote

SKU: 010-02719 Categories: Garmin, LiveScope
Brand: Garmin

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

It was difficult to improve, but the extended distance of the LiveScope XR system has achieved it. This is the latest in LiveScope technology, now for coastal and open water fishing.

LONG-RANGE VIEW

The Reverse Range Offset function uses more screen to show fish and structures up to 150 m in fresh water and 107 m in salt water.

SHORT-RANGE VIEW

The Compress Range function gives you a clear view of the boat, while not losing sight of the targets that are further away.

REAL-TIME IMAGES

The real-time probe guarantees maximum accuracy in your live images.

IMAGE STABILIZER

An integrated stabilization system keeps the image of the probe fixed on your compatible plotter, even in coarse sea conditions.

BRIGHTLY COLORED PALETTES

Choose from seven bright colors, such as aquamarine, Caribbean and lava, among others, to see the fish and structures with the highest level of contrast and clarity.

FORWARD MODE

Now you can get ahead of the boat and observe what is happening in real time.

DOWNWARD MODE

Explore the live views of the activity that takes place under the boat in more depth.

PERSPECTIVE MODE

Get a view of your perspective on water to see what happens underwater.

Specifications:

Physical And Performance Characteristics
BEAM WIDTH	20° x 135°
CABLE LENGTH	6m
NUMBER OF SIDEBURNS	21

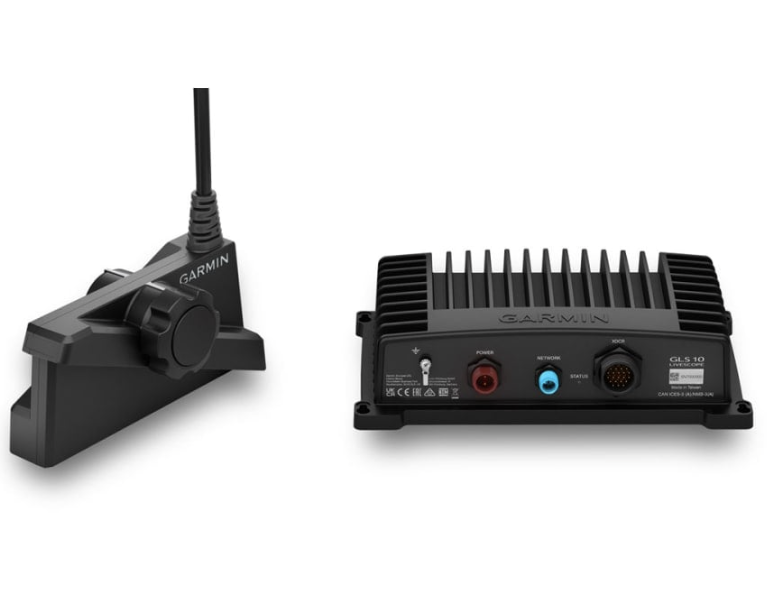

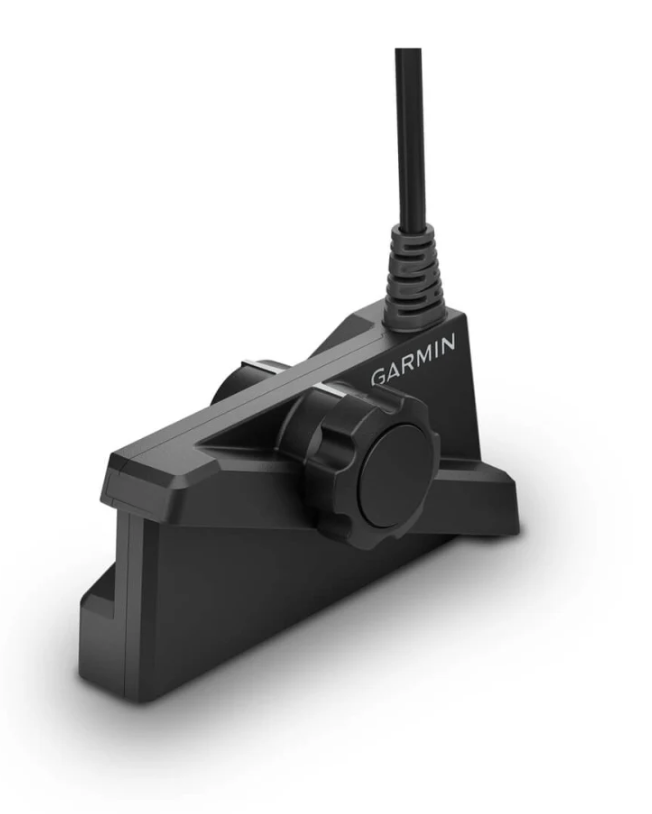

DIMENSIONS OF THE UNIT (WIDTH/HEIGHT/DEPTH)	GLS 10 black box probe: 24.5 x 14.9 x 6.5 cm (9.7′′ x 5.9′′ x 2.6′′); LVS62 transducer: 20.8 x 10.1 x 7.0 cm (8.20′′ x 3.98′′ x 2.76′′)
WEIGHT	GLS 10 black box probe: 2.0 kg (4.3 lb) LVS62 transducer with cable: 1.78 kg (3.92 lb) LVS62 cableless transducer: 1.21 kg (2.66 lb)
WATER RESISTANCE CLASSIFICATION	IPX7
TEMPERATURE RANGE	LVS62 transducer: operation: from 0 °C to 40 °C

Electric
FEEDING INPUT	10-32 V
ELECTRICITY CONSUMPTION	Typical 21 W; máx. 58 W
FUSE	7,5 A
SAFETY DISTANCE FROM THE COMPASS	0,18 m (7″)

Probe Specifications And Functions
FREQUENCY	282 – 522 kHz
TRANSMISSION POWER	500 W
MAXIMUM DEPTH	Fresh water: downwards and forwards: 152.0 m (500′) Salt water: down and forward: 106.0 m (350′)
TYPE OF PROBE	Live
SEPARATION OF OBJECTIVES AT 100′	22″
SUPPORT WITH PERSPECTIVE INCLUDED	Yes
