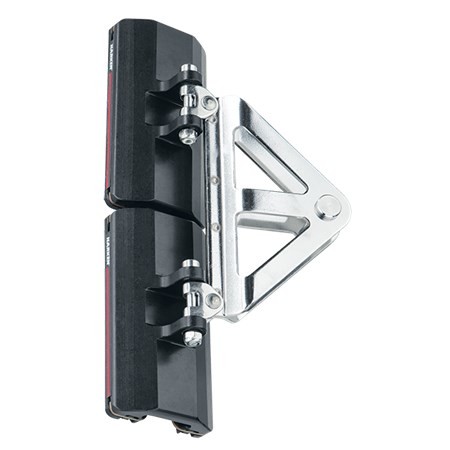

Harken 22mm CB Headboard Car Assembly

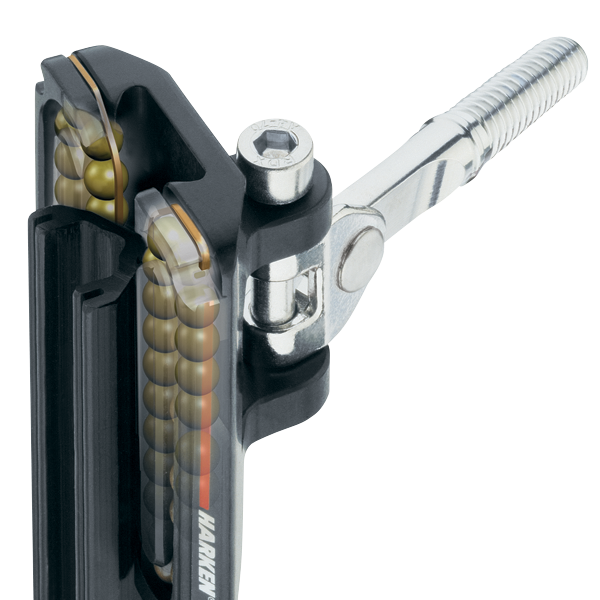

A Harken Battcar system along with full-length battens helps raise, douse, and reef with ease and acts as extra crew if you’re sailing shorthanded. Battcar systems outperform in-mast or in-boom furling, cost less, and you don’t need to recut your sail. The one-piece solid aluminum construction is lightweight and strong. The free-rolling ball bearing cars let you hoist and reef the main quickly on all points of sail. Length (mm) 213 mm
Length (in) 8 3/8 in
Width (mm) 57 mm
Width (in) 2 1/4 in
Weight (g) 518 g
Weight (oz) 18 oz
Maximum headboard thickness (mm) 14 mm
Maximum headboard thickness (in) 9/16 in
Maximum sail area – monohull (m²) 56 m²
Maximum sail area – monohull (ft²) 600 ft²
Maximum sail area – multihull (m²) 46 m²
Maximum sail area – multihull (ft²) 500 ft²
Maximum working load (kg) 725 kg
Maximum working load (lb) 1600 lb
A (mm) 213 mm
A (in) 8 3/8 in
B (mm) 35 mm
B (in) 1 3/8 in
C (mm) 57, 73* mm
C (in) 2 1/4, 2 7/8* in
D (mm) 102 mm
D (in) 4 in
E (mm) 5 mm
E (in) 3/16 in

Brand	HARKEN
SKU	3811
GTIN	097653144793
Brand	Harken
