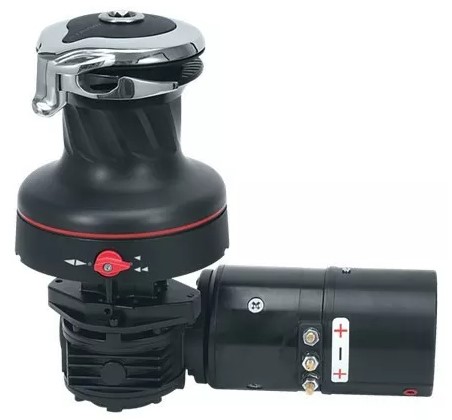

Harken 40 Electric Self-Tailing Rewind™ Radial Aluminum Winch — Reverse Speed, 12V
Original price was: 4.496,39 €.4.046,69 €Current price is: 4.046,69 €.
You save
Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control. Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control. Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.
Specifications:
| Height (mm) | 175 mm |
| Height (in) | 6 7/8 in |
| Weight (kg) | 14.6 kg |
| Weight (lb) | 32.2 lb |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Number of fasteners | 5 |
| Fasteners (mm) | M6 SH mm |
| Fasteners (in) | 1/4 SH in |
| Fastener circle (mm) | 123 mm |
| Fastener circle (in) | 4 7/8 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 80 mm |
| Drum Ø (in) | 3 1/8 in |
| Base Ø (mm) | 157 mm |
| Base Ø (in) | 6 3/16 in |
| Line entry height (mm) | 82 mm |
| Line entry height (in) | 3 1/4 in |
| Gear ratio – 1 | 2.13 |
| Gear ratio – 2 | 6.28 |
| Power ratio – 1 | 13.50 |
| Power ratio – 2 | 39.90 |
| Voltage (V) | 12 |
| E (mm) | 43 mm |
| E (in) | 1 3/4 in |
| F (mm) | 155 mm |
| F (in) | 6 1/8 in |
| G (mm) | 280 mm |
| G (in) | 11 in |
| Material | Aluminum |
| Available power | Electric horizontal 12V |
