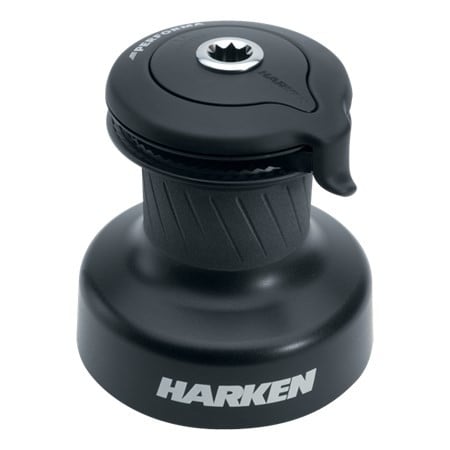

Harken 46 Self-Tailing Performa™ Winch — 2 Speed

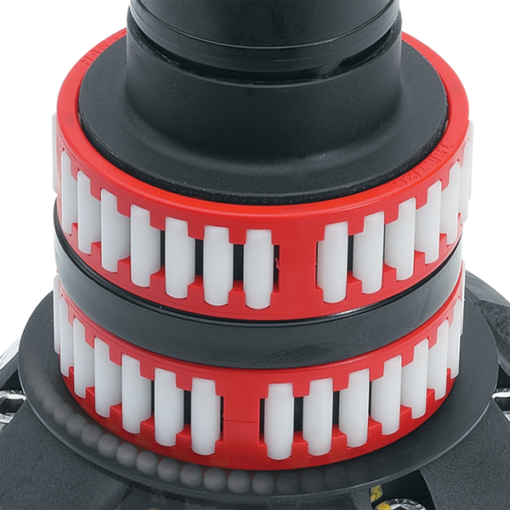

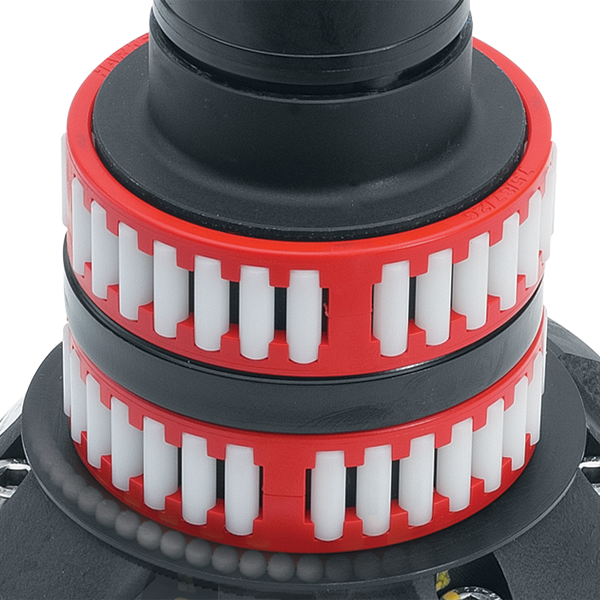

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Configuration Self-tailing
Speed 2
Drum Ø (mm) 100 mm
Drum Ø (in) 3 15/16 in
Base Ø (mm) 184 mm
Base Ø (in) 7 1/4 in
Height (mm) 202 mm
Height (in) 7 15/16 in
Weight (kg) 5.2 kg
Weight (lb) 11.5 lb
Line entry height (mm) 90 mm
Line entry height (in) 3 9/16 in
Minimum line Ø (mm) 8 mm
Minimum line Ø (in) 5/16 in
Maximum line Ø (mm) 14 mm
Maximum line Ø (in) 9/16 in
Fastener circle (in) 5 7/8 in
Fastener circle (mm) 150 mm
Fasteners (mm) M8 SH mm
Fasteners (in) 5/16 SH in
Number of fasteners 5
Gear ratio – 1 2.30
Gear ratio – 2 9.17
Power ratio – 1 11.70
Power ratio – 2 46.50

MPN	46.2STP
GTIN	097653248842
Brand	Harken
SKU	HKN-46.2STP
