Harken-600 CLR Hydraulic Aluminum Mooring Winch
Original price was: 7.405,20 €.6.664,69 €Current price is: 6.664,69 €.
You save
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information

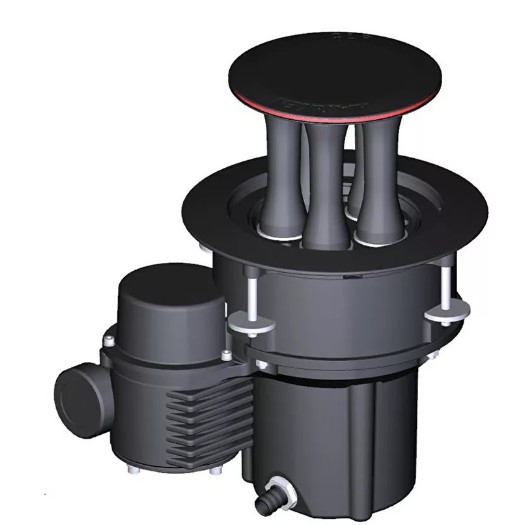

The Harken® CLR™ mooring winch is a flush-stowing, deck-mounted powered winch for both sail and power yachts featuring geometry and mechanical characteristics never before seen. No other retracting, flush-mounted winch has offered the power-for-size ratio offered by the CLR. It stows completely belowdeck and occupies 40% less horizontal and less than 50% of the vertical space required by the previous market leaders. The CLR weighs just 33% of its competition while delivering comparable mechanical advantage. This compact form makes it possible for yachts to mount two CLR winches at the stern quarters and one in the bow. Together, three CLRs can reduce the need for engine and thruster power while helping crews moor stern-to-dock. The CLR employs unprecedented winch drum geometry. Five aluminum columns rotate together around a center axis. Working together, they create a very light drum that provides substantially more line-holding power and low-speed torque than would be available using a traditional drum. The CLR offers internal LED lights at the bottom of each column for use in low-light mooring situations. 600 kg (1322.8 lb) max holding load for boats from 13.7 m -18.2 m (44.9′ – 59.7′).
Specifications:
| Weight (kg) | 14.7 kg |
| Weight (lb) | 32.4 lb |
| A (mm) | 250 mm |
| A (in) | 9 13/16 in |
| C (mm) | 110 mm |
| C (in) | 4 5/16 in |
| D (mm) | 200 mm |
| D (in) | 7 7/8 in |
| E (mm) | 144 mm |
| E (in) | 5 11/16 in |
| F (mm) | 94 mm |
| F (in) | 3 11/16 in |
| G (mm) | 318 mm |
| G (in) | 12 17/32 in |
| H (mm) | 355 mm |
| H (in) | 14 in |
| Available power | Hydraulic |
| Boat length (m) | 13.7 – 18.3 m |
| Boat length (ft) | 45 – 60 ft |
| Power (watts) | 900 W |
| Minimum line Ø (mm) | 12 mm |
| Minimum line Ø (in) | 1/2 in |
| Maximum line Ø (mm) | 18 mm |
| Maximum line Ø (in) | 11/16 in |
| Maximum line speed (m/min) | 18 m/min |
| Maximum line speed (ft/min) | 59 ft/min |
| Maximum holding load (kg) | 600 kg |
| Maximum holding load (lb) | 1320 lb |
| Maximum pulling load (kg) | 300 kg |
| Maximum pulling load (lb) | 660 lb |
| B minimum (mm) | 15 mm |
| B minimum (in) | 5/8 in |
| B maximum (mm) | 75 mm |
| B maximum (in) | 2 15/16 in |
