12.764,89 € Original price was: 12.764,89 €.11.488,39 €Current price is: 11.488,39 €.
You save

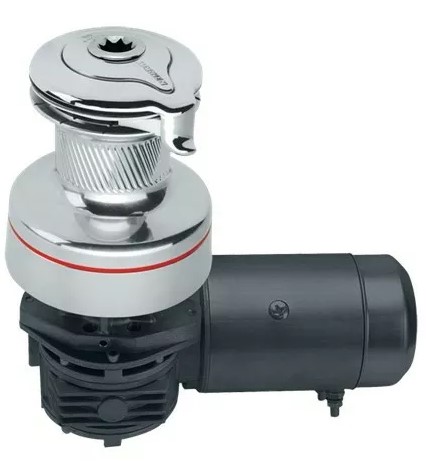

Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Standard Delivery usually 3-7 days.Express Delivery usually 2-4 days.
If you find a cheaper price in the next 72 hours we will match it.
Claim your initial 5% discount on your first order by registering on the SailRACE community.
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Height (mm) | 264 mm |
Height (in) | 10.3/8 in |
Maximum line Ø (mm) | 18 mm |
Maximum line Ø (in) | 11/16 in |
Number of fasteners | 6 |
Fasteners (mm) | M8 SH mm |
Fasteners (in) | 5/16 SH in |
Fastener circle (mm) | 205 mm |
Fastener circle (in) | 8 1/8 in |
Minimum line Ø (mm) | 10 mm |
Minimum line Ø (in) | 3/8 in |
Configuration | Self-tailing |
Speed | 3 |
Drum Ø (mm) | 130 mm |
Drum Ø (in) | 5 1/8 in |
Base Ø (mm) | 240 mm |
Base Ø (in) | 9 7/16 in |
Weight of Winch and Motor (kg) | 29 |
Weight of Winch and Motor (lb) | 64 |
Motor weight (kg) | 10.8 kg |
Motor weight (lb) | 23.9 lb |
Line entry height (mm) | 115 mm |
Line entry height (in) | 4 1/2 in |
Gear ratio – 1 | 2.30 |
Gear ratio – 2 | 5.70 |
Gear ratio – 3 | 18.50 |
Power ratio – 1 | 9.00 |
Power ratio – 2 | 22.20 |
Power ratio – 3 | 72.00 |
Voltage (V) | 12 |
E (mm) | 69 mm |
E (in) | 2 3/4 in |
F (mm) | 181 mm |
F (in) | 7 1/8 in |
G (mm) | 244 mm |
G (in) | 9 5/8 in |
Material | All-Chrome |
Available power | Electric horizontal 12V |
