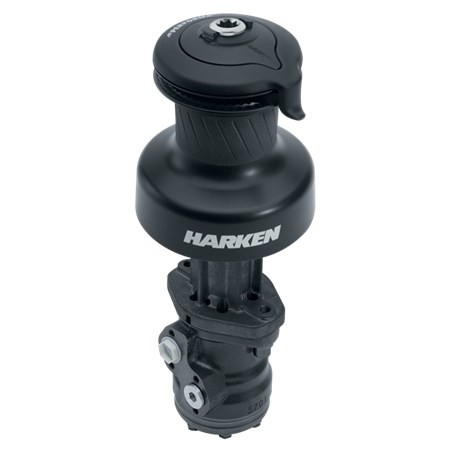

Harken 70 Hydraulic Self-Tailing Performa™ Winch — 2 Speed, Vertical

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Hydraulic Performa winches let you trim any size sail with the push of a button. Configuration Self-tailing
Speed 2
Drum Ø (mm) 130 mm
Drum Ø (in) 5 1/8 in
Base Ø (mm) 240 mm
Base Ø (in) 9 7/16 in
Height (mm) 256 mm
Height (in) 10 1/16 in
Weight (kg) 11.3 kg
Weight (lb) 24.9 lb
Weight of Winch and Motor (kg) 18.8
Weight of Winch and Motor (lb) 41.5
Motor weight (kg) 7.5 kg
Motor weight (lb) 16.6 lb
Line entry height (mm) 115 mm
Line entry height (in) 4 1/2 in
Minimum line Ø (mm) 10 mm
Minimum line Ø (in) 3/8 in
Maximum line Ø (mm) 15 mm
Maximum line Ø (in) 5/8 in
Fastener circle (in) 8 1/8 in
Fastener circle (mm) 205 mm
Fasteners (mm) M8 SH mm
Fasteners (in) 5/16 SH in
Number of fasteners 6
Gear ratio – 1 5.7
Gear ratio – 2 18.5
Power ratio – 1 22.2
Power ratio – 2 72
Racing disconnect rod B70PDR
Hydraulic L (mm) 234 mm
Hydraulic L (in) 9 1/4 in
Hydraulic N (mm) 130 mm
Hydraulic N (in) 5 1/8 in

MPN	70.2STHP
GTIN	097653603276
Brand	Harken
SKU	HKN-70.2STHP
