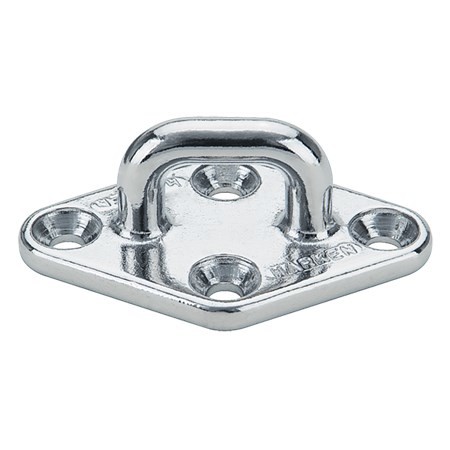

Harken 79mm Diamond Padeye

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together. A (mm) 79 mm
A (in) 3 1/8 in
B (mm) 51 mm
B (in) 2 in
C (mm) 60 mm
C (in) 2 3/8 in
D (mm) 32 mm
D (in) 1 1/4 in
E (mm) 30 mm
E (in) 1 3/16 in
F (mm) 14 mm
F (in) 9/16 in
G (mm) 22 mm
G (in) 7/8 in
Weight (g) 135 g
Weight (oz) 4.75 oz
Maximum Working Load – angle 1 (kg) 1770 kg
Maximum Working Load – angle 1 (lb) 3800 lb
Maximum Working Load – angle 2 (kg) 2270 kg
Maximum Working Load – angle 2 (lb) 5000 lb
Maximum Working Load – angle 3 (kg) 1950 kg
Maximum Working Load – angle 3 (lb) 4300 lb
Breaking load – angle 1 (kg) 3540 kg
Breaking load – angle 1 (lb) 7800 lb
Breaking load – angle 2 (kg) 4535 kg
Breaking load – angle 2 (lb) 10000 lb
Breaking load – angle 3 (kg) 3900 kg
Breaking load – angle 3 (lb) 8600 lb
Fasteners (mm) 6 FH mm
Fasteners (in) 1/4 FH in

Brand	HARKEN
SKU	688
GTIN	097653011927
Brand	Harken
