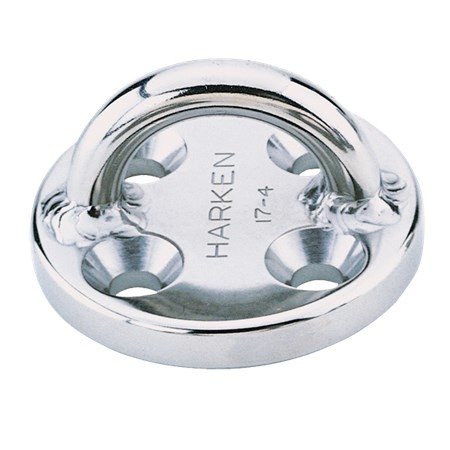

Harken 95mm Round Padeye

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 627, 629, and 648 padeyes are 17-4 PH stainless. A (mm) 95 mm
A (in) 3 3/4 in
C (mm) 44 mm
C (in) 1 3/4 in
D (mm) 48 mm
D (in) 1 7/8 in
E (mm) 51 mm
E (in) 2 in
F (mm) 27 mm
F (in) 1 1/16 in
G (mm) 44 mm
G (in) 1 3/4 in
Weight (g) 652 g
Weight (oz) 23 oz
Maximum Working Load – angle 1 (kg) 9070 kg
Maximum Working Load – angle 1 (lb) 20000 lb
Maximum Working Load – angle 2 (kg) 5440 kg
Maximum Working Load – angle 2 (lb) 12000 lb
Maximum Working Load – angle 3 (kg) 6350 kg
Maximum Working Load – angle 3 (lb) 14000 lb
Breaking load – angle 1 (kg) 18140 kg
Breaking load – angle 1 (lb) 40000 lb
Breaking load – angle 2 (kg) 10890 kg
Breaking load – angle 2 (lb) 24000 lb
Breaking load – angle 3 (kg) 12700 kg
Breaking load – angle 3 (lb) 28000 lb
Fasteners (mm) 12 FH mm
Fasteners (in) 1/2 FH in

Brand	HARKEN
SKU	629
GTIN	097653011514
Brand	Harken
