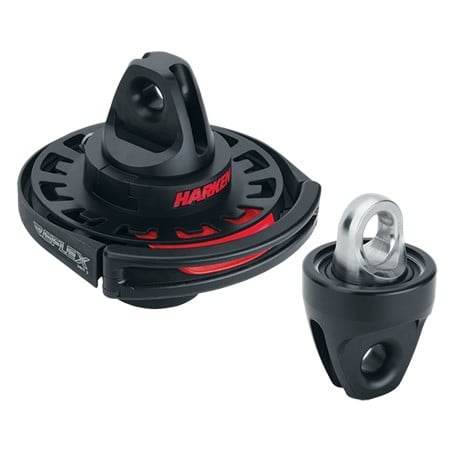

Harken Unit 3 Reflex™ Furling System — Code Zero

The Harken Reflex furling system is a game changer! The previous generation of free-flying sail furlers often resulted in partial or uneven furling. Patented Harken Reflex furlers provide sailors confidence that their code zero sails will furl with speed and control. The result? Sailors use downwind sails more often—even when sailing shorthanded. The compact drive unit is easier to handle than other designs. Pull the furling line and the drive unit reacts reflexively to rotate the torsion cable, immediately transferring torque to the head swivel without unwanted corkscrewing delaying the response. The head swivel reacts instantly, spinning the sail smoothly and completely from top to bottom for an even roll-up and super-tight wrap. The furled spinnaker lowers easily to the deck, ready for the next hoist. The quick-release modular T-fitting allows single drive unit to handle multiple sails. Includes 3:1 threaded adapter for attachment to bowsprit. Sail type Code zero
Boat length – monohull (m) 12 – 16.5 m
Boat length – monohull (ft) 39 – 54 ft
Boat length – multihull (m) 11 – 15 m
Boat length – multihull (ft) 36 – 50 ft
Maximum sail area: monohull (m²) 158 m²
Maximum sail area: monohull (ft²) 1700 ft²
Maximum sail area: multihull (m²) 139 m²
Maximum sail area: multihull (ft²) 1500 ft²
Line Ø (mm) 10 mm
Line Ø (in) 3/8 in
Maximum working load (kg) 4500 kg
Maximum working load (lb) 10000 lb
Includes Drive unit, head swivel, Reflex fixed tack terminal, 2:1 threaded adapter

Brand	HARKEN
SKU	7363.10
GTIN	097653284895
Brand	Harken
