iKonvert | Convertidor NMEA 2000 USB

A bidirectional NMEA2000 USB converter compatible with any computer.

Features:

iKonvert is a flexible bidirectional NMEA 2000 USB converter. It is available in two versions: NMEA 2000 to NMEA 0183 and NMEA 2000 to USB. This NMEA 2000 USB converter allows navigation software to receive NMEA 2000 data and can also receive raw NMEA 2000 data for more detailed navigation data analysis and control.

All popular navigation software for PC/Mac/Linux only reads NMEA 0183 data, so iKonvert provides a simple, reliable, and affordable way to access navigation data from an NMEA 2000 network. iKonvert converts NMEA 2000 data to NMEA 0183 and then transmits it to the computer via USB interface. When setting up iKonvert, simply configure the DIP switches to select the desired data mode. iKonvert will extract the selected data from the NMEA 2000 network and provide it to your navigation software in the required format and baud rate (raw data mode for developers and marine electronics installers, or normal mode for navigation software).

For developers creating new applications or decoding NMEA 2000 data, iKonvert can be easily set to “Raw Data Mode”, allowing data to be read and written using a simple serial data format. For more information, visit our GitHub page.

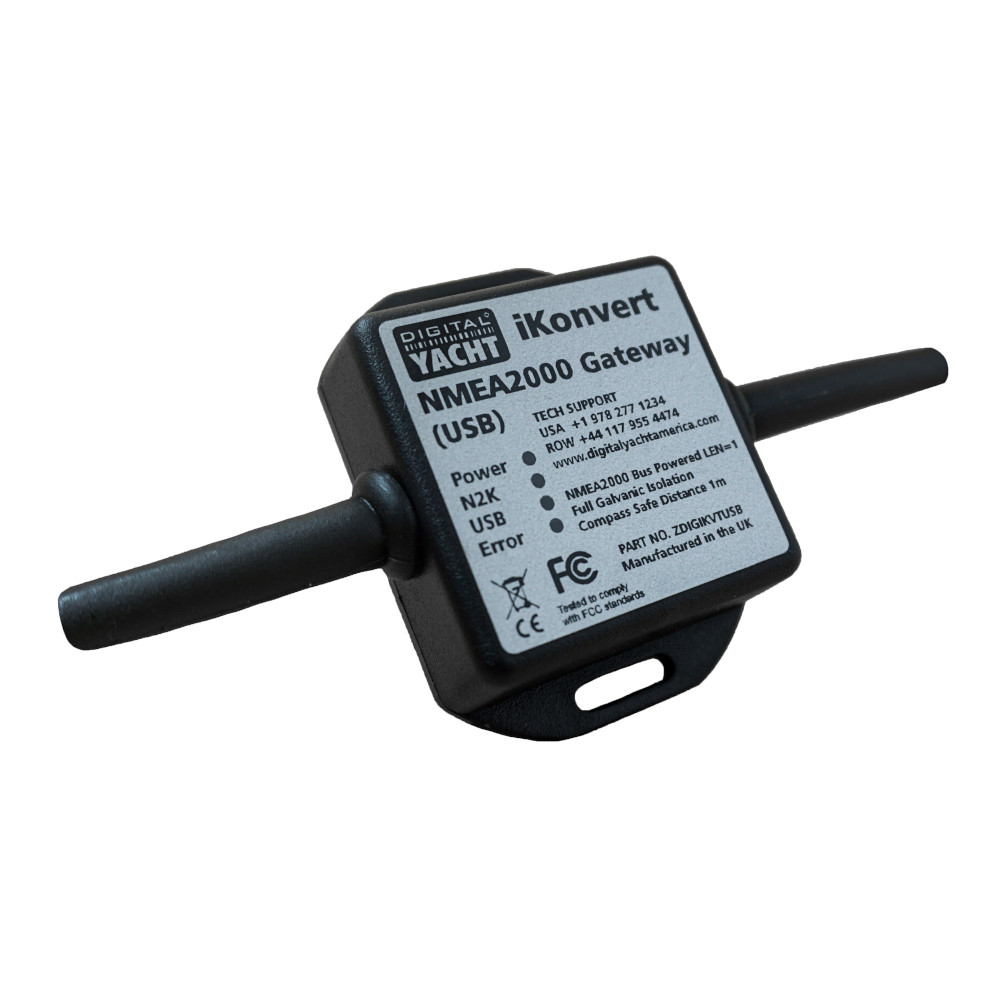

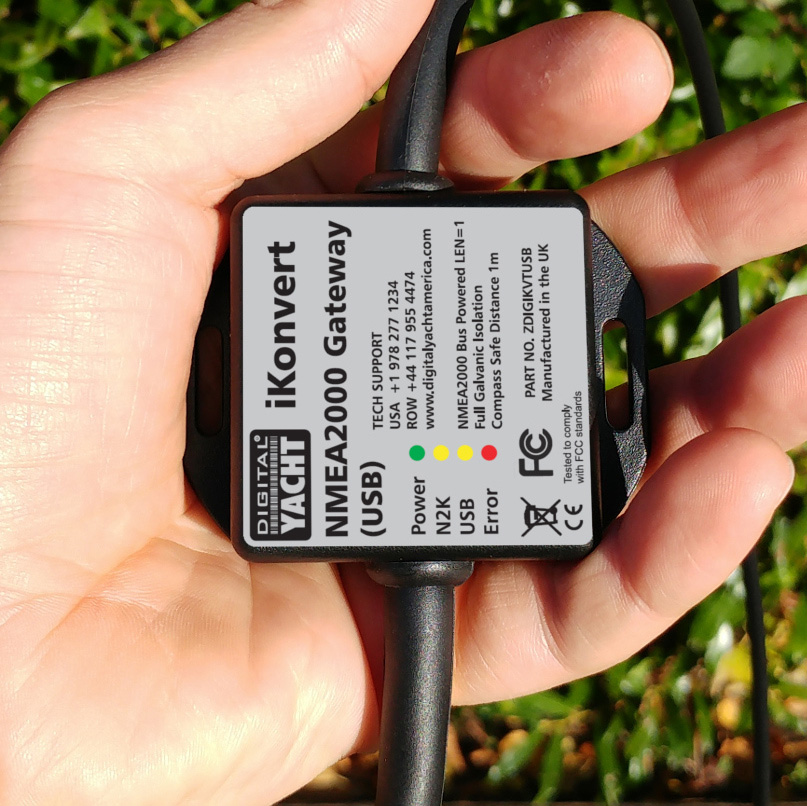

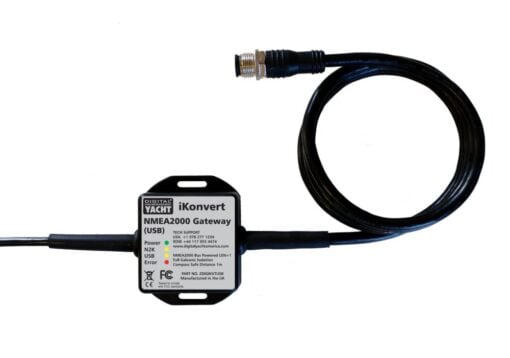

The Digital Yacht iKonvert is a compact and easy-to-install NMEA 2000 USB converter, featuring a built-in USB cable and a standard NMEA 2000 micro male cable. It is powered directly from the NMEA 2000 network and provides complete galvanic isolation between the USB interface and the NMEA 2000 network. iKonvert operates at a baud rate of 230 KB in “RAW mode” and at 4.8 KB, 38.4 KB, or 115 KB in NMEA 0183 conversion mode. All modes can be selected simply by using the DIP switches on the device, without the need for additional configuration software.

The USB interface of iKonvert is compatible with all operating systems (Windows / Mac / Linux / Android). The NMEA 0183 version of iKonvert makes it easy to connect NMEA 2000 and NMEA 0183 networks.

Specifications:

• Bidirectional NMEA 2000 USB Converter
• Powered by the NMEA 2000 network
• High-speed USB 2.0 interface (FTDI)
• Compatible with Windows, OSX, Linux, and Android
• Can be configured to operate in “Raw Data Mode” (binary PGN data)
• Converts all navigation data
• Integrated USB cable (Type A) and micro NMEA 2000 (male)
• Easy data mode configuration using DIP switches
• Full galvanic isolation
