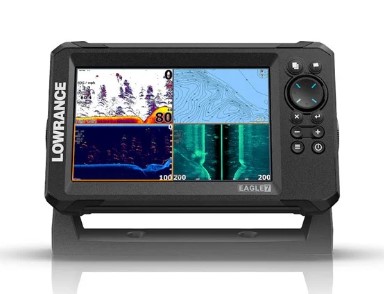

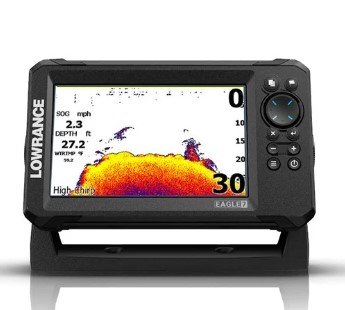

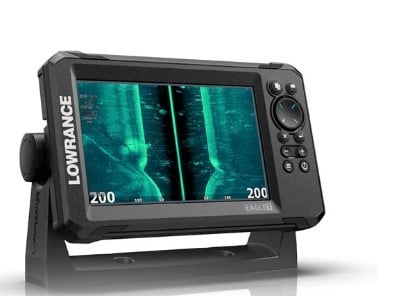

SplitShot™ HD Get the best underwater views below the boat with SplitShot HD, featuring the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging™.

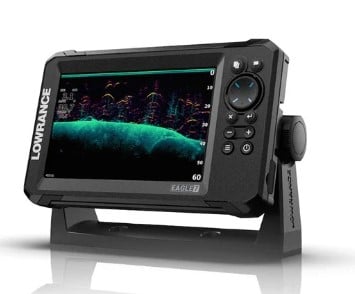

FishReveal™Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.
AutotuningSimple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.
DETAILED CHARTING

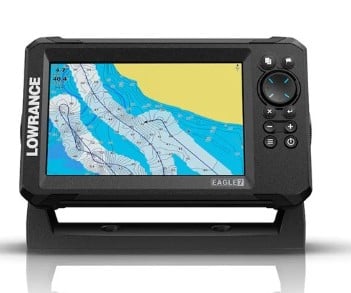

WORLDWIDE BASEMAPPre-loaded with worldwide basemap you have the options to upgrade to CMAP® DISCOVER™ or other charting providers. With Eagle, you have the options you need to discover and navigate to the best fishing spots, how you want to.
UPGRADE TO C-MAP DISCOVER All you need to make the most of your time on the water with wide coverage of inland and coastal areas in highly detailed and accurate charts. See things your way with C-MAP®.
GENESIS LIVEKnow your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.
DESIGNED FOR FISHING
IPS SCREENSSee clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

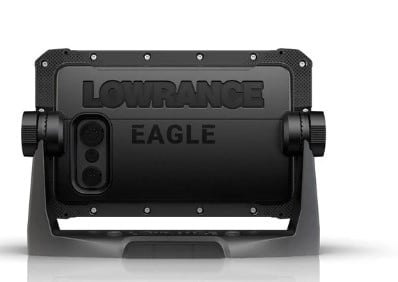

NEW CONNECTOR SYSTEMSet up in an instant with our improved twist-locking connector, promising an easy and reliable installation and removal every time.
ONE-YEAR WARRANTY Our priority is to give you superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind thanks to our one-year warranty guarantee.
Details:
- Enhanced SplitShot™ HD Transducer with Autotuning sonar
- Worldwide basemap
- IPS screen, viewable from all angles, even in polarized glasses
- New reliable twist-lock connector system for easy installation in any boat or kayak
- SD card slot for software updates, Genesis Live recording and charting add-ons.
- See fish hiding in cover with FishReveal™ mode
- Increase contrast and viewability with all-new Imaging color palettes
Specifications:
Display
| Backlight Color | Pure white LED |
|---|---|
| Resolution | 800 x 480 |
| Screen Brightness | 1000 NITS |
| Size and Type | 7″ IPS Display |
| Viewing Angles | 80° top/bottom, 80° left/right |
Electrical
| Power Consumption, max. | 550 mA @ 12 V DC with backlight on full |
|---|---|
| Power Consumption, min. | 250 mA @ 12 V DC with backlight off |
| Power Consumption, typical | 550 mA @ 12 V DC with backlight on full |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 12v DC (10.8-17VDC) |
| Humidity | 60°C, 95% relative humidity (RH) for 48 hours |
Environment
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
|---|---|
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Waterproof rating | IPX7 with card door closed |
GPS
| Correction | SBAS |
|---|---|
| Time to First Fix | 45s |
MFD
| Cartography included | Worldwide basemap chart |
|---|---|
| Cartography supported | C-MAP® DISCOVER™. |
| External Storage | 1 slot (microSD® 32 GB maximum) |
| Waypoints, Routes, Tracks | 3000 Waypoints 100 Routes 100 Trails |
| Compass Safe Distance – Metric, imperial | 12″ (300mm) |
Physical
| Dimensions (W x H x D) | 225.9 mm (8.89″) x 139.8 mm (5.5″) x 88.5 (3.48) |
|---|---|
| Mounting Type | Gimbal bracket or dash mount |
| Weight | 0.67 kg (1.48 lb) |
Other
| Warranty Period | 1 Year + 4 additional years of upgrade options totaling 5 years |
|---|---|
| Interface | Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight |
