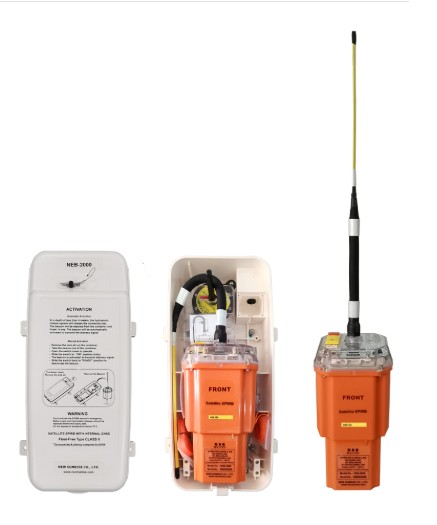

NEB-2000 AIS EPIRB

Features

NSR’s new generation of AIS EPIRB:

– Meet the latest IMO regulation – IMO MSC.471 (101).

– Built in GNSS receiver and AIS transmitter.

– Creative design for easy operation.

– Special lanyard for hand-free carry.

– Automatic power cut when test completed.

– Multiple protection to avoid false alert.

– Lower power consumption for longer working hours.

– Automatic release device activated underwater 4 meters.

– Easily coding/reading user data with infrared communication technology.

– 406MHz transmission together with 121MHz.homing & AIS transmitter.

– DNV type approval.

– CCS type approval.

– RS type approval.

– VR type approval.

Specifications:

General
Model:	NEB-2000
Case Material:	Special ABS+PC
Color:	High Visibility Orange
Watertight:	At a depth of 10m for at least 5 min
Buoyant:	Yes
Deployment:	Automatic hydrostatic release or Manual switch control
Accessories:	Hydrostatic Release Unit Buoyant lanyard Lanyard for hand-free carry
Physical
Weight:	1.45 kg (Beacon), 1.6 kg (Container)
Size:	116 (W)×710 (H)×100 (D) mm (Beacon), 220(W)×415(H)×144(D) mm (Container)
406 MHz Transmitter
Frequency:	406.031MHz±1kHz
Output Power:	5W
AIS Transmitter
Frequency:	AIS1 (161.975 MHz), AIS2 (162.025 MHz)
Output Power:	1 W
121.5 MHz Homer
Frequency:	121.5MHz
Output Power:	50mW
GNSS Receiver
Type:	Built-in GNSS antenna
System Supported:	GPS, BDS, Glonass, Galileo
Battery
Type:	NBT400
Total Voltage Rating:	14.4 V (4ea x 3.6V each)
Storage:	Up to 9 years (see Note)
Operating:	≥48hrs. (-20℃)
Hydrostatic Release Unit
Type	NHR-100
Storage:	Up to 3 years (max 2 years onboard)
Environment
Operating Temperature:	-20℃ ～ +55℃
Storage Temperature:	-40℃ ～ +70℃
Automatic Release Depth:	4 meters max (13 feet)
