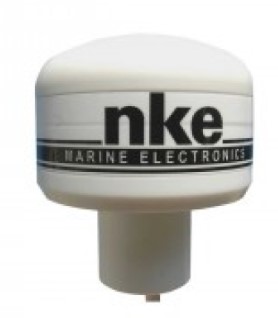

NKE External passive GPS antenna for AIS transponder

Name: NKE External passive GPS antenna for AIS transponder
SKU: 98-60-518
Price: 115.7 EUR
Availability: InStock

Original price was: 130,00 €.Current price is: 115,70 €.
You save

SKU: 98-60-518 Category: NKE Marine Electronics

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

Low consumption, light weight and compact

The nke AIS class B transponder complies with ISAF rules for offshore races Lavel 1 and 2.

It features an internal GPS antenna, an NMEA 0183 output (for plotters) and a USB output for PC. All AIS data can be displayed on your PC, your plotter or your autopilot display.

Specifications

Dimensions: 140 x 100 x 42 mm (L x w x H)
Weight: 250 gr
Consumption: 170 mA to 12CCV
GPS receiver (internal): complies with CEI 61108-1. 50 channels
Interfaces: USB output, NMEA 0183 output, NMEA 0183 and NMEA 2000 input
VHF transmitter: x 1 ; x 2
Protection: IP7
Led indicators: Power, TX inactive time, error, mode, silence, status.
The VHF is not supplied. The decision to use 1 or 2 antennas for AIS and VHF is up to each user, and often related to boat class rules, when racing.

Features

This transponder sends and receives AIS messages. The MMSI is programmed with a PC (software is supplied).

With the GyropilotGraphic: by adding the nke AIS processor to this transponder, you can set up CPA and TCPA alarms. The processor will calculate collision routes and display hazardous targets with their ID (MMSI / Name), bearing, distance, CPA and TCPA.

With the Multigraphic: the Multigraphic can process the data itself. CPA and TCPA alarms can be defined from the Multigraphic. A dedicated AIS page displays all the targets in the surrounding.
