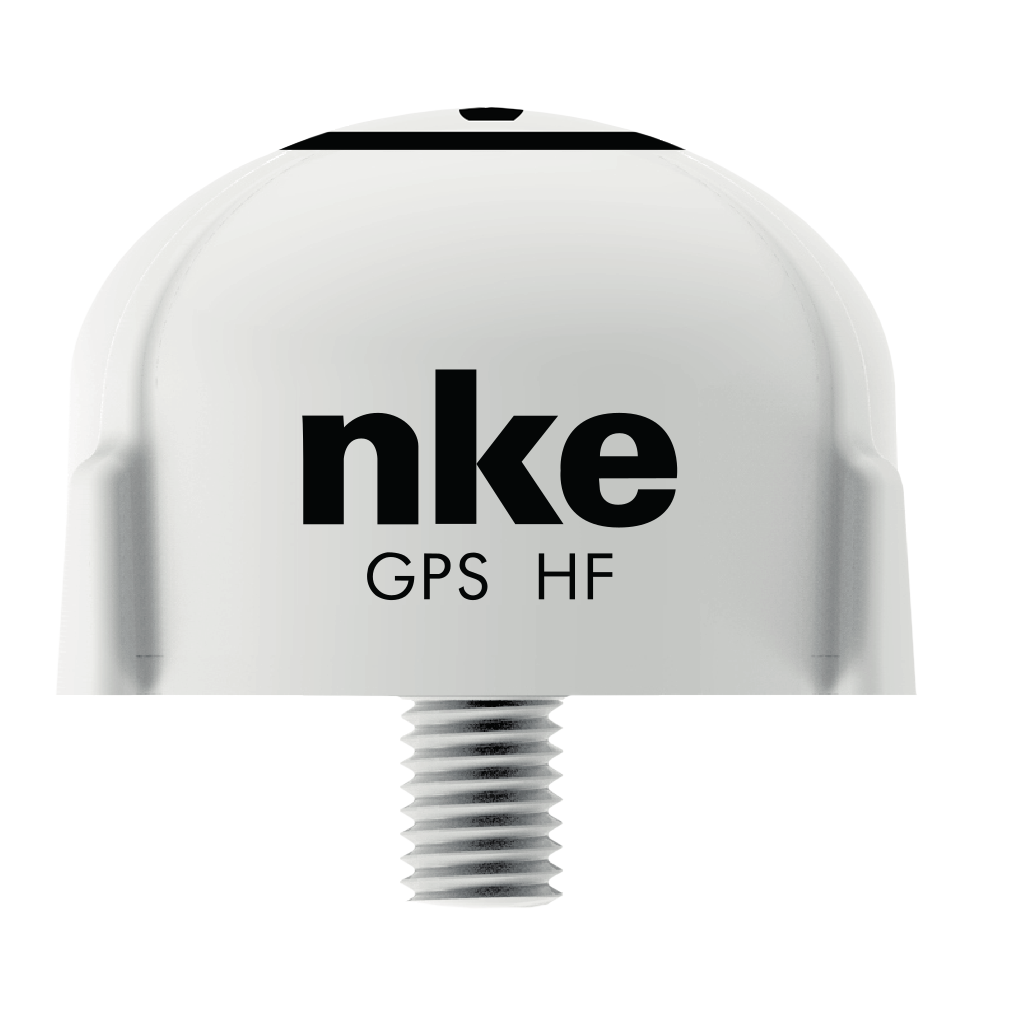

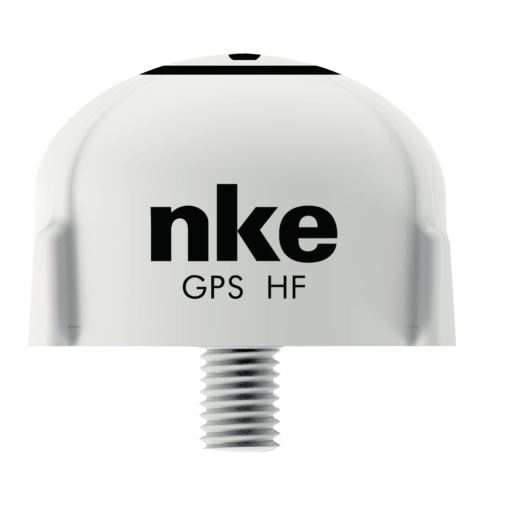

NKE High Frequency GPS

Name: NKE High Frequency GPS
SKU: 90-60-397
Price: 636.35 EUR
Availability: InStock

Original price was: 715,00 €.Current price is: 636,35 €.
You save

SKU: 90-60-397 Category: Sensors

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

A new driving mode that improves handling: real wind mode melts. A very responsive bottom speed.

Specifications

GPS Type	65 channels GPS
Output	TOPLINE and NMEA 183
Power supply	12v DC when connected to TOPLINE bus and 6-33v for any other intallation
Consumption	50 mA to 12V DC
Dimensions	720mm x 50mm
Mounting	on deck or rail with 1 ¼’ standard thread mounting bracket
Bus cable length	10 metres without connector
Weight	270g without cable
Waterproofing	IP 67

Features

A very reactive speed over ground.

This HF GPS is a great alternative to the conventional speed sensor. It allows a very accurate measure of the starting line. Once we have supplied high frequency GPS to Open 60’ we have been able to work on all the data logged by Michel Desjoyeaux skipper of FONCIA. Actually, we have noticed significant differences between speed-over-ground and boat-speed in areas where there is no courant. The speed of the surface layer of water on the waves explains that difference. A wave consists in a transversal movement that carries energy, not matter. But in some cases, the upper layer of water moves in an elliptic way, generating an apparent wind which adds to the boat-speed (boat-speed being the speed at which the boat sails on that water layer).

Autopilot in Wind Over Ground mode!

While using the true wind mode the pilot does not take this apparent wind variation in consideration. The true wind angle value is affected by the movement of that water surface layer and the pilot should compensate. We have noticed that this water layer can reach speeds as 2 to 3 knots! This is quite significant. At a 126 ° true wind angle with 10 knots of apparent wind it gives a 10° variation of the true wind angle value. For an accurate true wind angle process, it is important to consider the speed of that “water layer”. In other words, use speed-over-ground data to process the values of true wind. This is possible with an ultra-high precision GPS.

User tips

Toggling speed data source is done in the Gyrographic setup menu. Once activated, the true wind mode on the pilot will implement that choice automatically.

Another good reason for using the High Frequency GPS: in case of failure of the boat speed sensor, the true wind mode remains available for the pilot.

This sensor is recommended for boats using the nke Gyropilot

It requires the True Wind Option on the pilot and the Ground Speed option on the Speed/depth interface.
