NKE HR Barometer

Name: NKE HR Barometer
SKU: 90-60-358
Price: 293.7 EUR
Availability: InStock

Original price was: 330,00 €.Current price is: 293,70 €.
You save

SKU: 90-60-358 Category: Interfaces

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

Customized configuration of the interface by nke.

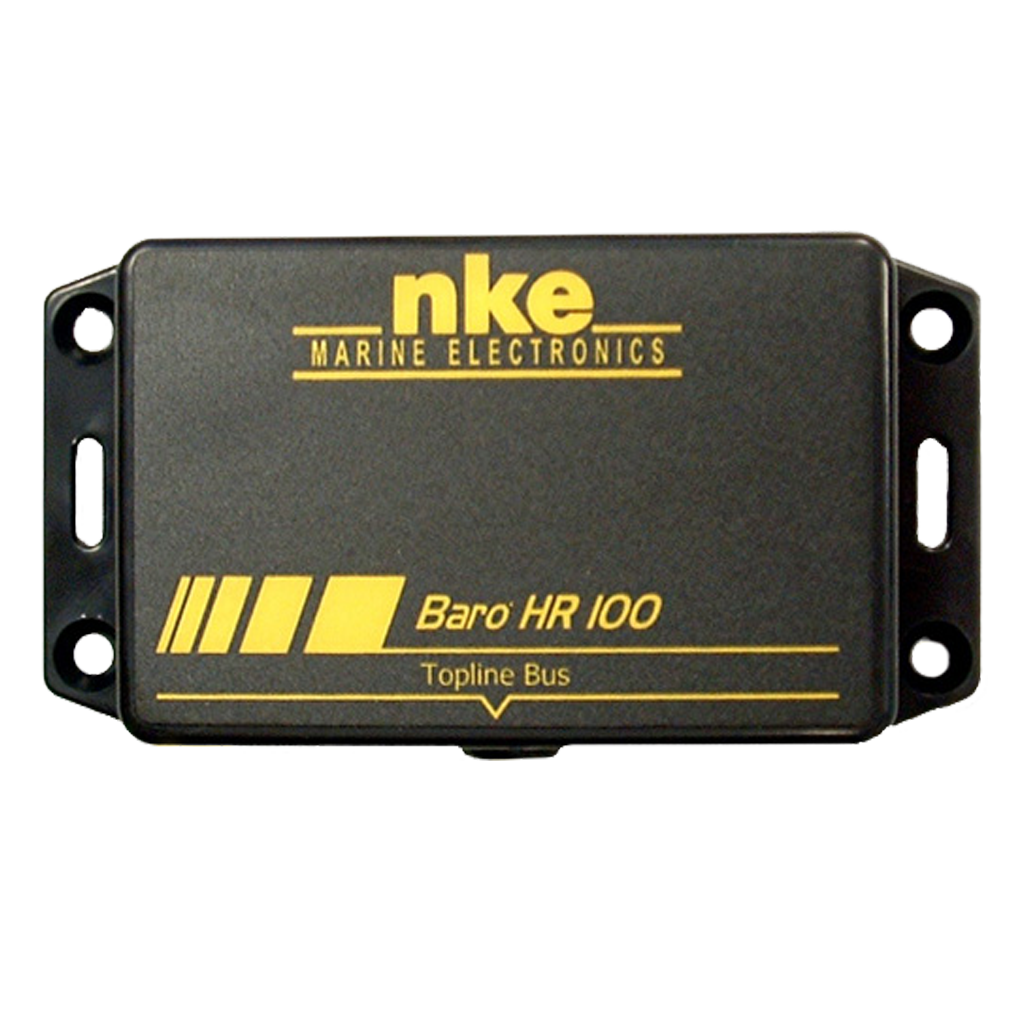

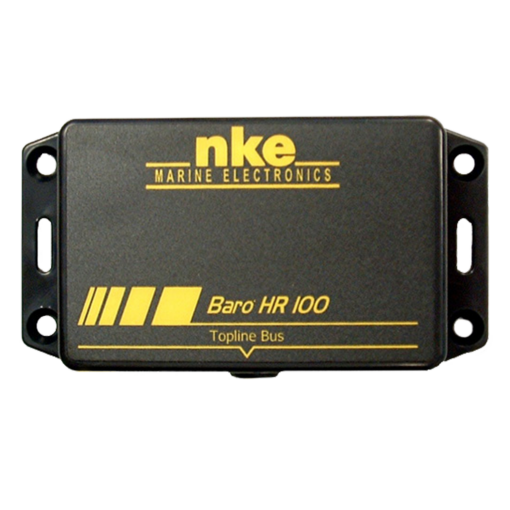

The nke HR 100 barometer measures instant atmospheric pressure and pressure trend for the last 10 hours. It can be connected to your nke instrument system bus and/or to any system featuring a NMEA0183 input and able to process MMB, MTA and XDR sentences. Accurate and compact, this sensor gives crucial information for weather forecasting. It includes an engine run time log as additional function. When it is connected to a Topline bus and a NMEA system simultaneously, the parameters are driven by the Topline setup (offset and damping).

Specifications

Power supply	10 to 16VDC
Consumption	25mA
Waterproofing	IP54
Weight	270g (5m cable)
Operating temperature	-10°C à +50°C
Storage temperature	-20°C à +60°C

Features

Each time the HR 100 Barometer outputs air pressure and air temperature on its NMEA output (yellow wire).

Note that it is possible to use the NMEA 0183 output and the bus link simultaneously. Cependant, les données émises sur la liaison NMEA tiennent compte des réglages existants dans les sous-canaux Topline (Offset et filtrage).

NMEA sample:
