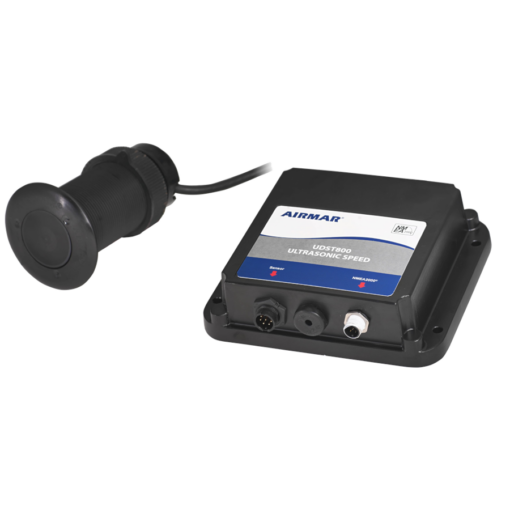

UDST800 Ultrasonic Smart™ Sensor Thru-hull NMEA 2000®
Original price was: 1.506,00 €.1.355,49 €Current price is: 1.355,49 €.
You save
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information

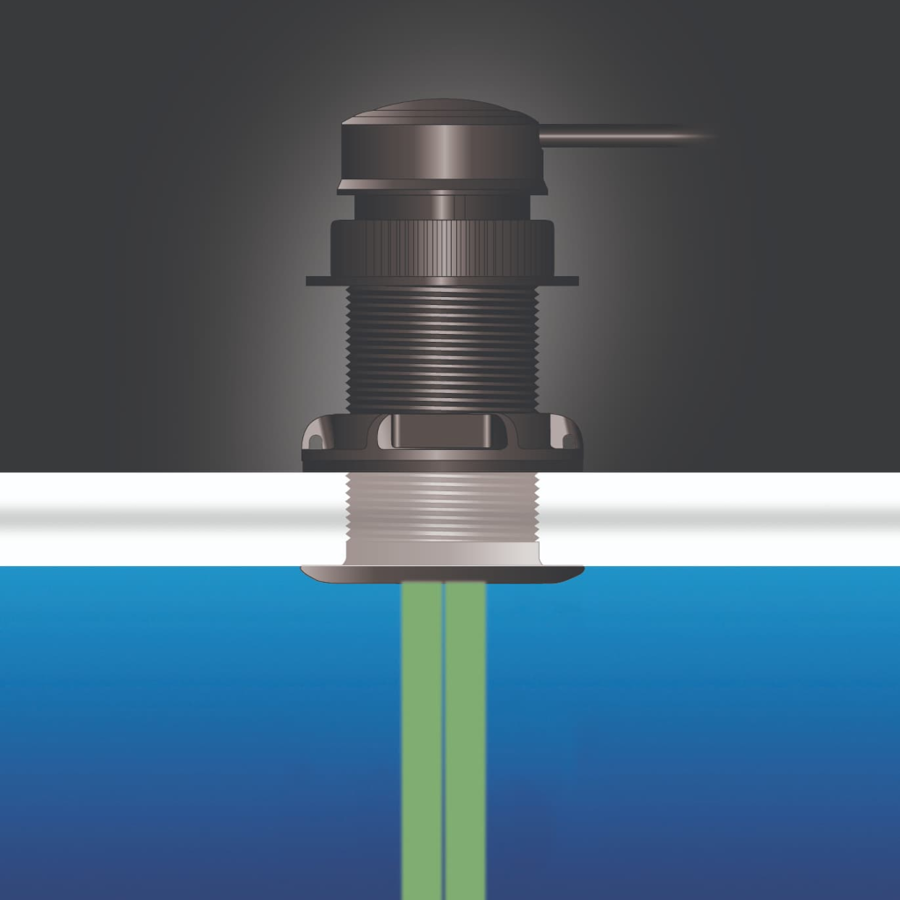

Airmar’s patented UDST800 just turned your maintenance time into more cruising time—and made your boat smarter too. Get ultrasonic speed, depth, and temperature in a single thru-hull bronze housing with no moving parts. Say goodbye to paddlewheel maintenance and hello to Smart™ technology, from the company who invented the Smart™ Sensor.
Features
- Ultrasonic speed, depth, and fast-response water-temperature sensing
- Single housing with no moving parts—no paddlewheel
- Precise readings at high speeds ideal for powerboats, cruising, and sailing
- Advanced filtering and sampling rates for increased accuracy at all speeds
- Adapts automatically to boat speed, water depth, and water clarity, keeping speed accuracy consistent
- 235 kHz frequency prevents interference with other echosounders on the vessel
- Retractable plastic insert in a low-profile stainless steel housing with water valve
- Also available in a bronze (B617V) or stainless steel (SS617V) housing
- Retrofits into Airmar’s P617V, B617V or SS617V housing
- Airmar’s Smart™ Sensor technology

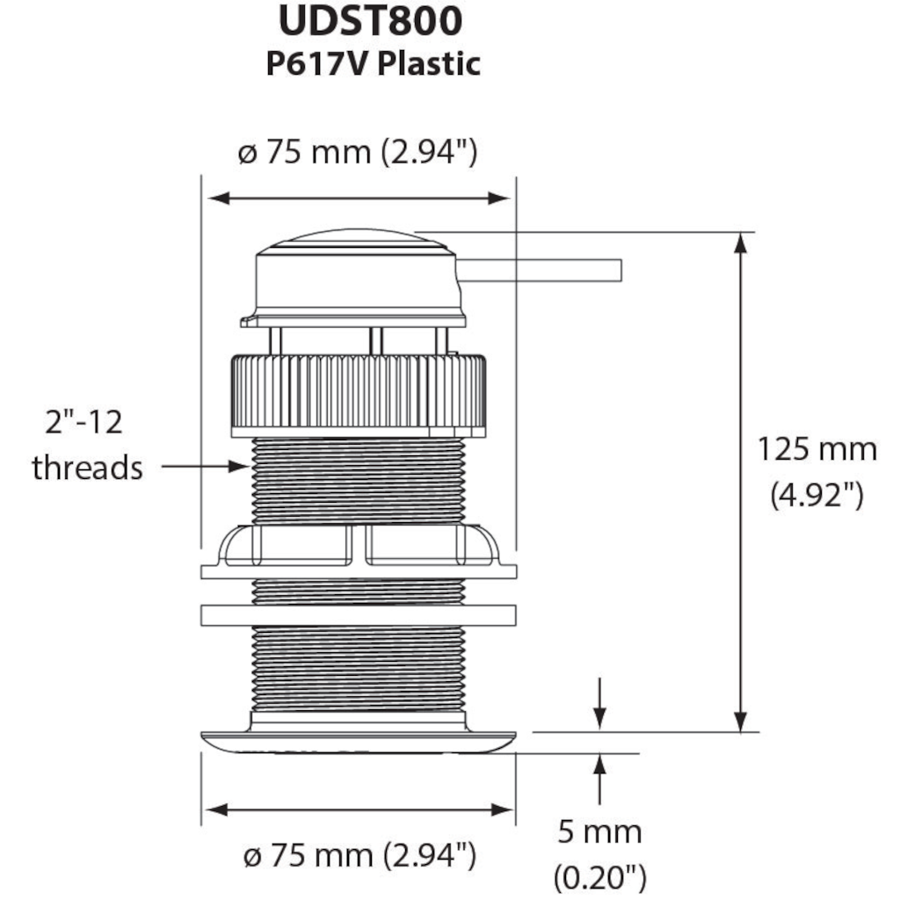

Specifications
- Acoustic Window: Urethane
- Cable-Length: 6 m (20′) NMEA 2000® cable
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
- Data Rate: Up to 10 times per second
- Functions: Depth, Speed, Temperature
- Hole Size: 51 mm (2″), Stainless steel housing in metal hull—57 mm (2-1/4″)
- Housing: Plastic
- Hull Material: Fiberglass or metal
- Max Depth: 0.6 m (2′) to 100 m (330′)
- Mounting Style: Low Profile Thru-Hull
- NMEA 2000 LEN: 8
- Power Rating: N/A
- Protocol Output: NMEA 2000®
- Retractable housing: Yes
- Retrofits: Retrofits into AIRMAR P617V
- Single or Dual Frequency: Conventional Single Frequency
- Speed Range: 0.1 to 50 knots (0.1 to 57 MPH)
- Temperature Accuracy: ±0.5°C (±1.8°F)
- Tilted Element: No
- Usable Shaft Length: 57 mm (2.25″)
- Voltage: 9 to 16 VDC
- Water Temperature: -10° to 40°C (14° to 104°F)
- Weight: 1.4 kg (3 lb.)
