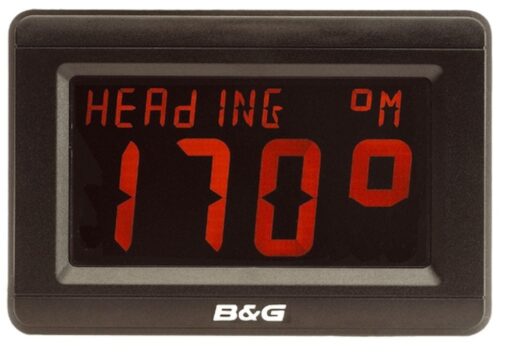

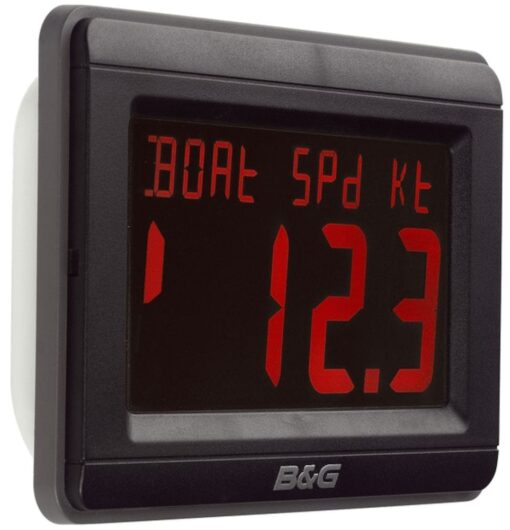

B&G 40/40HV Display pack for H5000 or Triton systems
Original price was: 3.079,70 €.2.771,73 €Current price is: 2.771,73 €.
You save
40/40HV DISPLAY PACK, TRITON/H5000.
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
Product Description
Able to store 14 configurable pages, whether you want to see True Wind Angle, COG or SOG, getting the crucial information in the right place is simple.
This is the ideal display for focus areas such as pedestals and trimming positions, or an ideal mast display for yachts in the 30ft to 50ft range, with zero condensation and outstanding contrast.
Product Details
- Race Proven H-Vision Technology.
- High-Contrast Optically Bonded LCD..
- Durable, lightweight alloy construction
- Inverse “white on black” display.
- Red night lighting.
- Configurable from H5000 or Triton Instrument systems.
- Zero condensation.
- Extremely low power consumption.
- Fast, responsive display.
- Single network cable supplies data and power.
Product Specifications
Approvals
| Compliance | IEC/EN 60945 |
|---|
Connectivity
| NMEA 2000 | 1 x NMEA2000 Micro-C port, 4 LEN |
|---|
Display
| Backlight Color | Red |
|---|---|
| Size and Type | Custom High Contrast Segmented LCD |
Electrical
| Power Consumption, max. | 2.1W |
|---|---|
| Power Consumption, typical | 0.5W |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12V DC (10-16V DC) |
| Humidity | Up to 95% RH |
Environment
| Operating Temperature Range | -10 to +55ºC (+14 to 131ºF) |
|---|---|
| Waterproof rating | IP67 |
MFD
| Compass Safe Distance – Metric, imperial | 200mm (7.9″) |
|---|
Physical
| Dimensions (W x H x D) | 323 x 209 x 52mm (12.8 x 8.2 x 2″) |
|---|---|
| Mounting Type | Flush |
| Weight | 2.3 kg (5.1 lbs) |
Other
| Warranty Period | 2 Years |
|---|---|
| Languages | English, German, Spanish, French, Italian |
Additional information
| Weight | 2,4 kg |
|---|---|
| Dimensions | 35,5 × 36,8 × 12,7 cm |
| Brand | |
| SKU | 000-11090-001 |
| Family | |
| GTIN | 9420024123980 |
| Model | |
| Class Type | |
| Component | |
| Item Type |
