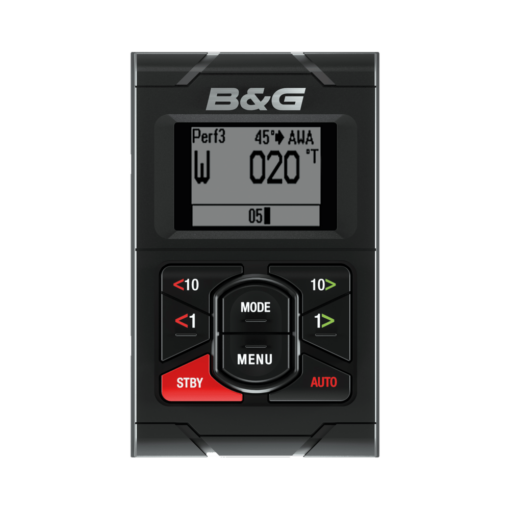

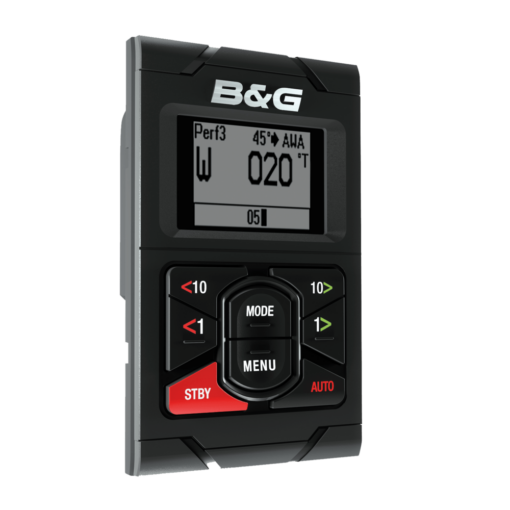

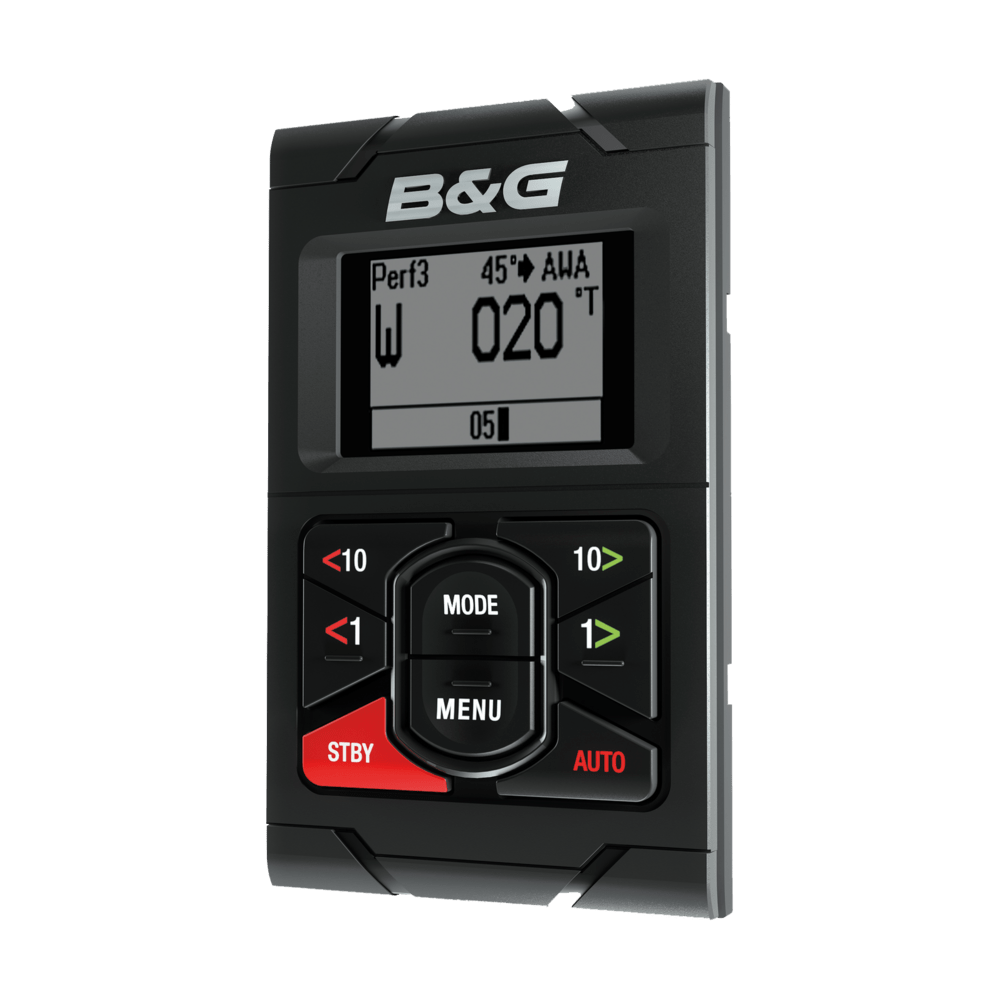

B&G H5000 Pilot Controller

Enjoy straightforward autopilot access, control and system setup of B&G’s powerful H5000 Pilot from the dedicated keypad of this Pilot Controller unit. As the primary Pilot controller, or as a second station to a Zeus chartplotter, the Pilot Controller provides assured control and feedback via a high-resolution monochrome display. Waterproof to IPx7, this dedicated Controller lets you remotely manage everything to do with the Pilot – from commission to control. It features the same mechanical designs as the H5000 displays, for rugged durability and consistent aesthetics.

-Dedicated Pilot control: Developed to complement the H5000 Pilot Computer, this Controller manages every function of this powerful and trusted tool – from commissioning to control

-Glass-bonded monochrome display: The bonded glass LCD display is tough, waterproof and condensation-resistant in the most testing environments with high-resolution monochrome screen, with wide viewing angle, for optimum readability and clear presentation of Pilot data in all light conditions.

-Straightforward interface: The controller’s dedicated keypad and intuitive operation makes commissioning and control of the Pilot straightforward, flexible and convenient.

• Dedicated Pilot control: Developed to complement the H5000 Pilot Computer, this Controller manages every function of this powerful and trusted tool – from commissioning to control.
• Glass-bonded monochrome display: The bonded glass LCD display is tough, waterproof and condensation-resistant in the most testing environments with high-resolution monochrome screen, with wide viewing angle, for optimum readability and clear presentation of Pilot data in all light conditions.
• Straightforward interface: The controller’s dedicated keypad and intuitive operation makes commissioning and control of the Pilot straightforward, flexible and convenient.
• Waterproof to IPX7.

Autopilot

Engine Drive systems integration	n/a
Steering Modes	Non Follow Up (NFU), Auto, NoDrift, Wind, Nav

Connectivity

NMEA 2000	1x CAN Micro-C port, 3 LEN

Display

Backlight Color	White
Resolution	128 x 64
Size and Type	2″ Monochrome, Transreflective
Viewing Angles	6 o’clock

Electrical

Power Consumption, max.	130mA (from CAN)
Power Consumption, typical	100mA (from CAN)
Supply Voltage	12-16V via CAN

Environment

Operating Temperature Range	10C to +55C (+32F to +131F)
Storage Temperature Range	-30C to +70C (-22F to +158F)
Waterproof rating	IPx7

MFD

Compass Safe Distance – Metric, imperial	0,3m (11,8″)

Physical

Dimensions (W x H x D)	70 x 114 x 41mm (2,76 x 4,49 x 1,61″)
Mounting Type	Flush
Weight	0,18kg (0,4 lbs)

Other

Warranty Period	2 years
Interface	Keypad
Languages	English, German, French, Spanish, Italian, Dutch, Swedish, Norwegian

Weight	0,5 kg
Dimensions	15,2 × 22,2 × 11,4 cm
Brand	B&G
SKU	000-11544-001
Family	H5000
GTIN	9420024130339
Model	Pilot Keypad
Class Type	Autopilot
Component	Head/Display
Item Type	Main Product
