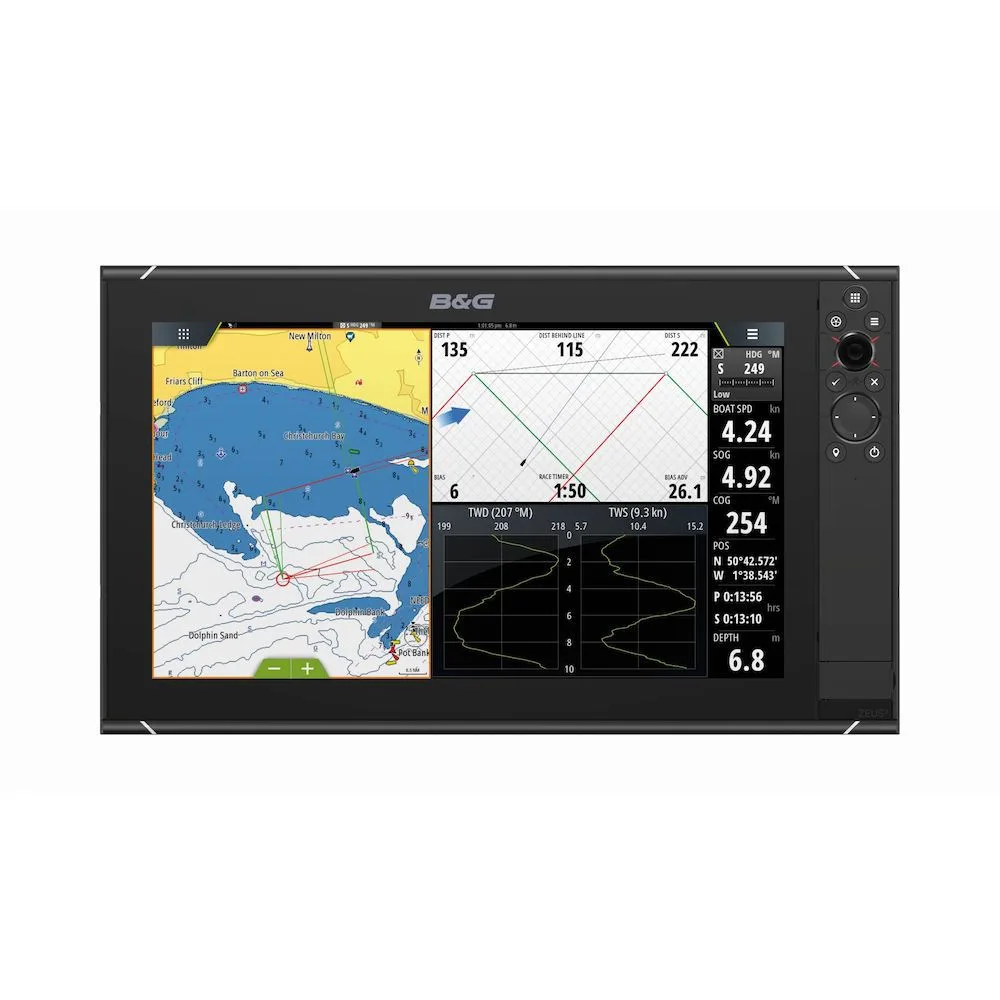

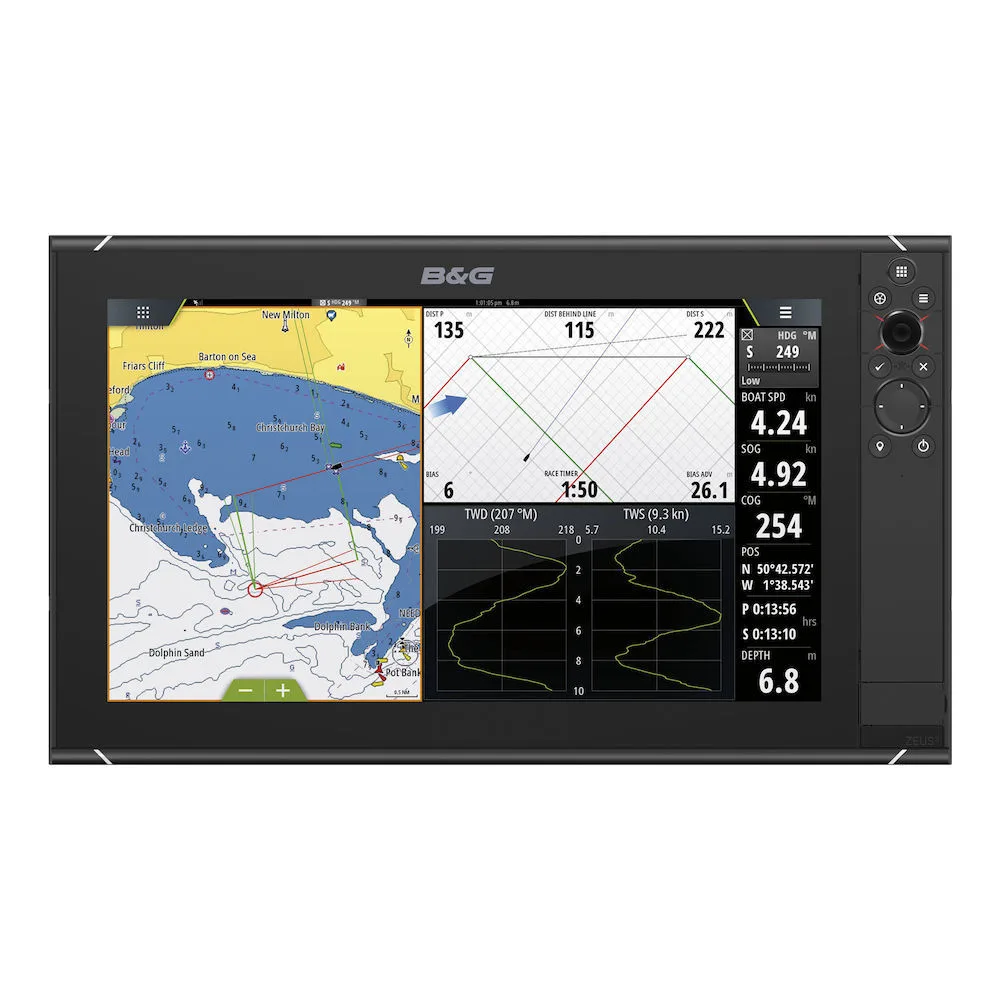

B&G Zeus³ 16″ Chartplotter

This high-performance multifunction display features widescreen display, incorporating SolarMAX™ HD technology for brilliant daytime visibility and ultra-wide viewing angles. To ensure reliable control in all conditions and situations, Zeus³ combines an all-weather touchscreen with a rotary dial and keypad capable of controlling all display functions. Both sets of controls can be used simultaneously, or Zeus³ can be switched to non-touch mode for dependable operation under the most extreme conditions.

Built-in Wi-Fi lets you access GoFree® online services to download charts, weather information, and software updates direct to your display via any Wi-Fi internet hotspot. GoFree® Wi-Fi also lets you mirror your Zeus³ screen on a compatible smartphone, and control your Zeus³ display from a compatible tablet, for an extra display that you can use anywhere on board.

Built-in ForwardScan™ sonar support offers safer passage through shallow and poorly-charted waters; just add a ForwardScan™ transducer for a clear on-screen view of the depth ahead. Zeus³ displays also offer plug-and-play support for Broadband Radar™ and AIS solutions, enhancing your situational awareness with tools like MARPA target tracking and AIS overlay in crowded harbours and during races and regattas. Complete autopilot integration means short-handed and single-handed sailors can take immediate control of their B&G autopilot system from any B&G Zeus³ display on board.

Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2

Autopilot

Manouevres / Turn Patterns	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Bluetooth	Internal
Ethernet	2 x 5 pin yellow connector x 1 Mbit
N2K PGNs	Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). HDMI output
WiFi	Internal

Display

Backlight Color	White
Resolution	1920 x 1080
Size and Type	High Visibility SolarMax HD® IPS optically bonded TFT
Viewing Angles	80° top/bottom, 80° left/right

Electrical

Power Consumption, max.	45 W
Recommended Fuse Rating	5A
Supply Voltage	10 – 31.2 V DC

Environment

Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6 and 7

GPS

Correction	WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels	34 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix	Cold start 50 sec, Satellite Reacquisition 5 sec
Update rate	10 Hz

MFD

AIS	Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
Autopilot	Full auto pilot control and commissioning
Cartography included	World basemap (no detailed charts)
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Digital Switching	BEP C-Zone, Naviop
External Storage	2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
GPS	Internal
Internal Storage	16 GB
Multimedia	via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Radar (inc. compatibility)	Broadband Radar
Sonar (inc. compatibility)	Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
Weather	SiriusXM via WM-3 (USA only), GRIB
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Physical

Dimensions (W x H x D)	437 x 256 x 98 mm (117.19 x 10.08 x 3.82″)with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80″)
Mounting Type	Bracket (Supplied) or panel mount
Weight	4.65 kg (10.25lbs.)

Other

Warranty Period	2 Years
Interface	Full touch screen (multi-touch ) and full keypad control, ZC2 remote controllers, USB Mouse
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi

Weight	9 kg
Dimensions	33 × 52 × 21 cm
SKU	000-13248-001
Brand	B&G
Family	Zeus3
GTIN	9420024154182
Model	Zeus16
Class Type	Chartplotter – Multi-Function Display (MFD)
Component	Head/Display
Item Type	Main Product
