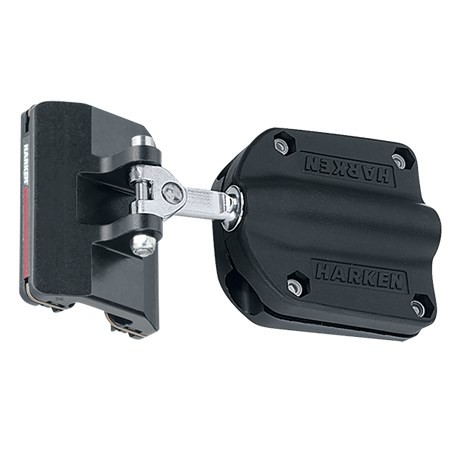

Harken 22mm CB Battcar — 40 mm Receptacle

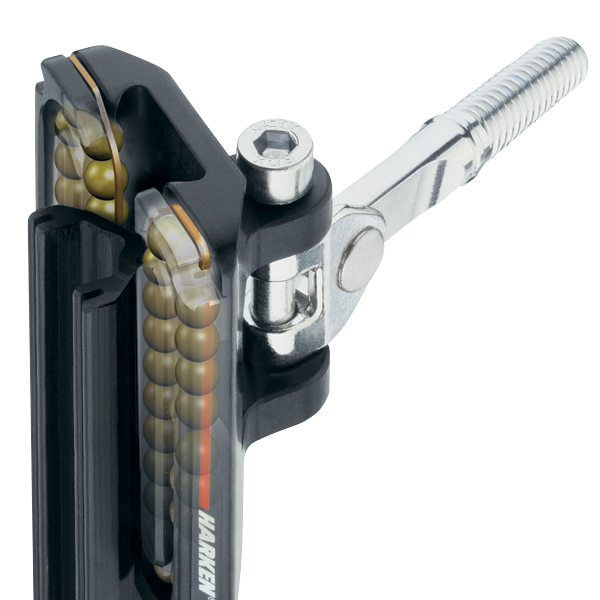

A Harken Battcar system along with full-length battens helps raise, douse, and reef with ease and acts as extra crew if you’re sailing shorthanded. Battcar systems outperform in-mast or in-boom furling, cost less, and you don’t need to recut your sail. The one-piece solid aluminum construction is lightweight and strong. The free-rolling ball bearing cars let you hoist and reef the main quickly on all points of sail. Length (mm) 73 mm
Length (in) 2 7/8 in
Width (mm) 57 mm
Width (in) 2 1/4 in
Weight (g) 253 g
Weight (oz) 9 oz
Maximum batten width (mm) 41 mm
Maximum batten width (in) 1 5/8 in
Maximum batten Ø (mm) 16 mm
Maximum batten Ø (in) 5/8 in
Batten shape Flat/Round
Maximum sail area – monohull (m²) 56 m²
Maximum sail area – monohull (ft²) 600 ft²
Maximum sail area – multihull (m²) 46 m²
Maximum sail area – multihull (ft²) 500 ft²
Maximum working load (kg) 272 kg
Maximum working load (lb) 600 lb
A (mm) 73 mm
A (in) 2 7/8 in
B (mm) 35 mm
B (in) 1 3/8 in
C (mm) 73 mm
C (in) 2 7/8 in
D (mm) 146 mm
D (in) 5 3/4 in
E (mm) 5 mm
E (in) 3/16 in

Brand	HARKEN
SKU	3830
GTIN	097653144847
