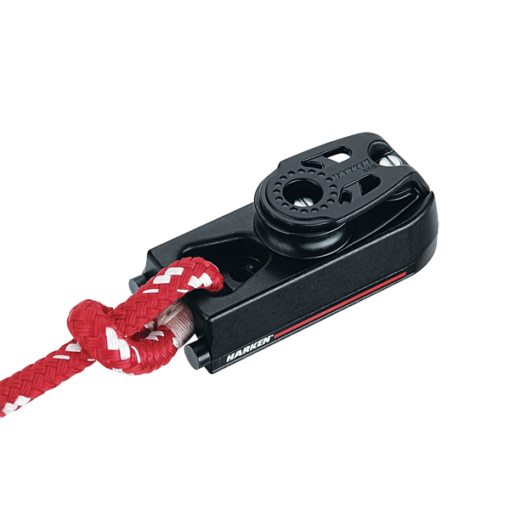

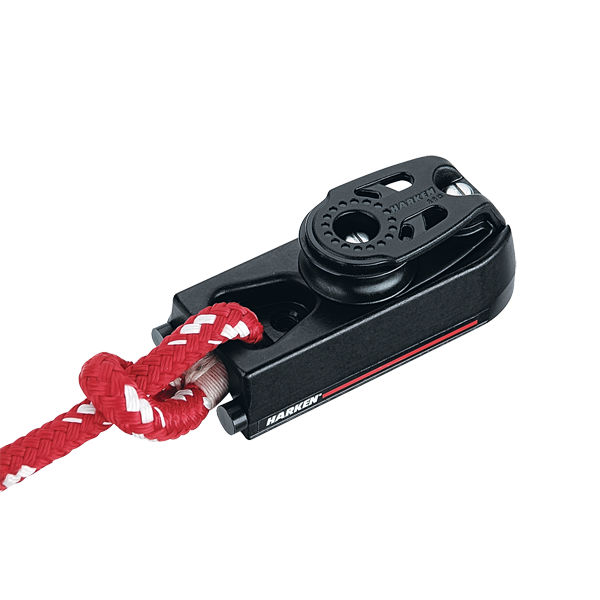

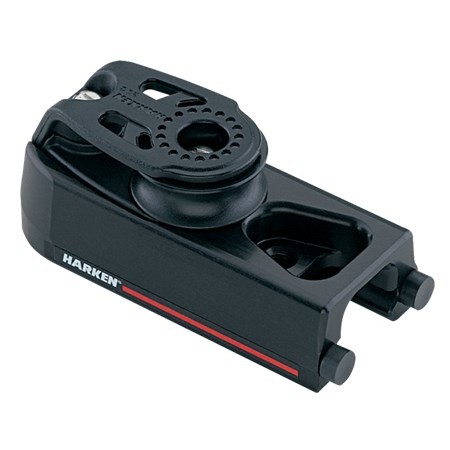

Harken 27mm End Control — Set of 2

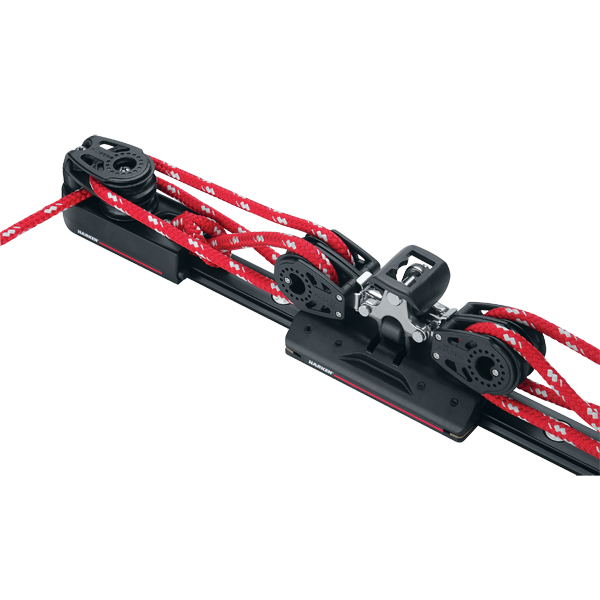

High-performance end controls allow the installation of 2:1 to 4:1 purchases. Designed for high-performance, free-running systems, Carbo control blocks with Delrin® ball bearings let cars instantly adjust and release under load. Assemblies secure to track, eliminating additional holes. Tough one-piece bases are machined from a single piece of aluminum. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates. Sheave Ø (mm) 40 mm
Sheave Ø (in) 1 9/16 in
Length (mm) 114 mm
Length (in) 4 1/2 in
Width (in) 1 15/16 in
Width (mm) 49 mm
Height above track (mm) 33 mm
Height above track (in) 1 5/16 in
Weight for pair (g) 574 g
Weight for pair (oz) 20 oz
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Maximum working load (kg) 159 kg
Maximum working load (lb) 350 lb
Breaking load (lb) 875 lb
Breaking load (kg) 397 kg
Purchase 2:1 / 3:1
Fasteners (mm) 8 PH mm
Footnote Fasteners included

Brand	HARKEN
SKU	1631
GTIN	097653134770
