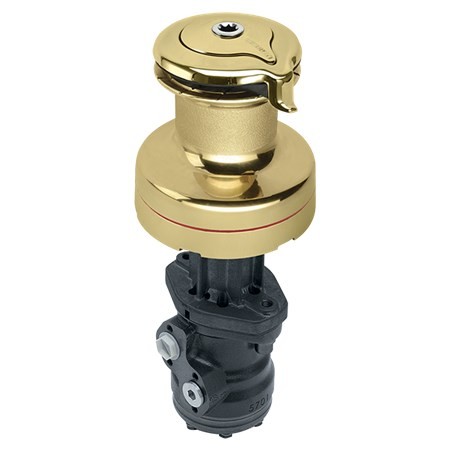

Harken 70 Hydraulic Self-Tailing Radial Bronze Winch — 3 Speed, Vertical

Hydraulic Radial winches let you relax in luxury and trim any size sail with the push of a button. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size. Material Bronze
Configuration Self-tailing
Speed 3
Drum Ø (mm) 130 mm
Drum Ø (in) 5 1/8 in
Base Ø (mm) 240 mm
Base Ø (in) 9 7/16 in
Height (mm) 264 mm
Height (in) 10 3/8 in
Weight of Winch and Motor (kg) 25.7
Weight of Winch and Motor (lb) 56.7
Motor weight (kg) 7.5 kg
Motor weight (lb) 16.6 lb
Line entry height (mm) 115 mm
Line entry height (in) 4 1/2 in
Minimum line Ø (mm) 10 mm
Minimum line Ø (in) 3/8 in
Maximum line Ø (mm) 18 mm
Maximum line Ø (in) 11/16 in
Fastener circle (mm) 205 mm
Fastener circle (in) 8 1/8 in
Fasteners (mm) M8 SH mm
Fasteners (in) 5/16 SH in
Number of fasteners 6
Available power Hydraulic
Hydraulic L (mm) 234 mm
Hydraulic L (in) 9 1/4 in
Hydraulic N (mm) 130 mm
Hydraulic N (in) 5 1/8 in

Brand	HARKEN
SKU	70.3STHBBB
GTIN	–
