HS+50 Hydraulic Steering Systems
Original price was: 2.698,15 €.2.428,34 €Current price is: 2.428,34 €.
You save
The ML+40 Electro Hydraulic Linear Actuator combines all the elements of an hydraulic circuit in one compact unit. Designed for ease of installation, the unit is supplied with a quick release mounting, tiller bolt and fitting kit.
An optional rudder reference/feedback unit can be mounted directly onto the actuator.
Integral relief valves protect the unit and its mountings from being overloaded.
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
The hydraulic steering systems comprise of a compact cylinder which includes the relief valves and solenoid clutch, a reversing or constant running pump, marine hoses, fittings and a reservoir. The system comes filled ready for installation. A choice of pump sizes can be selected with single or twin cylinders to give a range of hard-over times and thrusts.
Application
Designed specifically for the marine autopilot market where they can be used on sailboats and power-craft with displacement and fast planing hulls. The pumps and cylinders can be matched to give the hard-over times and thrusts to suit the application.
Features
- Pre-filled ready to fit.
- Installation kit included.
- Shorter than conventional cylinders.
- Quiet operation.
- Low maintenance.
- Low power consumption.
- Integral solenoid bypass valve.
- Integral relief valves.
- Marine environment protected (under deck) Fully serviceable.
- 12 or 24V options.
- Reversing or Constant Running pump options. Adjustable or non adjustable rod-ends
- Twin opposed cylinder options.
Linear Feedback Transducer
A high quality analog linear feedback transducer / rudder reference is available as either a retro-fit kit or can be supplied assembled onto the HS+50.
It mounts directly on top of the cylinder giving a compact installation with no extra linkages required.It comes complete with fitting kit which includes all the mounting clamp, extended tiller bolt and quick release fasteners.
It mounts directly on top of the cylinder giving a compact installation with no extra linkages required.It comes complete with fitting kit which includes all the mounting clamp, extended tiller bolt and quick release fasteners.
Performance Graphs

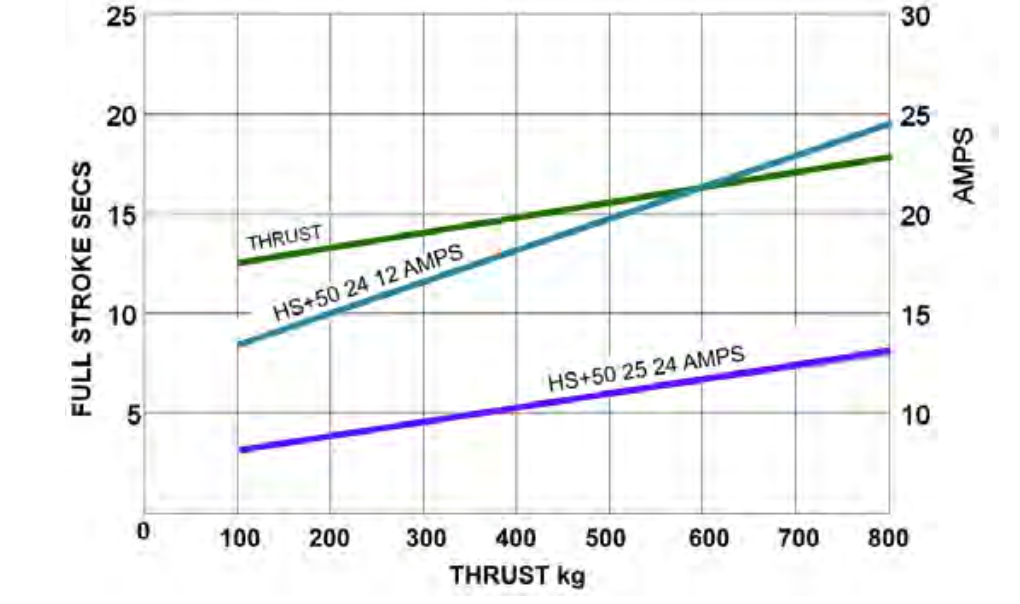

Typical Performance ISO VG10 @ 25ºC
Technical Data
Voltage: 12 / 24 VDC
| Current | Typical Amp-hour 910N at 25% duty |
Typical Current Intermittent 9970N |
||
| 12v | 24v | 12v | 24v | |
| HS50 S | 2.7 | 1.4 | 34.0 | 15.5 |
| HS50 SA | 2.7 | 1.4 | 34.0 | 15.5 |
| Ingress protection: | IP67 |
| EMC Protection S EN 60945: | 2002 (DC) |
| Ignition Protection BS EN 28846: | 1993 |
| EN ISO 10592: | 1995 (Small Craft – Hydraulic Steering Systems) |
| Ambient Operating Temperature: | -15 to +55 deg C |
| Max Operating Thrust: | 10840N (Intermittent) |
| Relief Valve setting: | 62 bar (12400N) |
| Orientation: | Red lead to positive – Extends Black lead to positive – Retracts |
| Clutch coil: | 12 watt |
| Clutch connection: | DIN 43650 (6-8 mm cable) |
| Fluid: | ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV |
| Weight: | 14 kg |
