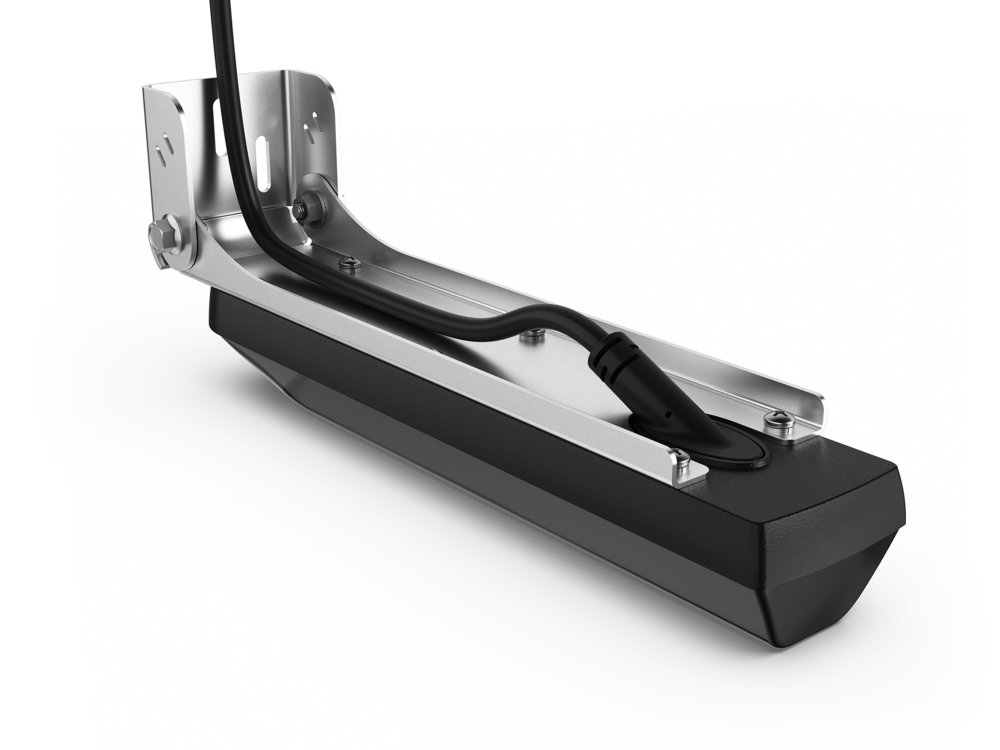

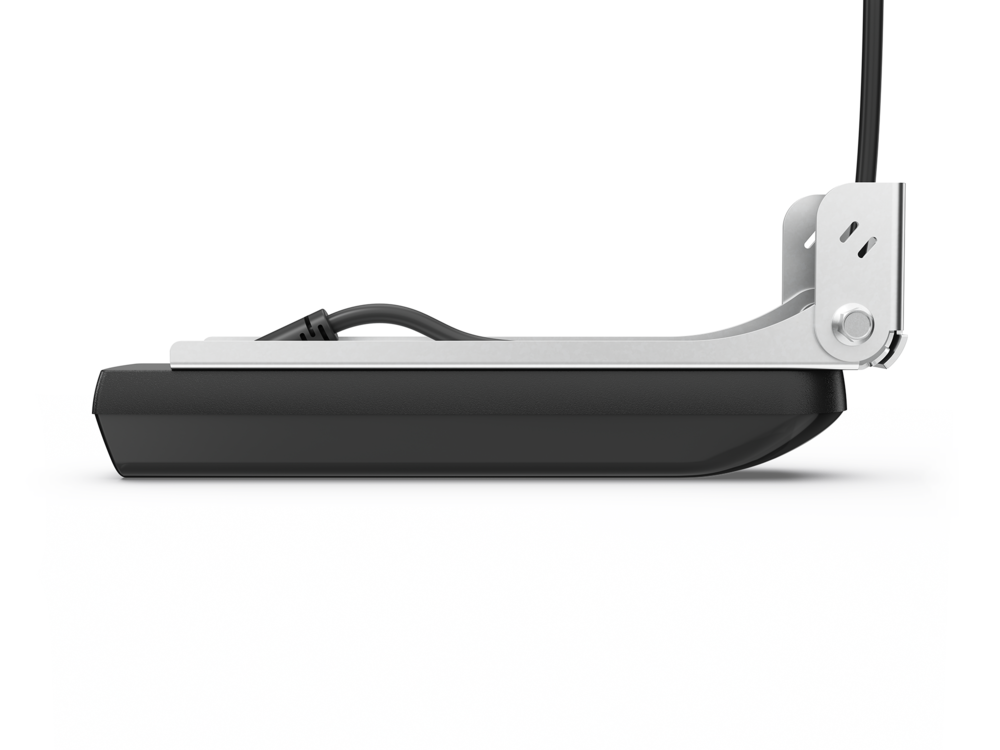

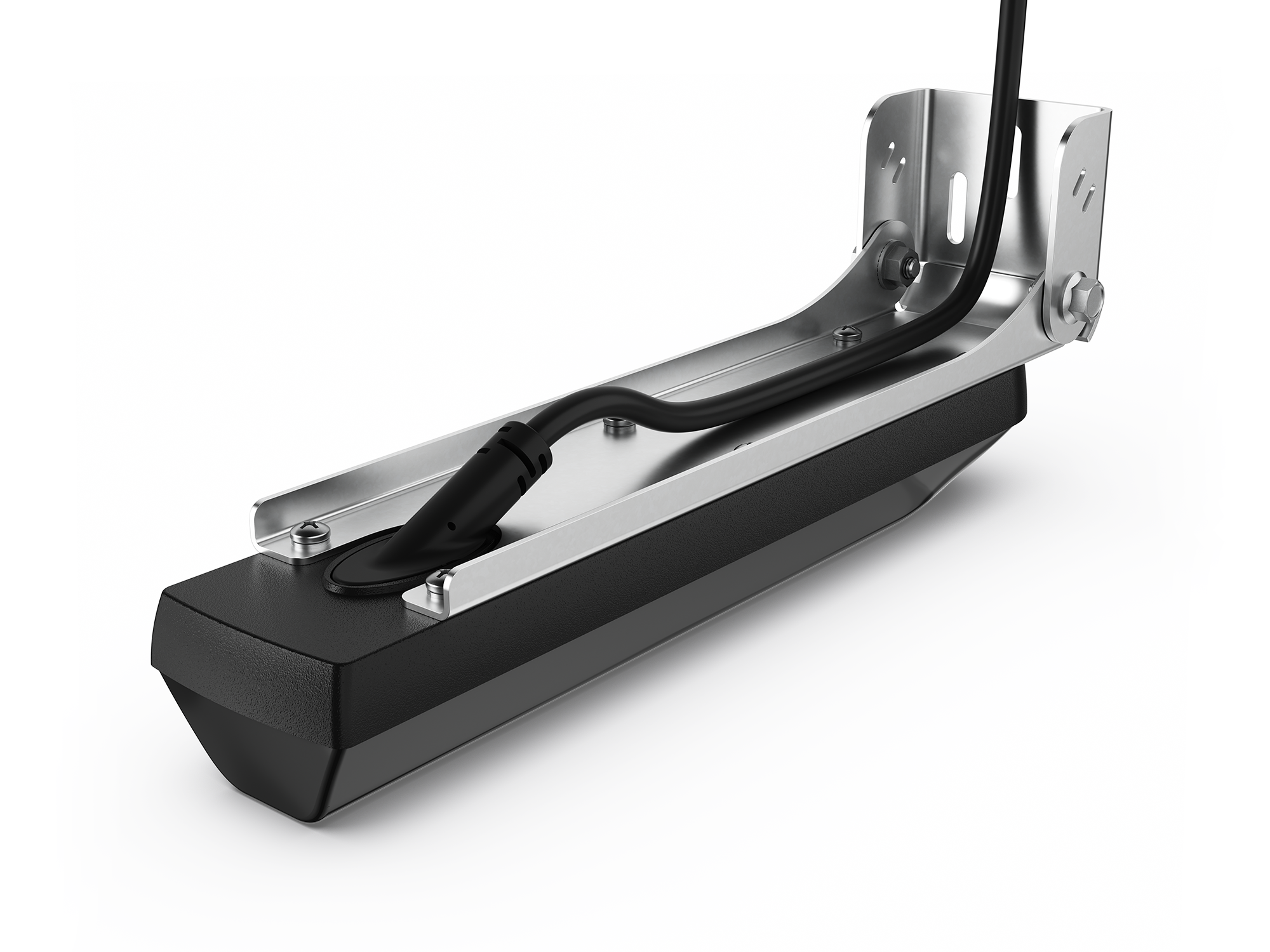

Lowrance Activeimaging HD 2-in-1 Transducer
Original price was: 369,00 €.332,10 €Current price is: 332,10 €.
You save
ActiveImaging™ HD 2-in-1 Transducer.
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
Perfect Complement for CHIRP Transducer
The ideal solution for boats that already have a CHIRP transducer installed, Active Imaging™ HD 2-in-1 allows anglers to use a separate CHIRP transducer with Active Imaging HD high-frequency SideScan/DownScan Imaging™ and the FishReveal™ DownScan view.
See the Difference

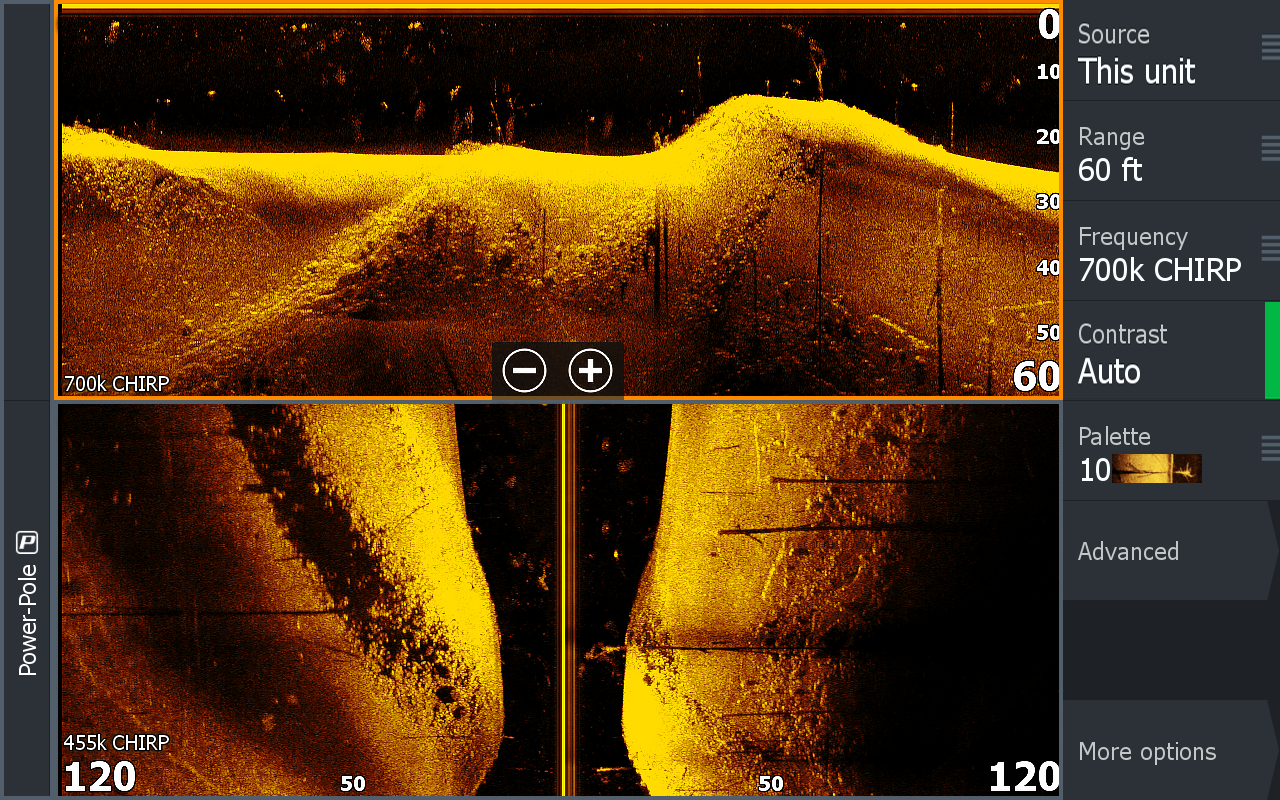

Our clearest sonar ever, Active Imaging™ HD delivers the highest-definition views of SideScan and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.
Designed for Clarity
The Active Imaging™ HD transducer not only delivers two key sonar technologies – Lowrance® CHIRP and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.
Details
- High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
- Lowrance® CHIRP with superb clarity and target separation
- FishReveal™ DownScan view makes fish identification easy
- Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
- Smart transducer design boosts signal clarity
- Compatible with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and GO series displays
Especifications
Electrical
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
|---|
Environment
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
|---|---|
| Shock and Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -22°F to 158°F (-30°C to 70°C ) |
| Waterproof rating | IP67 |
Physical
| Dimensions (W x H x D) | #NAME? |
|---|---|
| Mounting Type | Transducer:Bracket Mount |
| Weight | Transducer:2.67 lbs (1.21 kg) |
Radar
| Frequencies | CHIRP:High CHIRPMedium CHIRPBroadband:83 kHz200 kHzActive Imaging HD:SideScan:Low CHIRP: 455 kHz (445 kHz – 495 kHz)High CHIRP: 1075 kHz (1065 kHz – 1115 kHz)DownScan:Low CHIRP: 700 kHz (690 kHz – 740 kHz)High CHIRP: 1200 kHz (1190 kHz – 1240 kHz) |
|---|---|
| Max Depth | 2D Sonar:Broadband/CHIRP:200 kHz/High CHIRP – 500′ (152.4m)83 kHz/Medium CHIRP – 1000′ (304.8m)SideScan:High Frequency: 150′ (45.72m)Low Frequency: 300′ (91.44m)DownScan:High Frequency: 150′ (45.72m)Low Frequency: 300′ (91.44m) |
Other
| Warranty Period | 1 Year + 4 additional years ofupgrade optionsTotaling 5 years |
|---|---|
| Interface | Direct Connect to:HDS ProS3100Ehternet to:*HDS Live*Elite FS* Requires S3100 Module |
Additional information
| Weight | 1,762 kg |
|---|---|
| Dimensions | 8,89 × 34,3 × 24,77 cm |
