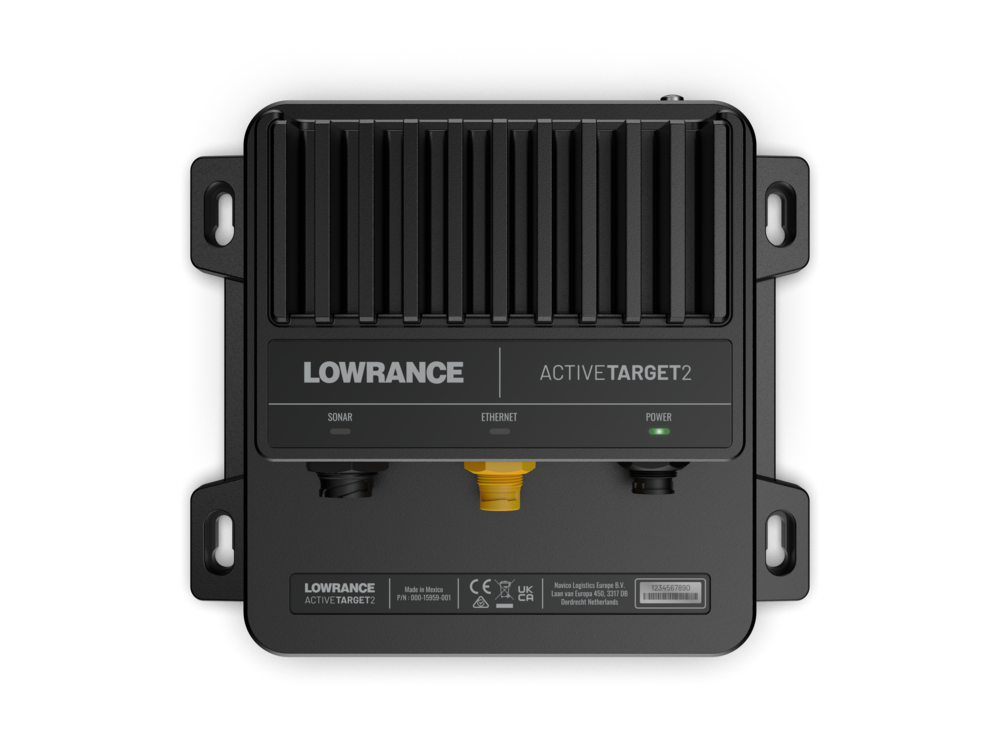

Lowrance Activetarget2 Module Only

Catching fish is easier when you can see them interacting with structure and responding to your lure – in real time – with Lowrance® high-resolution ActiveTarget® 2 Live Sonar. Quickly recognize if your lure presentation is working or if you need to make an adjustment to get fish to strike – information that is harder to get from traditional sonar or structure imaging.

It’s easy. Drop your lure on a fish and watch the catch unfold in real time – from the fish striking your lure to reeling the fish to the surface – you’ll see it all in incredible detail.

Get the best picture

See the clearest, highest-resolution images of fish swimming in and around cover and structure with ActiveTarget 2 Live Sonar. Get the best picture every time with optimized image and stabilization settings that deliver crisp and clear live action views of fish and structure, even in rough conditions.

See the full picture

Delivering a wider, more complete underwater image than any other live sonar, ActiveTarget 2 shows you exactly what’s going on under the surface by capturing a wider section of the water column as a live action feed. Enhancements to the beam widths broadcast from the ActiveTarget 2 transducer make it possible to show more detailed images further from the boat than ever before.

See all around the boat

Track fish and your lure presentation with high-resolution views in front, below and to the sides your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat. Perfect for finding bait balls and big schools of fish.

See More Simultaneously

Target fish better than ever, watching multiple ActiveTarget 2 views at the same time, with a second optional ActiveTarget II transducer. Monitor multiple views at the same time – from Forward, Down and Scout modes – and enable additional Forward + Back and Scout Wide views showing images out to 180 degrees for more effective fish and bait tracking ahead of the boat.

Details

• High-resolution, live action images clearly reveal what’s happening underwater in real time
• Clearest live action views of fish and structure
• Widest underwater images for quicker interpretation
• See all around your boat with Forward, Down and Scout views
• See multiple views simultaneously and enable Forward+Back and Scout Wide views for more effective bait tracking ahead of boat with second optional ActiveTarget 2 transducer
• Compatible with HDS LIVE, HDS Carbon and Elite FS

Especifications

Connectivity

Ethernet	Yes: 1 – 100 Mbit Ethernet Port

Electrical

Power Consumption, max.	1.5A @ 13.8VDC
Power Consumption, typical	1.5A @ 13.8VDC
Recommended Fuse Rating	3A
Supply Voltage	10.8 VDC – 31.2 VDC
Humidity	60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Shock and Vibration	100,000 cycles of 20 G
Storage Temperature Range	-22°F to 158°F (-30°C to 70°C )
Waterproof rating	IP67

Physical

Dimensions (W x H x D)	Module: 8.63″ (219.3mm) x 7.56″ (192.1mm) x 2.86″ (72.9mm) Transducer: 5.90″ (149.8mm) x 3.24″ (82.4mm) x 2.28″ (58.0mm)
Mounting Type	Module: Surface Mount Transducer: Bracket Mount
Weight	Module: 4.12 lbs (1.86 kg) Transducer: 2.67 lbs (1.21 kg)

Radar

Frequencies	550kHz – 1100kHz
Max Depth	200′ (60.96m)

Other

Warranty Period	1 Year + 4 additional years of upgrade options Totaling 5 years
Interface	Ethernet to: HDS Pro HDS Live HDS Carbon Elite FS

Weight	3 kg
Dimensions	24,6 × 25,6 × 13,3 cm
Brand	Lowrance
Class Type	Sonar – Sensors and Transducers
Component	Sensor/Transducer/Scanner/Antenna
Family	Lowrance Sonar – Sensors and Transducers Family
Item Type	Main Product
Model	Lowrance Active Target 2
sku	000-15961-001
GTIN	9420064128259
