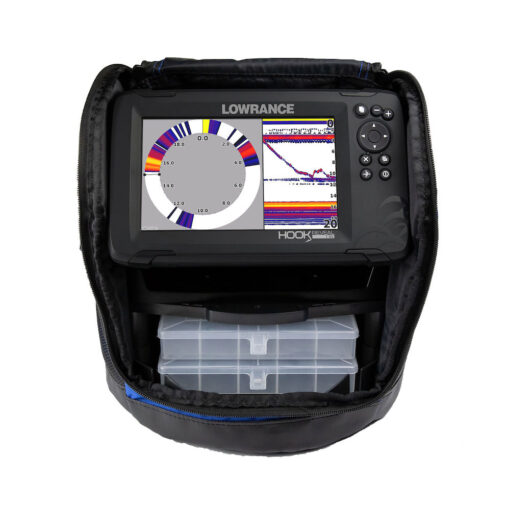

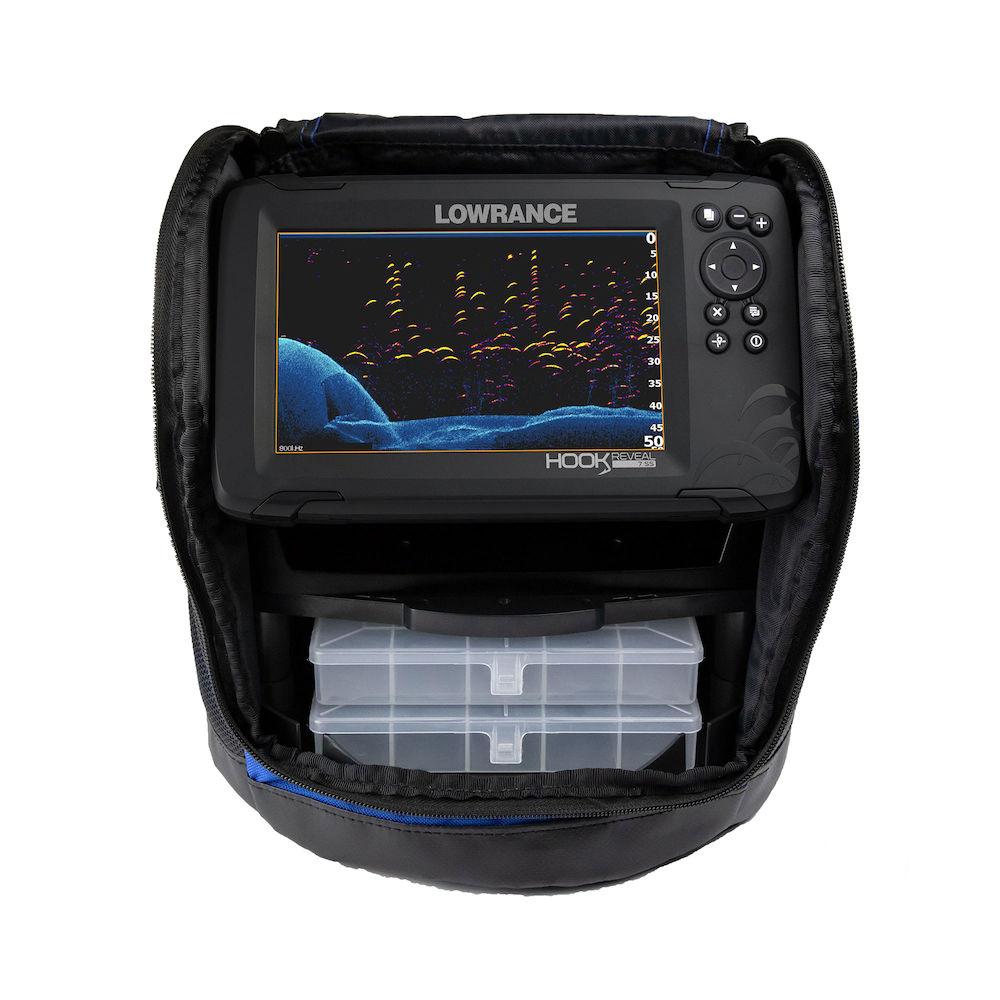

Lowrance Hook Reveal 7 Splitshot ROW Icemachine

From the world’s best-selling series of fishfinders comes HOOK Reveal, a new fishfinder/chartplotter with one of our most popular features – FishReveal™. This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™. That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display.

Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change. Our 83/200 and 50/200 HDI models provide improved sonar performance in deep water, plus with our TripleShot models, you can cover more water in less time with double the sonar coverage of other fishfinders.

HOOK Reveal comes with C-MAP chart compatibility to get you on the fish, as well as Genesis Live real-time mapping. Map uncharted areas – down to ½-foot contours – with Genesis Live.

Approvals

Compliance	FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Display

Backlight Color	Pure White LED
Resolution	800 x 480
Screen Brightness	>1000 NITS
Size and Type	7″ (178 mm)SolarMAX Display
Viewing Angles	80° top/bottom, 85° left/right

Electrical

Power Consumption, max.	1.25A @ 13VDC with backlight on full
Power Consumption, min.	1.25A @ 13VDC with backlight on full
Power Consumption, typical	1.25A @ 13VDC with backlight on full
Recommended Fuse Rating	5A
Supply Voltage	12v DC (10.8-17VDC)
Humidity	60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Shock and Vibration	100,000 cycles of 20 G
Storage Temperature Range	4°F to 140°F (-20°C to 60°C )
Waterproof rating	IPX7 with card door closed

GPS

Correction	DGPS, WAAS
Time to First Fix	30s

MFD

Cartography included	C-Map World Base Map
Cartography supported	C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+)C-MAP GenesisGenesis LiveC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners(No Photo/Satellite Overlay)
External Storage	Micro SD Card(32 gb Max)
GPS	1 Hz GPS GLONASS WAAS EGNOS MSAS
Sonar (inc. compatibility)	Integrated: CHIRP Broadband DownScan
Waypoints, Routes, Tracks	3000 Waypoints 100 Routes 100 Trails
Compass Safe Distance – Metric, imperial	12″ (300mm)

Physical

Dimensions (W x H x D)	9.31″ (236.4 mm) x 6.46″ (164.2 mm) x 4.42″ (112.3 mm)
Mounting Type	Gimbal Bracket Front Dash Flush Mount
Weight	1.25 lb (0.57 kg)

Other

Warranty Period	1 Year + 4 additional years ofupgrade options. Totaling 5 years
Interface	Keypad: 8-way directional keypad Zoom +/-Exit Enter/Menu Waypoint/Cursor Power/Light Pages
Languages	Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Weight	5,4 kg
Dimensions	26 × 37 × 5,4 cm
SKU	000-15543-001
Brand	Lowrance
Class Type	MFD
GTIN	9420064114788
Component	Head/Display
Family	Lowrance Hook Reveal
Item Type	Main Product
Model	Lowrance Hook Reveal 7 Ice
