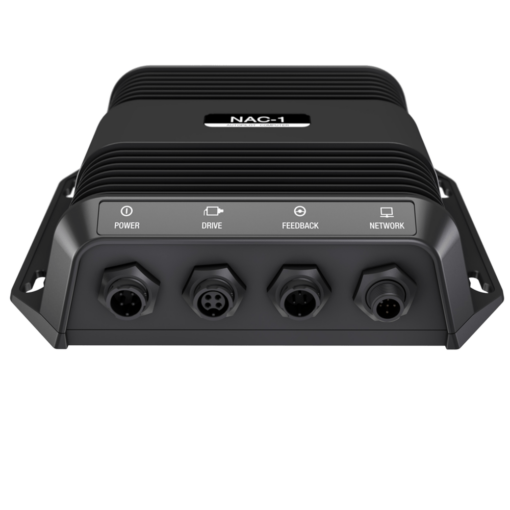

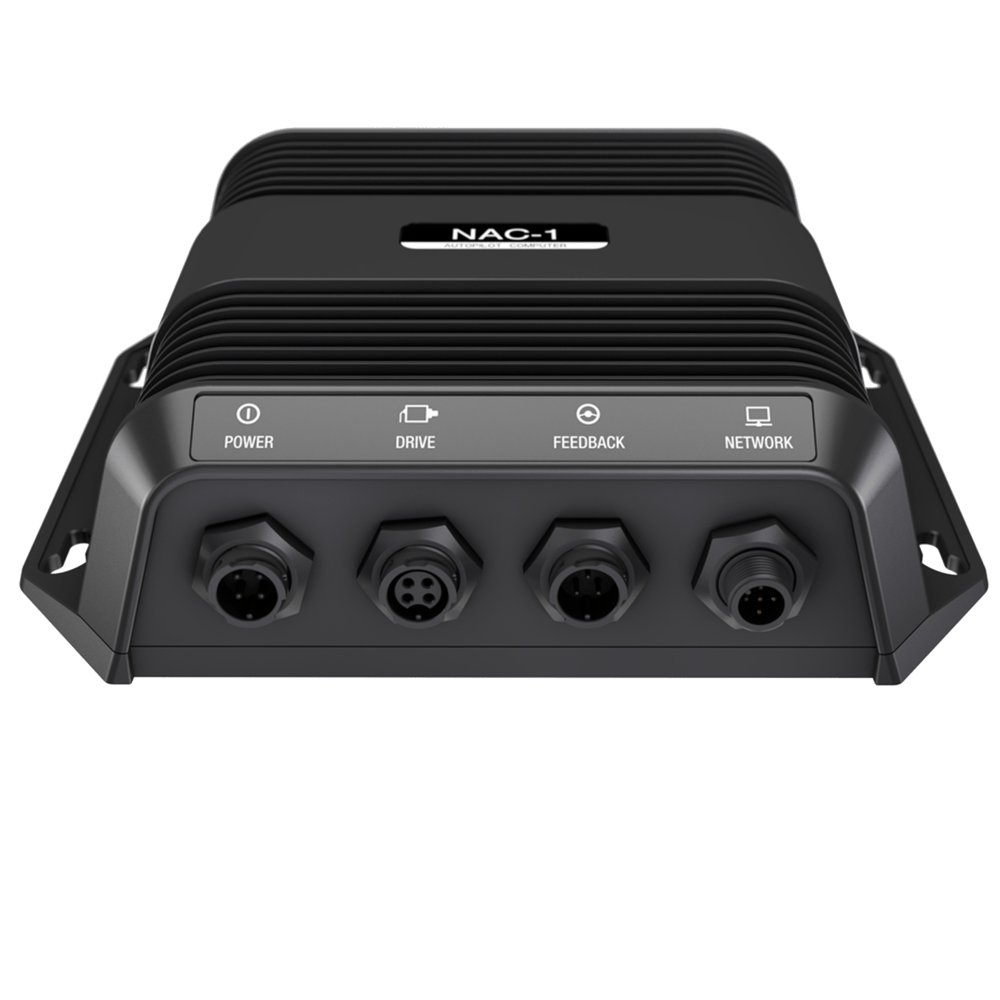

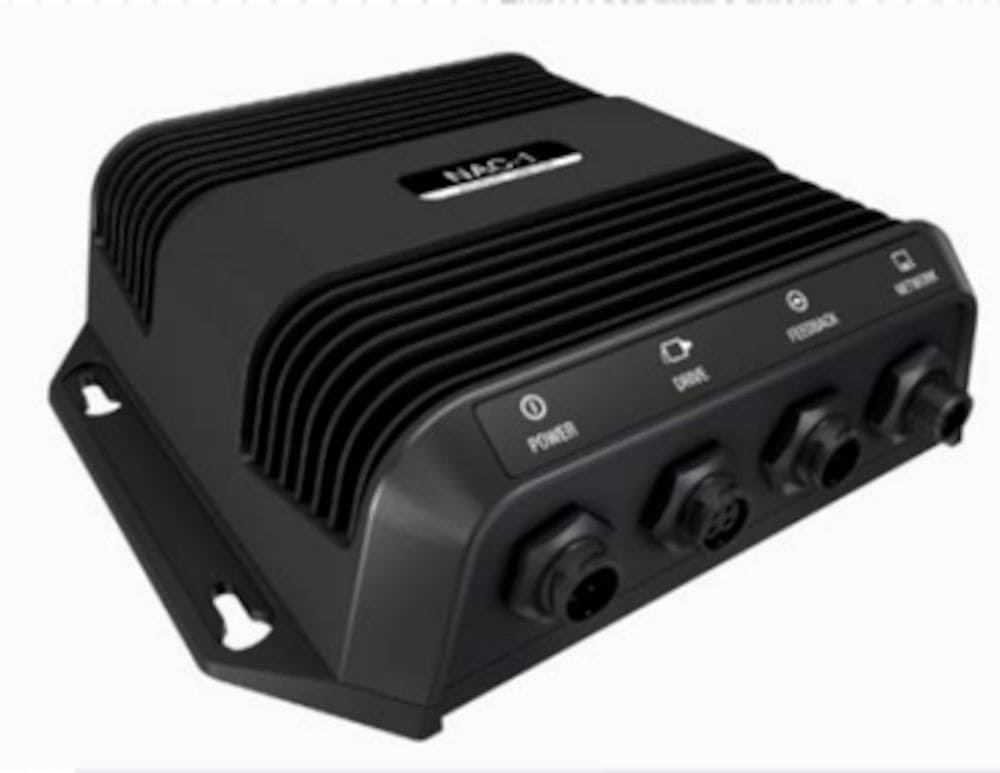

Navico NAC-1 Autopilot Computer – The brains behind the Outboard Pilot and Drive Pilot systems

Easy Installation

Plug-and-play connectors facilitate easy installation, minimising the wiring necessary to install your autopilot system. Industry-standard NMEA 2000® networking offers simple connectivity to heading sensors, rudder feedback units, and multifunction displays located anywhere on board.

Hydraulic and Cable Steer Options

The NAC-1 Autopilot Computer is recommended for boats up to 9 metres (30 feet) in length. It been designed to reliably drive either the Simrad PUMP-1 reversible hydraulic pump for hydraulic-steered outboards, or the HELM-1 drive unit for cable-steered vessels.

Virtual Rudder Feedback

Simrad Virtual Rudder Feedback technology eliminates the need to install a separate rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats with planing hulls. This reduces overall autopilot system cost and complexity, and is ideal where a feedback unit is impractical due to mechanical constraints.

• Reliable autopilot performance based on Continuum Steering technology.
• Recommended for boats up to 9 metres (30 feet) in length.
• Compatible with the Simrad PUMP-1 reversible hydraulic pump and HELM-1 cable steer drive unit.
• Virtual rudder feedback for simplified installation aboard outboard and sterndrive boats.
• Supports Simrad RF25 rudder feedback units.
• Plug-and-play connectors for easy installation.
• NMEA 2000® connectivity to heading sensors, rudder feedbacks, and multifunction displays.

Autopilot

Compass sensor support	NMEA2000
Max Stroke	n/a
Drive output	12VDC, Rev. Motor control 8A, 16A peak (1sec.)
Engine Drive systems integration	Reversible pump/Helm Drive
Manouevres / Turn Patterns	n/a
Rudder sensor support	VRF, 0-5V, RF25
Steering Modes	n/a

Connectivity

NMEA 0183 Sentences supported	n/a
Bluetooth	n/a
NMEA 0183	n/a
NMEA 2000	1x CAN Micro-C port, 3 LEN
PC Connectivity	n/a
WiFi	n/a

Display

Backlight Color	n/a
Resolution	n/a
Size and Type	n/a
Viewing Angles	n/a

Electrical

Power Consumption, max.	140mA + Drive unit load
Power Consumption, typical	140mA + Drive unit load
Recommended Fuse Rating	20A
Supply Voltage	9-16VDC

Environment

Operating Temperature Range	-25C to +55C (-13F to +131F)
Storage Temperature Range	-30C to +70C (-22F to +158F)
Waterproof rating	IPx5

MFD

Compass Safe Distance – Metric, imperial	0,5m (19,7″)

Physical

Dimensions (W x H x D)	204 x 190 x 57mm (8,03 x 7,5 x 2,24″)
Mounting Type	Bulkhead
Weight	0,6kg (1,3 lbs)

Other

Warranty Period	2 years
Interface	n/a
Languages	n/a

SKU	000-11769-001
Brand	Navico
Family	Outboard Pilot
GTIN	9420024134757
Model	Computer
Class Type	Autopilot
Component	Processor/Computer/Ethernet Module
Item Type	Spare Active
