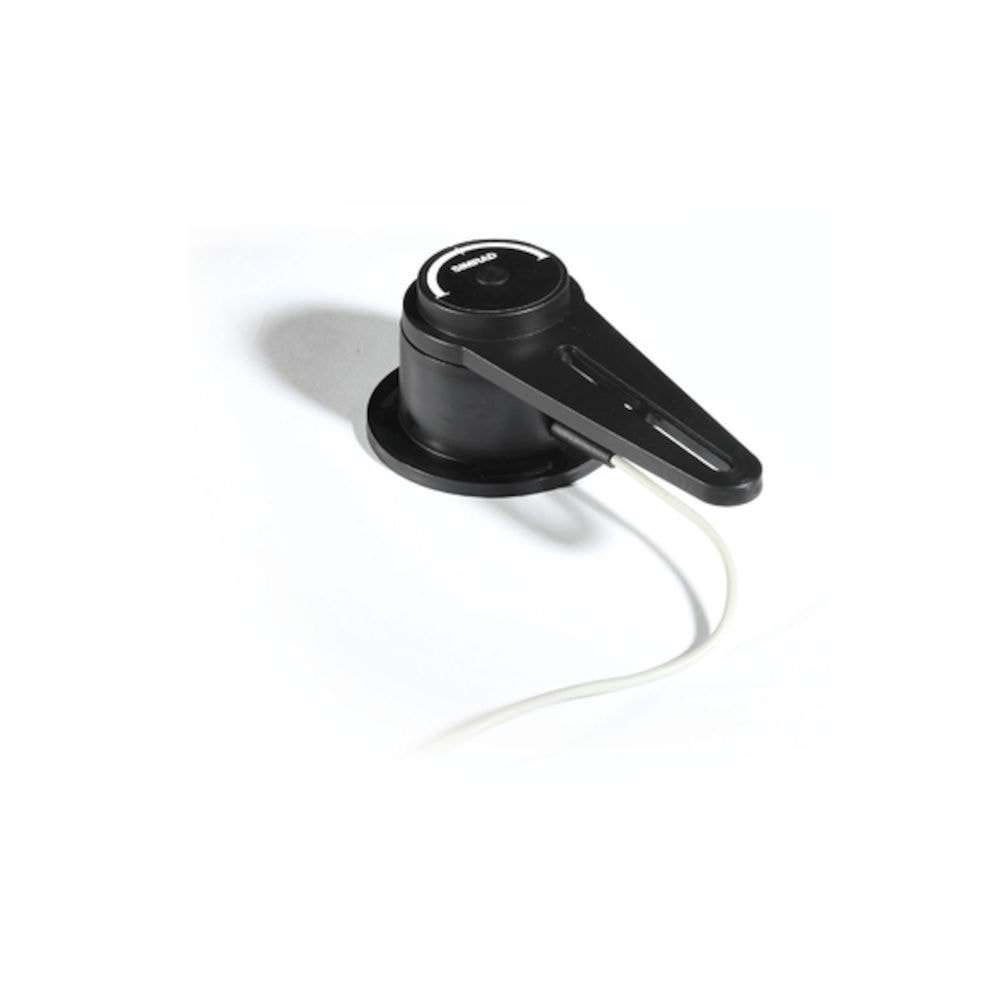

Navico RF40 medium-duty Rudder Feedback Unit for use with NAC-1 and NAC-2 autopilot

Rudder Feedback for Smooth and Accurate Steering

The RF40 is a medium-duty rudder feedback unit for use with NAC-1 and NAC-2 autopilot systems. Rudder feedbacks measure and report actual rudder angle to your autopilot computer, enabling precise rudder control for smooth and accurate steering.

Direct Connection for Simple Plug-and-Play Installation

The RF40 is designed for direct connection to NAC-1 and NAC-2 autopilot computers, with variable voltage output and an attached 15 metre (49 foot) cable with plug-and-play connector. The connector can be easily removed for use in other applications. Its extended cable and direct connection make the RF40 an ideal alternative to NMEA 2000® connected sensors, such as the RF25, in situations where it is impractical or otherwise unnecessary to extend a vessel’s NMEA 2000® network within reach of the rudder.

• ±120-degree rudder angle measurement.
• Plug-and-play connection to NAC-1 and NAC-2 autopilot computers.
• 15 metre (49 foot) attached cable.

Weight	0,866 kg
Dimensions	10,79 × 38,73 × 6,98 cm
SKU	000-14439-001
Brand	Navico
Family	Sensor – Rudder
GTIN	9420024172070
Model	RF40
Class Type	Autopilot
Component	Sensor/Transducer/Scanner/Antenna
Item Type	Main Product
