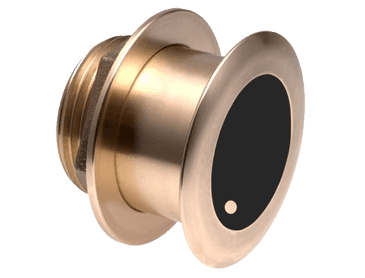

Navico Xsonic Airmar B175M (20°)
Original price was: 1.539,00 €.1.385,10 €Current price is: 1.385,10 €.
You save
XSONIC Airmar B175M (20°)
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
Medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1,500′) and delivers ultra-clear target resolution.
The B175M transmits across the Medium Chirp frequency 85 to 135 kHz
Tilted Element™ transducers have the element fixed at a 20° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
- Fixed 20° tilted version for 16° to 24° hull deadrise
Details
- Depth and water-temperature sensor
- 1 kW with a maximum depth of 457 m (1,500′)
- Medium frequency: 85 to 135 kHz
- 16° to 11° beamwidth
- 50 kHz of total bandwidth from one transducer
- Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
- Low-profile, thru-hull housing provides good resolution at speed when installed properly
- Bronze housing for use on stepped, planing or displacement hull
Additional information
| Weight | 5,17 kg |
|---|---|
| Dimensions | 19 × 26,7 × 26,8 cm |
| Brand | |
| Class Type | |
| Component | |
| Family | |
| Item Type | |
| Model | |
| sku | |
| GTIN |
