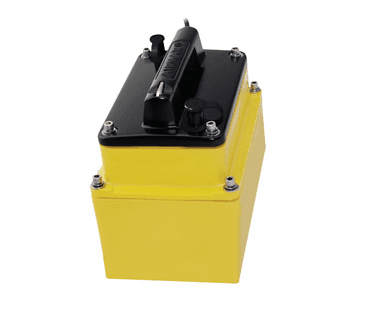

Navico XSONIC AIRMAR M260
1.067,11€
XSONIC AIRMAR M260. The M260 is a plastic/urethane, in-hull Broadband transducer, ideal for smaller sportfishing and commercial vessels 8 m (25 ft) and up, fishing in depths of less than 900 m (3000 ft). Black 9 Pin connector: Available Q1 2017.
Detailed Information
Product Description
Key Features
- 50 kHz with 19° beam width.
- 200 kHz with 6° beam width.
- Up to 900 m (3000 ft) range at 50 kHz.
- 8 internal broadband ceramics.
- In-Hull with plastic/urethane housing and yellow in-hull tank (can mount in existing M260 installed tanks).
- Suitable for fiberglass hulls.
- Ideal for sportfishing and commercial vessels 8 m (25 ft) and up.
- Recommended for use with the SonarHub sounder module.
The dual-frequency M260 includes an array of seven ceramic elements delivering 50 kHz with a 19° beam width, and a single 200 kHz element with a 6° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.
Product Details
- 50 kHz with 19° beam width.
- 200 kHz with 6° beam width.
- Up to 900 m (3000 ft) range at 50 kHz.
- 8 internal broadband ceramics.
- In-Hull with plastic/urethane housing and yellow in-hull tank (can mount in existing M260 installed tanks).
- Suitable for fiberglass hulls.
- Ideal for sportfishing and commercial vessels 8 m (25 ft) and up.
- Recommended for use with the SonarHub sounder module.
Additional information
| Weight | 5,125 kg |
|---|---|
| Dimensions | 26,035 × 29,21 × 20,32 cm |
| SKU | 000-13914-001 |
| Brand | |
| Family | |
| GTIN | 9420024162699 |
| Model | |
| Class Type | |
| Component | |
| Item Type |
