Simrad Cruise-9, ROW Base Chart, 83/200 XDCR

The new Simrad Cruise is the most intuitive chartplotter available. Taking ease of use to a new level, Simrad Cruise is a chartplotter first and depth finder second – offering reliable GPS navigation at an affordable price. Free from complicated fishing-specific sonar and networking features, with Simrad Cruise you won’t need to master complex electronics — simply turn on your display and go.

Pre-loaded with a worldwide basemap, the sunlight viewable display comes with a mounting bracket and transducer. Installation is easy, requiring only a power and sonar cable – eliminating the hassles of networking multiple modules and pulling miles of cable. The user interface is controlled with a rotary dial and keypad, ensuring smooth navigation through menus and provides the vital information needed for a safe and enjoyable time on the water – speed, depth, GPS location, course, battery level and temperature information. The included CHIRP Sonar transducer provides excellent automatic depth tracking for worry-free operation without the need for fine tuning or pre-programming. Pre-selected display views consist of: chart, sonar, navigation, chart/sonar, chart/navigation and sonar/navigation.

Available in 5-, 7- and 9-inch versions, Simrad Cruise can be dash-mounted or bracket-mounted to fit any boat’s helm station. Take your charts to the next level with a wide selection from C-MAP® and Navionics® for increased level of detail and C-MAP® Easy Routing. The display is ideal for installation in open air vessels such as bay, deck, ski and wakeboard boats, bow riders and tenders.

Connectivity

NMEA 0183 Sentences supported	No
Bluetooth	None
Ethernet	None
N2K PGNs	N/A
NMEA 0183	None
NMEA 2000	None
PC Connectivity	None
Video	None
WiFi	None

Display

Backlight Color	White
Resolution	800×480
Screen Brightness	1000 nits
Viewing Angles	70° top/bottom, 70° left/right

Electrical

Power Consumption, max.	19.4 W
Recommended Fuse Rating	3A
Supply Voltage	10 – 17 V DC

Environment

Operating Temperature Range	“-15°C to +55°C (5° F to 131° F)
Waterproof rating	IPX 6 and 7

MFD

AIS	N/A
Autopilot	N/A
Cartography included	Worldwide Base Map
Digital Switching	N/A
External Storage	1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
GPS	Internal, 1Hz, WAAS, MSAS, EGNOS
Multimedia	N/A
Radar (inc. compatibility)	N/A
Sonar (inc. compatibility)	Integrated CHIRP. 8 Pin push fit connector
Weather	N/A

Physical

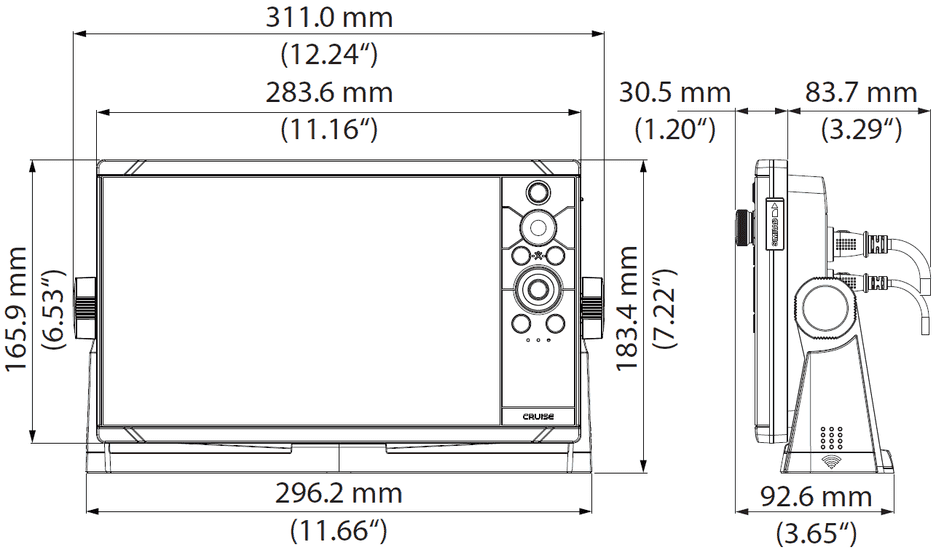

Dimensions (W x H x D)	311 mm x 165.8 x 92.6 mm (12.24″ x 6.53″ x 3.65″) (with bracket)
Mounting Type	Bracket or Panel

Other

Warranty Period	2 Years
Interface	Directional cursor button and rotary dial
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Weight	4,6 kg
Dimensions	21,91 × 30,16 × 4,6 cm
SKU	000-15000-001
Brand	Simrad
Class Type	MFD
GTIN	9420024179352
Component	Head/Display
Family	Simrad Cruise
Item Type	Main Product
Model	Simrad Cruise 9
