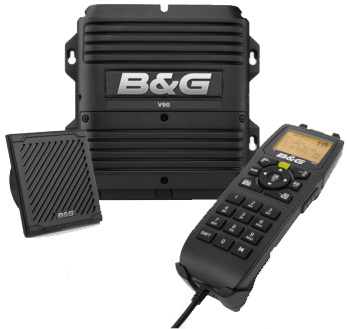

B&G V90 Black Box VHF and AIS Receiver System with Handset and Speaker

B&G’s powerful V90 VHF radio blends intelligent design with advanced engineering in a rugged, reliable and feature-packed sailing communications device. With all the major components housed in a discreet black box below deck, the stylish handset is the unit’s only visible component, making it neat and easy to store.

The V90 can support an impressive 6 handsets (4 wired, 2 wireless), giving it the scalability you need. The handset is encased in rubber, for durability and a confident grip in all weather conditions with large, backlit display and alpha numeric keyboard for supreme readability and operability.

With optional scrambler and private channels, you have the option of keeping your position a secret – ideal when enjoying the privacy of a hidden cove or when you’ve found the perfect place to fish. With NMEA 2000 connectivity, you can share data with your multifunction display, tracing and navigating to a friend’s position by activating the clever ‘Track my Buddy’ tool.

The integral 2 channel AIS receiver shows targets on your MFD; use the built-in loud hailer to alert those around you – simply press the convenient button, no need to lift the handset. A smart ‘Record and Replay’ function makes sure you never miss a vital message – recording the last 30 seconds for you to review or clarify detail. Plus intercom facility for swift and clear communication between crew members.

• Modular VHF Radio.
• Class D DSC.
• Up to 6 Stations: 4 Wired handsets and 2 HS35 Wireless handsets.
• Intercom Function.
• Dual Channel AIS Receiver.
• Integrated Speaker Handset Mic.
• Advanced Radio Features including AIS plot, Waypoints, Navigation and NMEA2000 Data.
• DSC Calling from Compatible Simrad MFD’s.
• Position Poll, Track and Group Call.
• Dual/Tri Watch.
• Lat/Long Display.
• Loud And Clear Audio including 22 Watt Hailer with listenback.
• Record and Playback feature.
• NMEA 0183®.
• NMEA 2000 Compatible.

Approvals

Compliance	ITU-R M493-13 US Models; EN300-338-3 EU Models

Communications

Channels	55 INT;53 USA; 61 CAN; 10 Weather
DSC Class	Class D
Frequency Range	Tx MHz 156.025 To 157.425 ; Rx MHz 156.025 To 163.275
Hailer Function	30W @ 4 Ohms
Handset type	Handset
Horn Function	30W
Intercom	4 Wired Stations 1 Wireless
Multiple Stations	4 Wired Stations with Additional 2 HS90 Wireless Remotes
Transmit Power	23 +/- 2 W

Connectivity

NMEA 0183 Sentences supported	Output:DSC,DSE,VDM Input:RMC,GGA,GLL,GNS
N2K PGNs	127250;127258;129025;129026;129029;129033;129038;129039;129040;129041;129283;129284;129285;129792;129793;129794;129795;129796;129797;129798;129799;129800;129801;129802;129803;129804;129805;129806;129807;129808;129809;129810;130074;130842
NMEA 0183	2x Tx, 1x Rx NMEA 0183, Baud Rate 4,800 -38400
NMEA 2000	1x NMEA 20000 Micro-C port, 1 LEN

Display

Backlight Color	Amber
Resolution	128x156px

Electrical

Battery	12V DC
Power Consumption, max.	78W
Recommended Fuse Rating	10A
Supply Voltage	12VDC

Environment

Operating Temperature Range	-20ºC to +55ºC (-4ºF to 131ºF)
Waterproof rating	JIS-7

MFD

Compass Safe Distance – Metric, imperial	0.5m (1.5′)

Physical

Dimensions (W x H x D)	211.2 x 6.50 x 195.7mm ( 8.31 x 2.56 x 7.7″ )
Mounting Type	Bracket

Other

Warranty Period	2 Years
Interface	Keypad controls

Weight	3,5 kg
Dimensions	26,2 × 40,8 × 12,5 cm
Brand	B&G
Family	VHF -Fixed Mount
Model	V90
Class Type	VHF
Component	Packaged Systems
Item Type	Main Product
