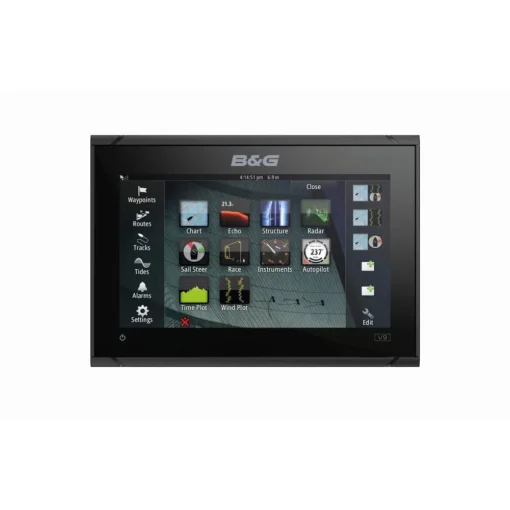

B&G Vulcan has an easy-to-use, intuitive, multi-touch screen. Use the familiar pinch to zoom and swipe to pan actions to explore the many benefits to make your life on the water easier and safer; add waypoints and plan your route with ease.
Dedicated Sailing features for cruising and racing

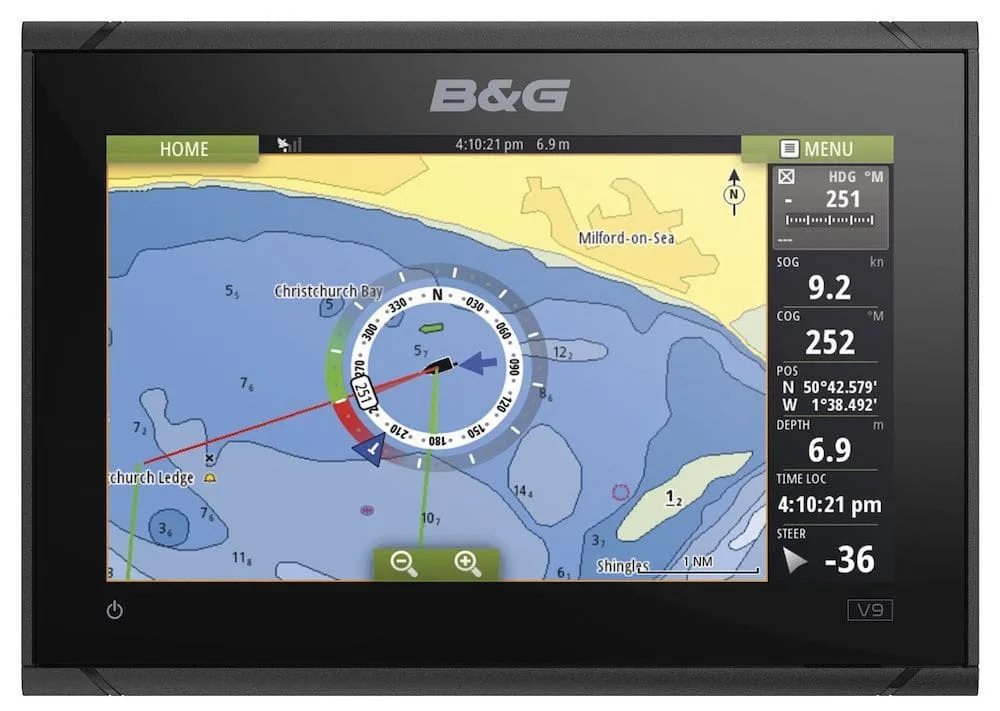

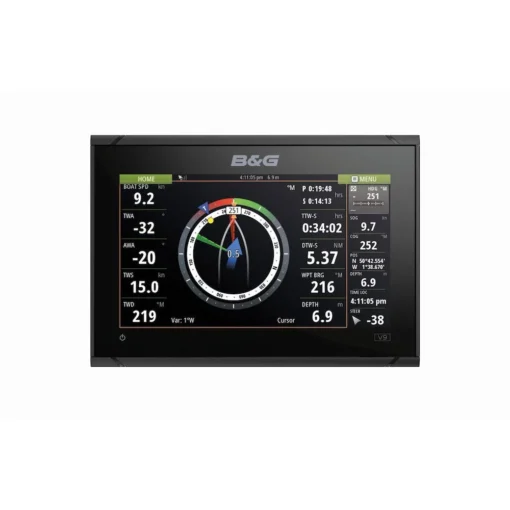

With B&G’s award-winning sailing functions, you can see all of your key sailing data together on one screen, or overlaid on charts for the modern sailor’s ultimate navigational view. Simply add sailing instruments and sensors to activate B&G SailSteer, which will provide an intuitive graphic display of your Boat Speed, Wind data, Heading, Tide, Wind Shift Sectors and even Laylines. It’s easy to add waypoints or plot a course; and with B&G SailingTime you’ll see waypoint arrival times based on a sailing course and tidal effects, rather than a straight-line calculation.

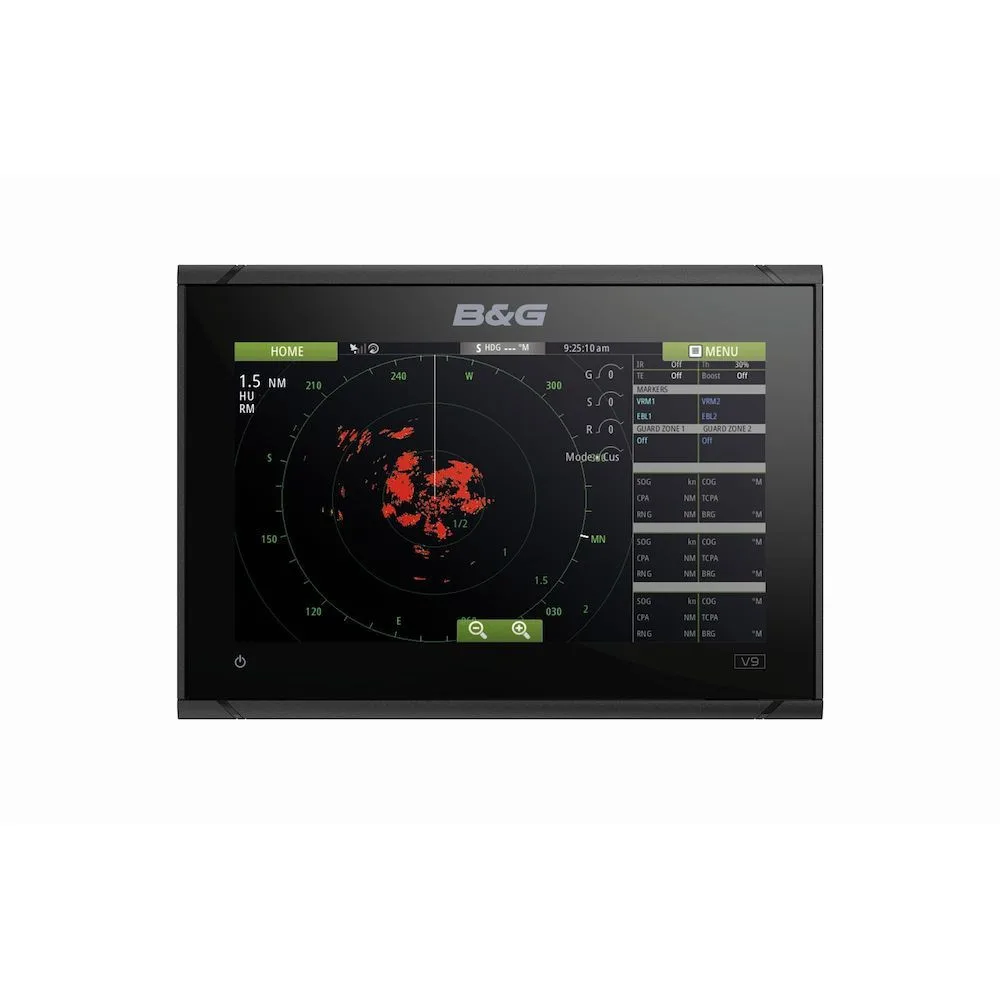

Get more from your Vulcan by expanding your system via the industry-standard NMEA 2000® network. You can add sailing instruments and sensors, as well as autopilot, Broadband Radar™, ForwardScan™ or SonicHub™ to create a system to suit your needs. Vulcan can be used as a secondary autopilot controller providing easy access to Intelligent Sail Steering, manual and auto steering functions, and Smart Maneuver functionality combined with intuitive menus for ultimate control. B&G Broadband 3G™ or 4G™ Radar integrates with Vulcan to keep watch as you sail, with the ability to identify and track targets from 36 nautical miles away (4G) to right off the bow.
With the addition of a ForwardScan™ transducer, you can see what lies ahead under the water with approaching depth information. Explore poorly-charted or unfamiliar waters confidently.
Vulcan features built-in Wi-Fi and offers easy access to selected online services, including PredictWind weather forecasts and routing, via marina or smartphone hotspots. Or use the Wi-Fi to mirror the screen of your Vulcan 9 to a compatible smartphone or tablet, for a cost-effective dual-station solution you can take anywhere on board.
- Easy to use multi-touch display.
- Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines.
- Easy to integrate – Connect Vulcan to an existing system and add basic sailing components.
- Broadband Radar™ and ForwardScan™ ready.
- Integrated Wi-Fi.
- Control your B&G Pilot.
- Instrument data display.
|Compliance||CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1|
|Manouevres / Turn Patterns||U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking|
|Steering Modes||Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)|
|Charts Supported||Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)|
|NMEA 0183 Sentences supported||Exports NMEA0183 over WiFi|
|Ethernet||1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)|
|N2K PGNs||Receive 59392, 59904, 60928, 126208, 126992, 126996, 127237, 127245, 127250, 127251, 127257, 127258, 127488, 127489, 127493, 127503, 127504, 127505, 127506, 127507, 127508, 127509, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129038, 129039, 129040, 129041, 129283, 129284, 129539, 129540, 129794, 129801, 129283, 129284, 129539, 129540, 129794, 129801, 129802, 129808, 129809, 129810, 130074, 130306, 130310, 130311, 130312, 130313, 130314, 130576, 130577, Transmit 126208, 126992, 126996,127237, 127250, 127258, 128259, 128267, 128275, 129025, 129026, 129029, 129283, 129284, 129285, 129539, 129540, 130074, 130306, 130310, 130311, 130312, 130577|
|NMEA 2000||1 x NMEA 2000 Micro-C port, 1 LEN|
|Backlight Color||White, Red|
|Screen Brightness||1200 nits|
|Size and Type||WVGA Colour TFT LCD|
|Viewing Angles||80° top/bottom, 80° left/right|
|Power Consumption, max.||20 W|
|Power Consumption, typical||12 W|
|Recommended Fuse Rating||3A|
|Supply Voltage||10 – 17 V DC|
|Operating Temperature Range||“-15°C to +55°C (5° F to 131° F)|
|Shock and Vibration||CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1|
|Storage Temperature Range||“-20°C to +60°C (4°F to 140°F)|
|Waterproof rating||IPX6 and 7|
|Correction||WASS, MSAS, EGNOS, GLONASS|
|GPS Receiver Channels||32 Channels|
|Position Accuracy||Horizontal Accuracy 3 m (9.8 ft.)|
|Time to First Fix||Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec|
|Update rate||10 Hz|
|AIS||Receive AIS data over NMEA 2000 only|
|Autopilot||Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission|
|Cartography supported||Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)|
|Digital Switching||BEP C-Zone|
|External Storage||2 Micro SD slots, max. 32GB each. >32 GB format to NTFS|
|GPS||Internal, 10Hz, WASS, MSAS, EGNOS|
|Multimedia||via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only|
|Radar (inc. compatibility)||Halo, Broadband, HD Radars|
|Sonar (inc. compatibility)||Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector|
|Weather||SiriusXM via WM-3 (USA only), GRIB|
|Waypoints, Routes, Tracks||6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.|
|Dimensions (W x H x D)||243 mm x 171 mm x 83 mm (9.56″ x 6.71″ x 3.26″) (no bracket)|
|Mounting Type||Bracket or Panel|
|Weight||1.32 kg (2.9 lbs)|
|Warranty Period||2 Years|
|Interface||Touch screen, ZC1 or ZC2 controller via NEA 2000|
|Languages||Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian|
