Harken 10mm Bow Shackle

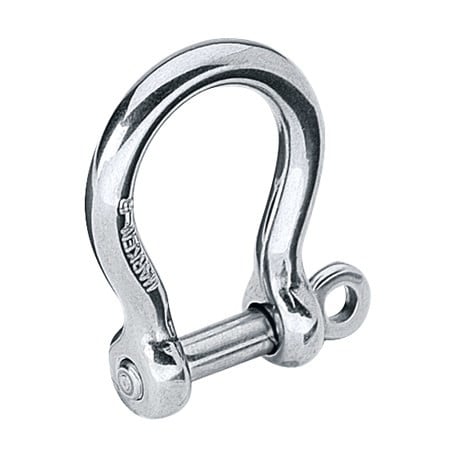

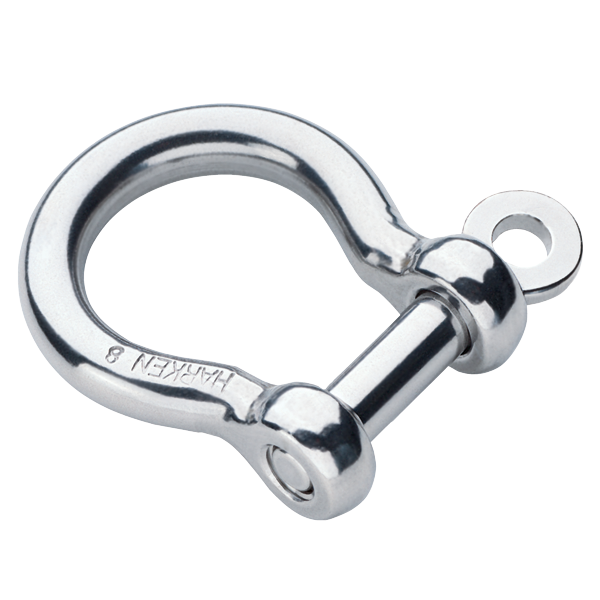

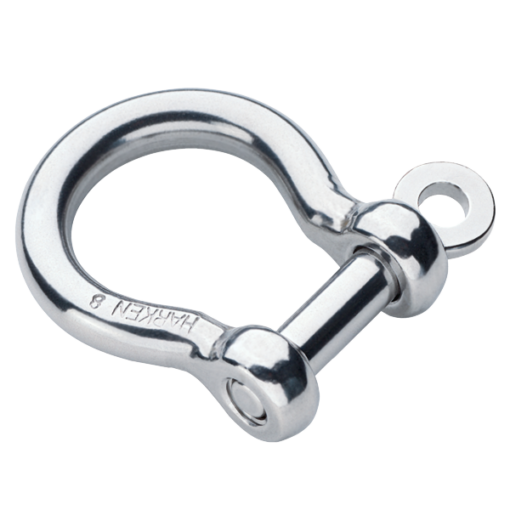

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail. Shackle pin Ø (mm) 10 mm
Shackle pin Ø (in) 13/32 in
Weight (g) 138.5 g
Weight (oz) 4.88 oz
A (mm) 48 mm
A (in) 1 7/8 in
B (mm) 22 mm
B (in) 7/8 in
C (mm) 32 mm
C (in) 1 1/4 in
Maximum working load (kg) 2210 kg
Maximum working load (lb) 4870 lb
Breaking load (kg) 4420 kg
Breaking load (lb) 9740 lb

Brand	HARKEN
SKU	2124
GTIN	097653036005
