Harken 5mm Long Shackle

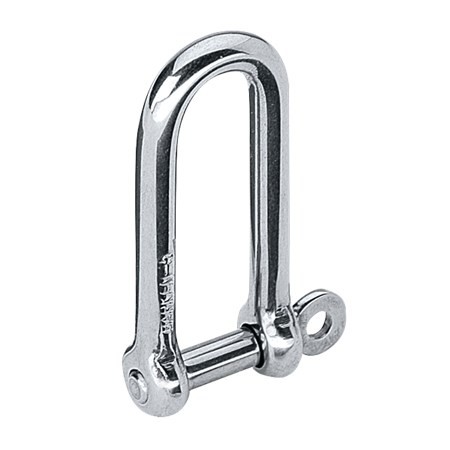

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Long shackles have a similar shape to “D” shackles but are proportionally longer for their width. Shackle pin Ø (mm) 5 mm
Shackle pin Ø (in) 3/16 in
Weight (g) 22 g
Weight (oz) 0.78 oz
A (mm) 38 mm
A (in) 1 1/2 in
B (mm) 10 mm
B (in) 3/8 in
Maximum working load (kg) 540 kg
Maximum working load (lb) 1190 lb
Breaking load (kg) 1080 kg
Breaking load (lb) 2380 lb

Brand	HARKEN
SKU	2104
GTIN	097653035800
