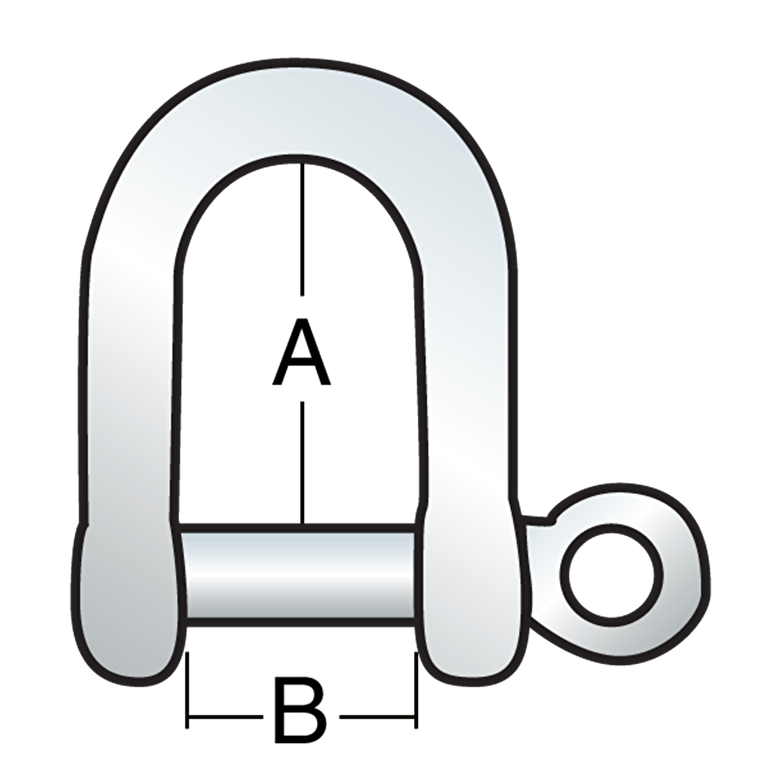

Harken 8mm “D” Shackle — High Resistance

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an “HR” imprint for easy identification. Shackle pin Ø (mm) 8 mm
Shackle pin Ø (in) 5/16 in
Weight (g) 56.7 g
Weight (oz) 2 oz
A (mm) 25 mm
A (in) 1 in
B (mm) 16 mm
B (in) 5/8 in
Maximum working load (kg) 2330 kg
Maximum working load (lb) 5130 lb
Breaking load (kg) 4650 kg
Breaking load (lb) 10260 lb

Brand	HARKEN
SKU	2116
GTIN	097653035923
