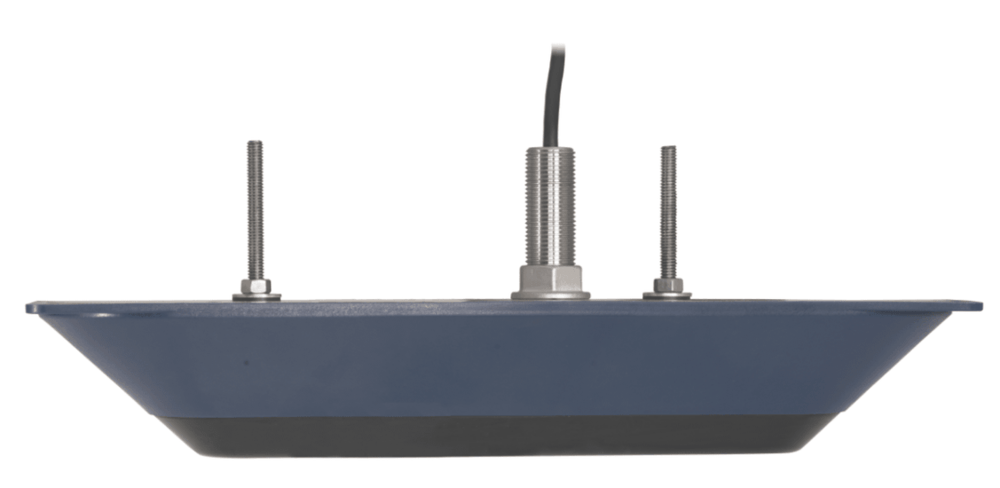

Navico TotalScan thru hull transducer with Low and High CHIRP

TotalScan thru hull transducer with Low and High CHIRP. Single transducer for flat to hull mounting or fits deadrises up to 5 degrees with fairing block.

The TotalScan™ Transducer allows anglers to access Medium CHIRP, High CHIRP, DownScan™ Imaging and StructureScan™ using only a single transducer.

• All-in-one transducer featuring Broadband, CHIRP, StructureScan HD and DownScan Imaging™.
• Supports 50/200kHz Broadband sonar frequencies.
• Supports Low and High CHIRP frequencies.
• Supports 455/800kHz StructureScan® frequencies .
• Supports Water Temperature.
• Fairing block is included in the box.

Radar

Frequencies	50/200 kHzLow/High CHIRP455/800 kHz
Max Depth	3000′ (900m) Traditional Sonar300′ (90m) DownScan Sonar300′ (90m) Each Side, SideScan Sonar
Output power	500W

Other

Warranty Period	1 Year

Weight	3 kg
Dimensions	30 × 40 × 8,5 cm
SKU	000-14259-001
Brand	Navico
Family	TotalScan
GTIN	9420024169391
Model	TotalScan ThruHull
Class Type	Sonar
Component	Sensor/Transducer/Scanner/Antenna
Item Type	Main Product
