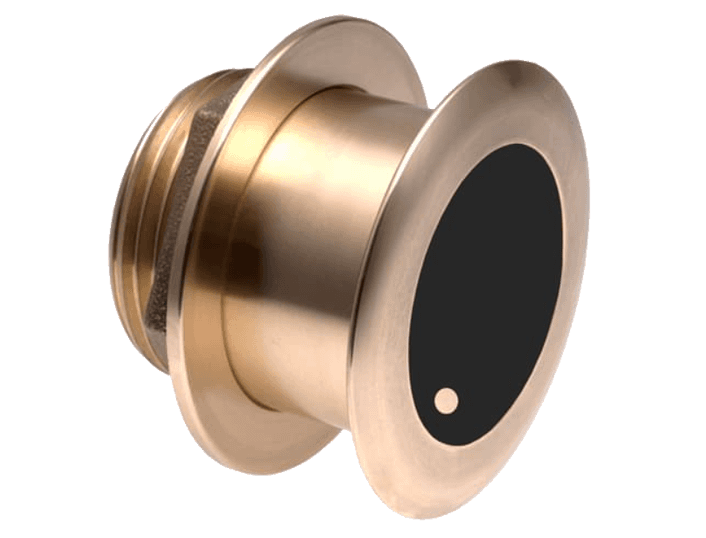

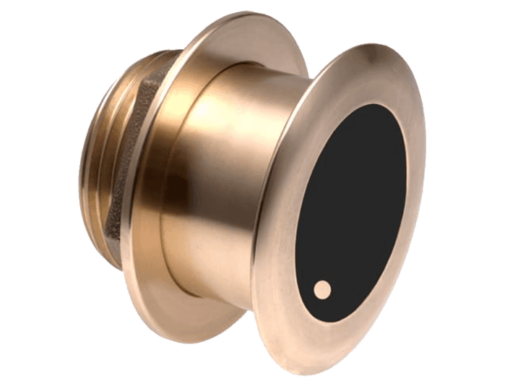

Navico Xsonic Airmar B175H-W (12°) (6ft Boatbuilder)

Name: Navico Xsonic Airmar B175H-W (12°) (6ft Boatbuilder)
SKU: 000-16197-001
Price: 1592.1 EUR
Availability: InStock

Original price was: 1.769,00 €.Current price is: 1.592,10 €.
You save

XSONIC Airmar B175H-W (12°) (6ft – Boatbuilder)

SKU: 000-16197-001 Category: Navico XSONIC B175
Brand: Navico

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

B175 H-W (12°) Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam, transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500’).

Tilted Element™ transducers have the element fixed at 12° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175HW transmits across the High Chirp frequency 150 to 250 kHz. The B175HW is available in three Tilted Element

Fixed 12° tilted version for 8° to 15° hull deadrise

Details

Depth and fast-response water-temperature sensor
1 kW with a maximum depth of 152 m (500′)
High frequency: 150 to 250 kHz
Constant 25° beam
100 kHz of total bandwidth from one transducer
Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
High wide beamwidth yields more coverage for detecting fish in the upper-water column
Low-profile, thru-hull housing provides good resolution at speed when installed properly
Bronze housing for use on stepped, planing or displacement hulls made of fiberglass or wood

Additional information

Weight	5,17 kg
Dimensions	19 × 26,7 × 26,8 cm
Brand	Navico
Class Type	Sonar – Sensors and Transducers
Component	Sensor/Transducer/Scanner/Antenna
Family	Navico Airmar Tilted Element
Item Type	Main Product
Model	Navico XSONIC B175
sku	000-16197-001
GTIN	9420064132232
