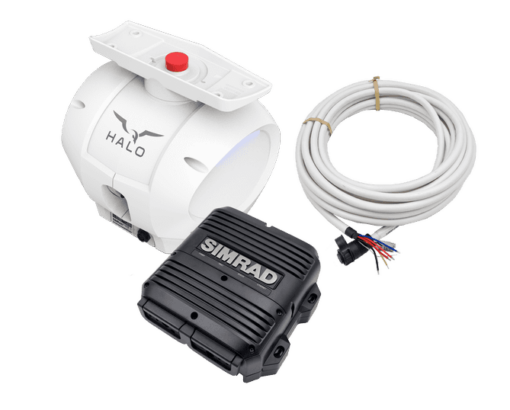

Simrad Halo 300x, RI50, 10 m (33 ft) Cable. No Antenna

More Power

HALO® 3000 radar offers a premium experience on the water. An impressive 130W of power – equivalent to a 25KW magnetron radar – delivers an unrivalled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 96 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. HALO 3000 not only increases situational awareness and collision avoidance, but also offers higher-resolution target detection you won’t find in lower-powered radars.

Bird + Mode

Designed with an intuitive interface that ensures even a novice can operate the radar, HALO 3000 makes navigation easier with smart features like Harbour, Offshore, Bird and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go.

Safer Navigation

HALO 3000 boasts an array of new features that make navigation safer and offer peace of mind.

ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets colour-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.

Building on the HALO Legacy

The next generation of pulse compression radar, HALO 3000 builds on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbours and marinas. Dual Range mode allows you to keep an eye on distant weather cells, while monitoring channel markets and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 3000 has the same footprint as its predecessor, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chartplotters, including NSS™, NSX™, NSO™ and GO™.

Details

• 50W power for longer range (from 6m to up to 72nm) and higher-resolution target detection
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation
• Easy operation with Harbour, Offshore, Weather, and Bird modes
• Track up to 50 targets with ZoneTrack
• VelocityTrack Doppler technology for collision avoidance
• Dangerous Target Alerts for radar and AIS targets
• Ready instantly from standby, and in 16-25 seconds from power-on
• Available in 3-, 4- and 6-foot arrays

Especifications

Approvals

Compliance	FCC/IC/RED Type Certification : HALO 3000 SERIES; FCC ID: RAYHALO3000 (Navico Inc.) IC ID: 978B-HALO3000 (Navico Inc.) EU RED: Emissions compliant to SM1541-4 (including -40 dB/dec future design objectives) and EN302-248 V2.1.1

Connectivity

Ethernet	Via RI-50, 1 x 100 Mbit RJ45 Adapter to 5 pin yellow supplied)
NMEA 0183	Via AT-10 HD or MFD
NMEA 2000	No NMEA 2000 Connection. Heading and other navication data is sent to the radar over the Ethernet network

Electrical

Power Consumption, max.	250 W (peak, 12V) at maximum wind velocity
Recommended Fuse Rating	25 A for 12 V systems or 15 A for 24 V
Supply Voltage	Radar system input 12 OR 24 V DC into the RI-50; 12 V Systems 10.8 – 15 V DC, 24 V Systems 20 – 31.2 V DC. Pedestal voltage input is 50 V DC nominal generated by RI-50

Environment

Operating Temperature Range	-25°C to +55°C (-13°F – 131°F)
Shock and Vibration	IEC60945 Exposed product
Waterproof rating	IPX6

MFD

Compass Safe Distance – Metric, imperial	STD. 1.0 m (3.3 ft) Steer 0.5 m 1.6 ft)

Physical

Dimensions (W x H x D)	324 mm x 429 x 339 mm (12.76″ x 16.81″ x 13.35
Weight	Kit weight 23.5 kg (51.8 lbs)

Radar

Max Range, scale	96 nm
Max Operating Wind Speed	80 Knots (all antenna sizes)
Min Range, scale	75 m (300 ft)
Radar Modes	Head Up, North Up
Radar Technology	Pulse Compression
Rotation speed	16 to 48 rpm depending on operating mode.
SART/RACON Trigger	Yes – trigger distance: about 1nm max – weather, seastate, and SART position dependent

Other

Warranty Period	2 Years
Interface	Simrad MFD

Weight	28,21 kg
Dimensions	45 × 45 × 53 cm
Brand	Simrad
Class Type	Radars
Component	Packaged Systems
Family	Simrad Radar – Halo
Item Type	KIT
Model	Simrad HALO-PED
sku	000-15948-001
GTIN	9420064128068
