Product Description
Key features
-4.1” colour screen
-Bonded glass display
-Single “do it all” display
-Straight-forward user interface

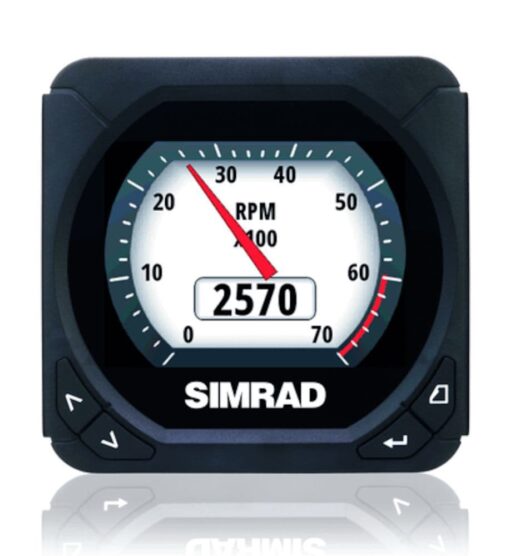

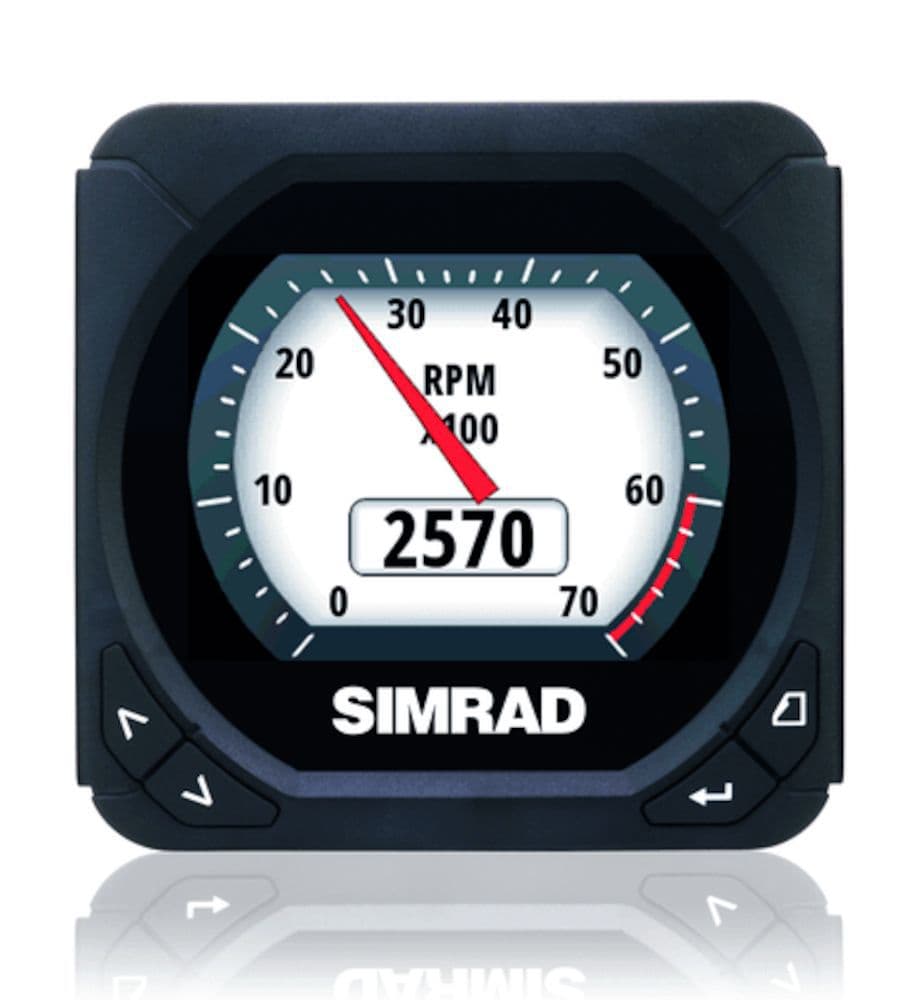

-Engine data display

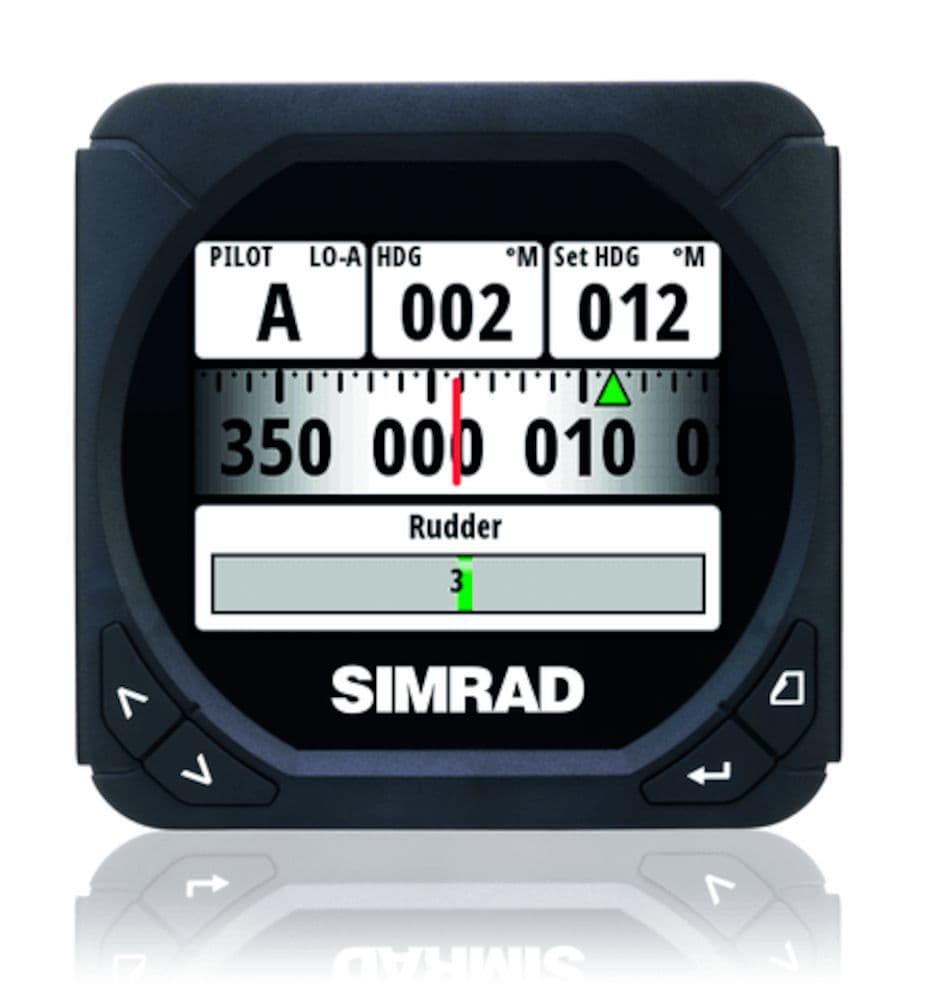

-Dedicated autopilot control via OP10, or interface autopilot with NSS, NSE or NSO MFDs
Large Multi Data Display

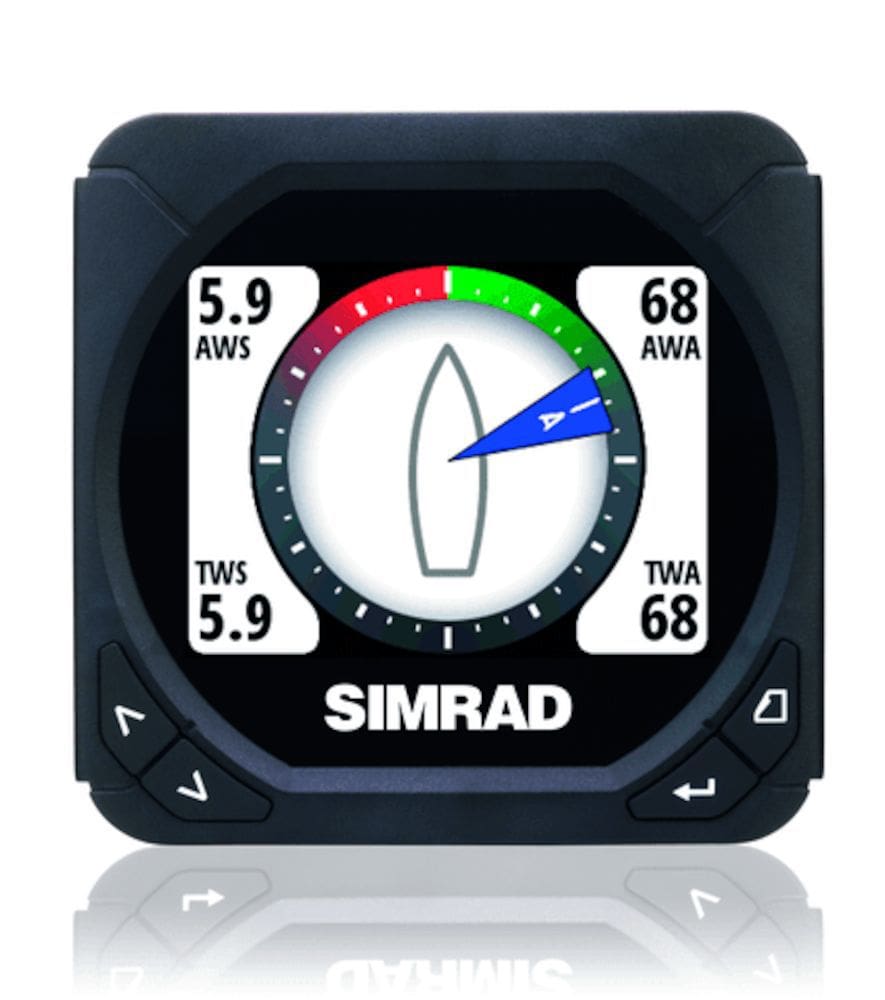

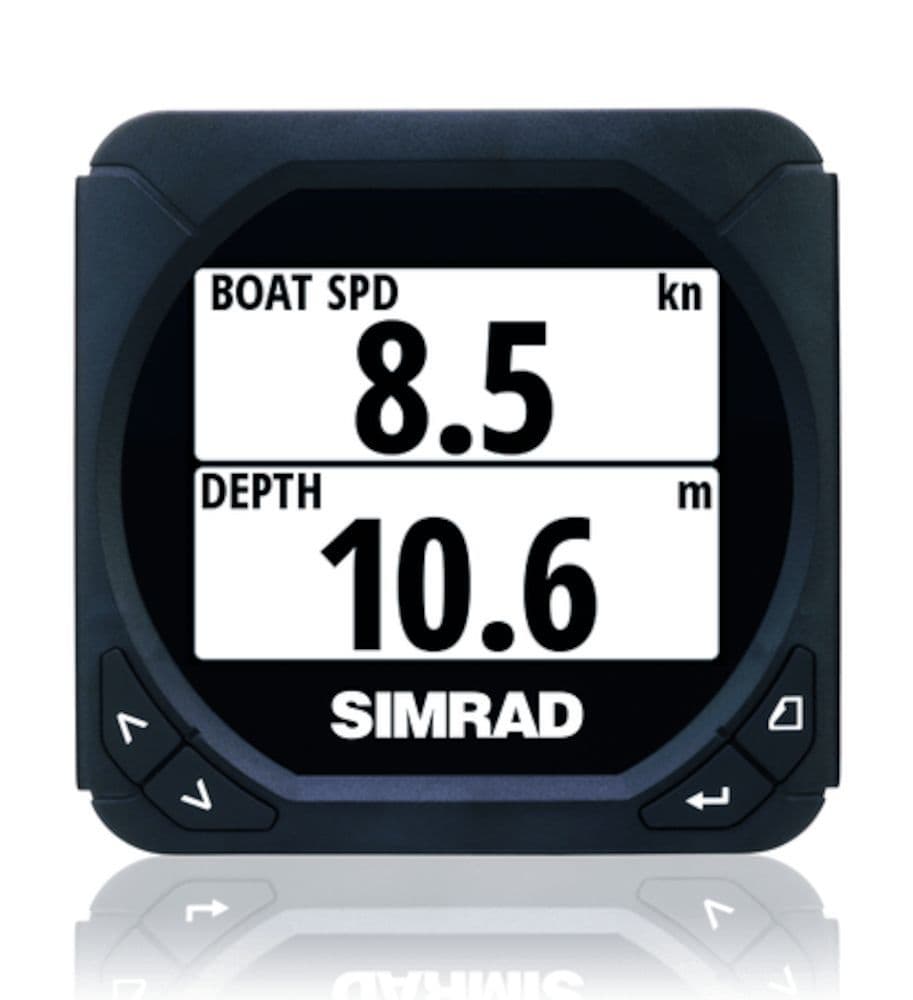

A tough, sunlight viewable screen, with clear digits and a display that’s almost 40% larger than its rivals. Read wind speed, depth, boat speed, heading, autopilot status, engine data and much more.
The IS40 4.1” screen is nearly 40% larger by area than a 3.5” screen
The IS40 screen is brightest in class at 800nits
Full Colour
Enjoy an extremely clear, bright display with the latest LCD technology, day or night
Bonded LCD
Greater contrast for excellent readability with a massive 170˚ viewing angle. Zero condensation ensures a clearly visible screen in all seasons providing outstanding longevity and durability.
IS40 utilizes bonded display technology, providing…
-Enhanced contrast. No internal reflections, enhances contrast and ease of viewing
-Increased durability. Optical glass window is far more scratch resistant than cheap acrylics used by most manufacturers
-Zero condensation. No air gap between display and window ensures no condensation
Easy To Use

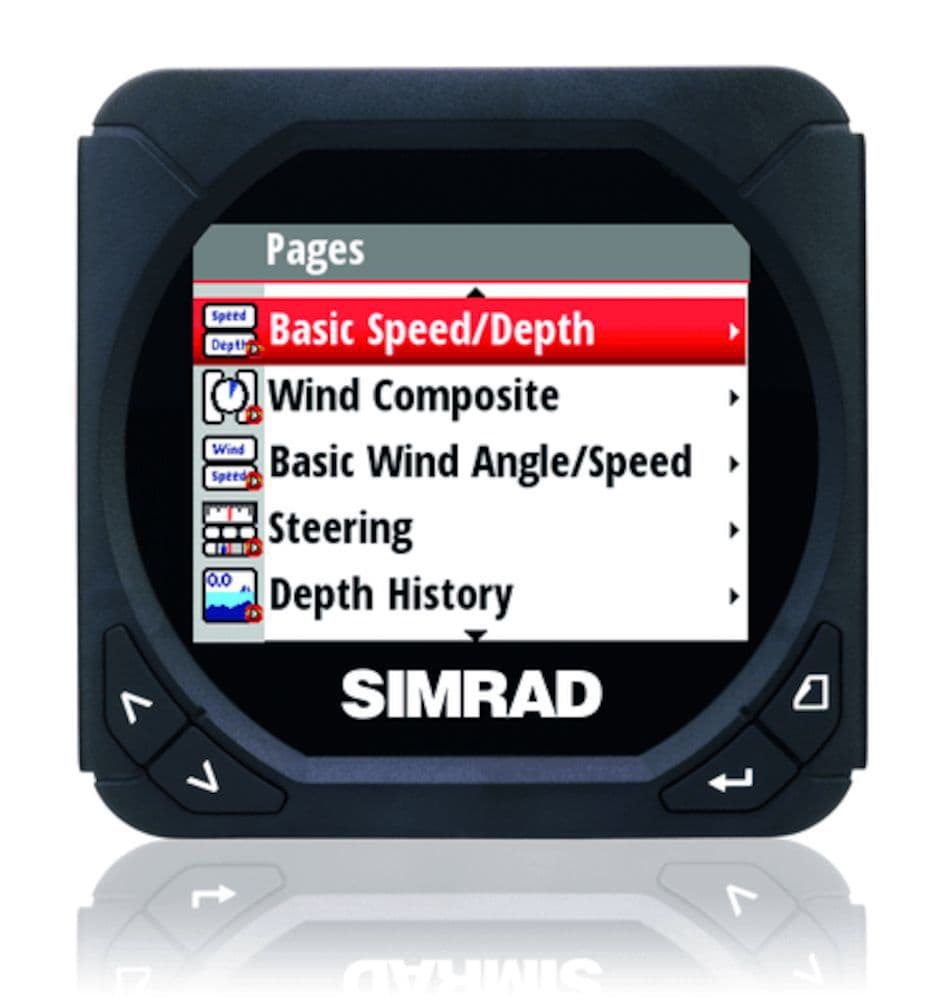

Large keys, a dedicated Page button and straight forward menus allow instant access to the data you require.
Network
IS40 utilises Micro-C network hardware
-Flexible. Micro-C to Simnet conversion cables available for adding to existing Simnet networks
-“Daisy-chaining”. IS40 displays can be linked together directly, saving on cabling cost and complex.
Product Details
- 4.1” colour screen.
- Optically Bonded glass display.
- Single “do it all” display.
- Straight-forward user interface.
- Wide range of data support including Engine features.

Product Specifications
Approvals
Compliance | IEC/EN 60945 |
---|
Connectivity
NMEA 2000 | 2 x NMEA2000 Micro-C port, 3 LEN |
---|
Display
Backlight Color | Red |
---|---|
Resolution | 320 x 240 |
Size and Type | 4.1″ Bonded |
Electrical
Power Consumption, max. | 1.8W |
---|---|
Recommended Fuse Rating | 5A |
Supply Voltage | 12V DC (10-16V DC) |
Environment
Operating Temperature Range | -15 to +55ºC (5ºF to +131ºF) |
---|---|
Waterproof rating | IPx7 |
Physical
Dimensions (W x H x D) | 118 x 115 x 2mm (4.6 x 4.5 0.8″) |
---|---|
Mounting Type | Flush |
Weight | 0.28 kg (0.6 lbs) |
Other
Warranty Period | 2 Years |
---|---|
Interface | keypad |
Languages | English, French, Spanish, German, Italian, Swedish, Croatian, Norwegian |
