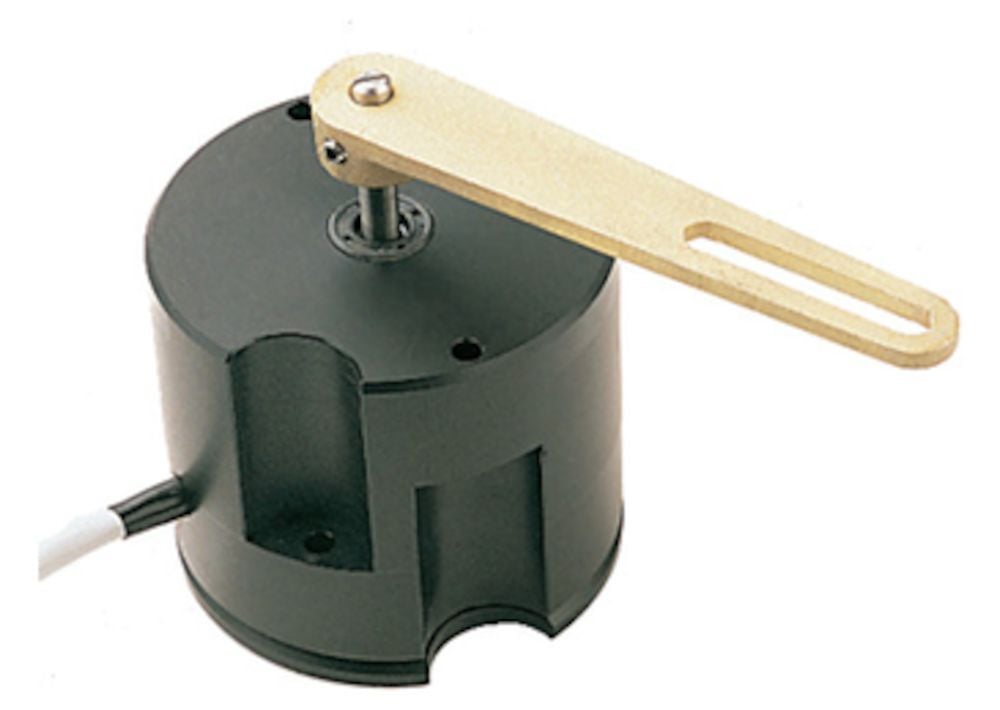

Simrad Pro Rf45x Rugged Rudder Feedback Unit

The RF45X is a medium duty rudder feedback unit. Mechanically it is identical to its predecessor, RF45, therefore it is a repairable rather than a potted throw away item.

Electrically it outputs a frequency (pulse width modulated) signal that matches with the J3XX input (AP35/AP50) but it can also output a frequency signal (selectable via internal jumpers) that matches with AP45 and AP9 Mk3. The RF45X can also operate on 24V DC a useful feature when connected in a stand alone rudder angle indicator system. The unit is mounted close to the rudder stock and is mechanically connected to the rudder by the RF45 transmission link.

• Medium duty feedback unit with transmission linkage.
• Mechanically identical to Simrad RF45.
• Variable frequency output for Simrad autopilots.
• Variable current output for rudder angle indicators.
• Requires 12-24VDC supply voltage.

Weight	1,596 kg
Dimensions	19,058 × 38,115 × 10,164 cm
SKU	22011415
Brand	Simrad Pro
Class Type	Autopilots
GTIN	809190000636
Component	Sensor/Transducer/Scanner/Antenna
Family	Simrad Pro Sensor – Rudder
Item Type	Main Product
Model	Simrad Pro RF45X
