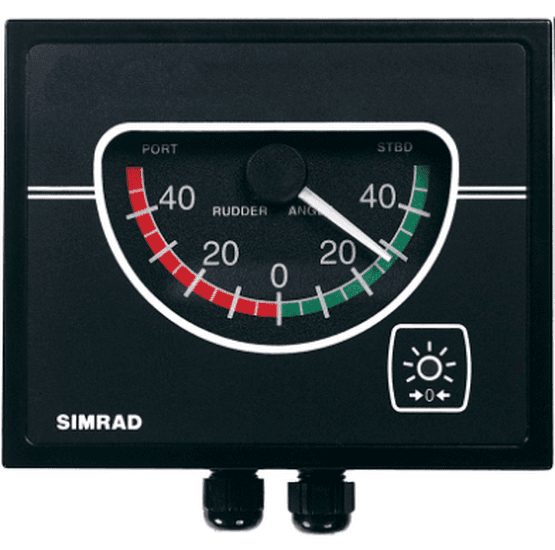

Simrad Pro RI35MK2 Rudder Angle Indicator
Refitting project? Contact us!
You save
RI35MK2 Rudder Angle Indicator; Designed for indoor/outdoor mounting. Operates with RF300, NMEA 0183, current 0.1-1.1 mA, or RF45X feedback units. Maximum of four units if operated on frequency; two units if operating on current.
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
Product Description
Manufactured in non-corrosive aluminium with a non-reflective black finish, the instrument is a standard modular size (132 x108 mm) to match the Simrad AP35 autopilot. A front panel key is used for illumination and setup. The splash proof construction allows panel, bulkhead or bracket mounting in exposed locations, such as bridge wings as well as wheel houses and engine rooms.
Product Details
- Displays rudder position up to 45 degrees port/starboard.
- Three-step adjustable LED backlight.
- Operates from frequency or current signal generated by a Simrad Autpilot Rudder Feedback Unit.
- Also accepts NMEA 0183 rudder angle (RSA) signal.
- Large format 6.8-inch display.
- IP66 rated.
Product Specifications
Approvals
| Compliance | IEC/EN 60945 |
|---|
Connectivity
| NMEA 0183 Sentences supported | Input: RSA. Output: RSA |
|---|---|
| NMEA 0183 | 1 x Tx, 1 x Rx NMEA 0183, Baud Rate 4800 |
Display
| Size and Type | 6.8″ |
|---|
Electrical
| Power Consumption, max. | 3W |
|---|---|
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12/24V DC (10-31V DC) |
Environment
| Operating Temperature Range | -25 to +55ºC (-13 to 130ºF) |
|---|---|
| Storage Temperature Range | -30 to +70ºC (-22 to 158ºF) |
| Waterproof rating | IP66 |
MFD
| Compass Safe Distance – Metric, imperial | 300mm (1.0′) |
|---|
Physical
| Dimensions (W x H x D) | 132 x 108 x 58mm (5.2 x 4.3 x 2.3″) |
|---|---|
| Mounting Type | Flush, Bracket |
| Weight | 1.0 kg (2.2 lbs) |
Other
| Warranty Period | 2 Years |
|---|
Additional information
| Weight | 1,596 kg |
|---|---|
| Brand | |
| Family | |
| Model | |
| Class Type | |
| Component | |
| Item Type |
