Product Description

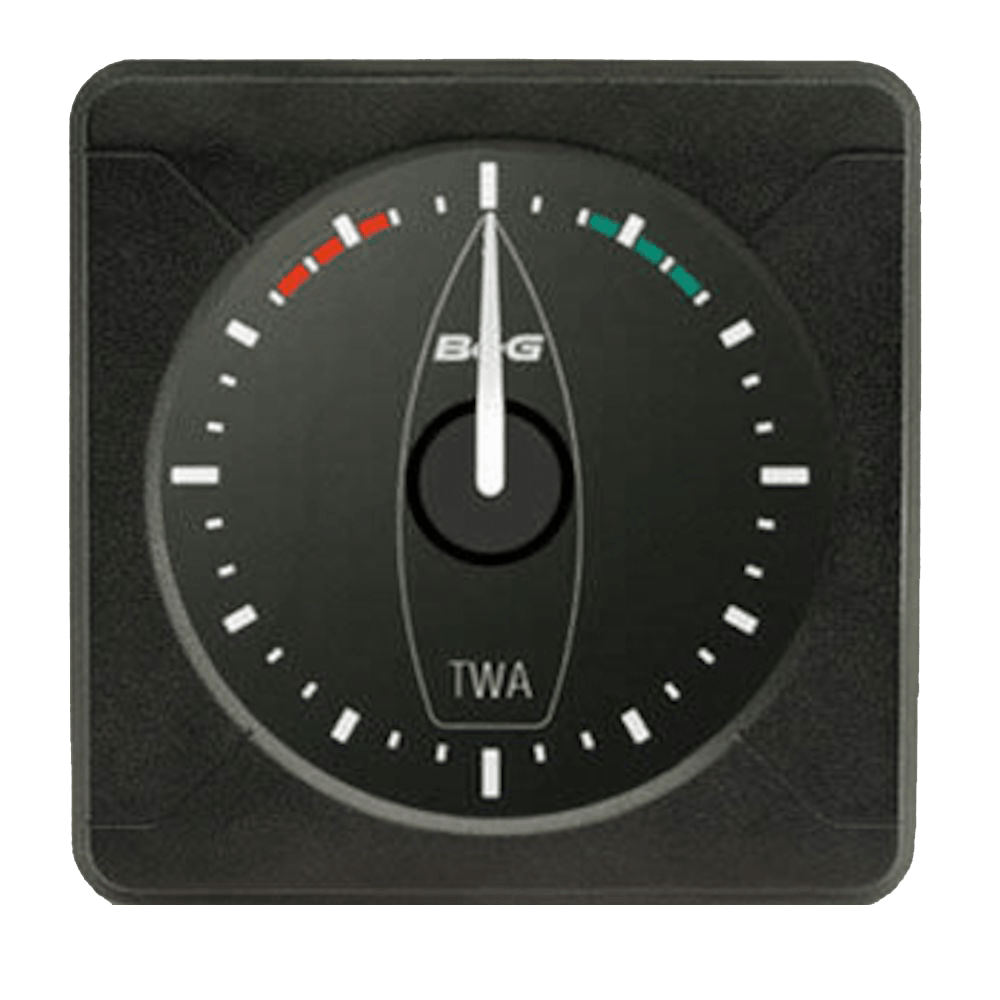

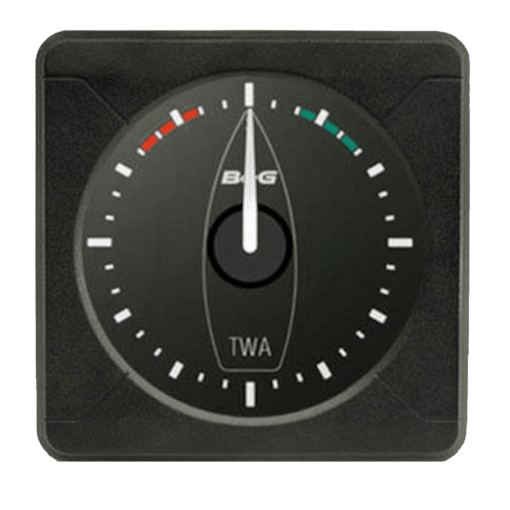

H5000 navigation, instrument and autopilot systems provide accuracy, choice and performance for offshore sailors and racers. Proven over literally millions of ocean miles, H5000 provides a wide range of displays, sensors and processors to provide a complete and personal system.
Product Details
- Front mounted, low profile design.
- ‘Daisy-chain’ option for ease of installation.
- Clear night lighting.
- High integrity mechanical construction including toughened glass display window.
- Compatible with H5000 and H3000 systems.

Product Specifications
Approvals
Compliance | IEC/EN 60945 |
---|
Connectivity
N2K PGNs | 130306, 128259, 129026 |
---|---|
NMEA 2000 | 2 x NMEA2000 Simnet port, 2 LEN |
Display
Backlight Color | White |
---|
Electrical
Recommended Fuse Rating | 5A |
---|---|
Supply Voltage | 12V DC (10-16V DC) |
Humidity | Up to 95% RH |
Environment
Operating Temperature Range | -10 to +55ºC (+14 to 131ºF) |
---|---|
Waterproof rating | IP67 |
MFD
Compass Safe Distance – Metric, imperial | 200mm (7.9″) |
---|
Physical
Dimensions (W x H x D) | 115 x 115 x 68mm (4.5 x 4.5 x 2.7″) |
---|---|
Mounting Type | Flush |
Weight | 0.5 kg (1.1 lbs) |
Other
Warranty Period | 2 Years |
---|
