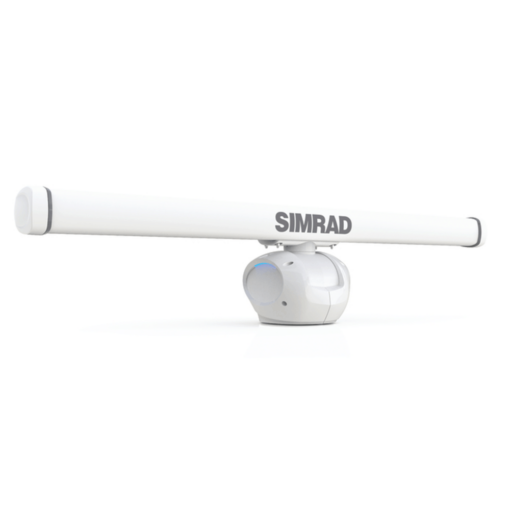

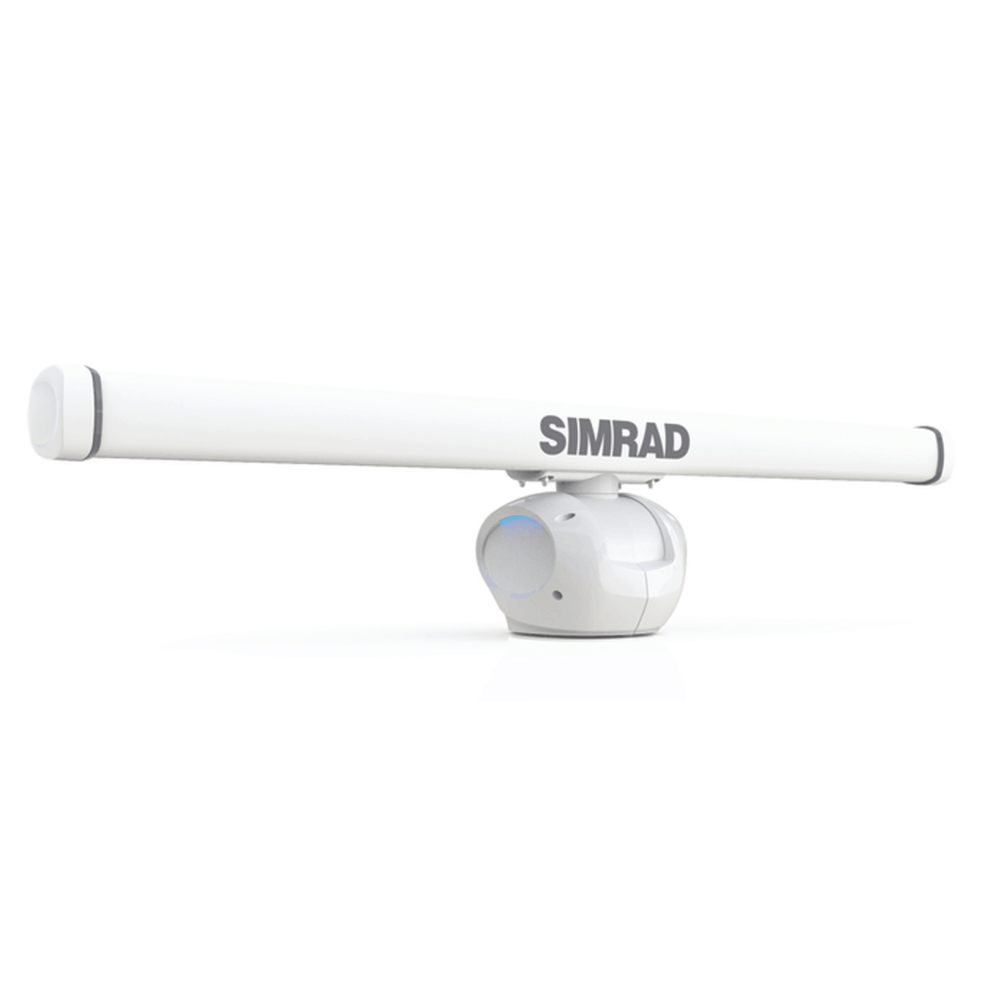

Simrad HALO-6 Pulse Compression Radar

See Near and Far, Simultaneously

Halo™ radar delivers an unprecedented mix of short and long range performance with its 6-foot open array, from just six metres (20 feet) to as far as 72 nautical miles. Monitor two distance ranges simultaneously in Dual Range mode, and take full advantage of Halo radar to keep an eye on faraway weather cells while monitoring channel markers and high speed watercraft up close. Pulse Compression technology means no compromises in detection at either range. Advanced digital signal processing helps to eliminate sea clutter, while Beam Sharpening technology provides enhanced separation between small or distant targets.

Safety, Weather, and Bird-Finder Radar

Halo radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, or automatically highlight all approaching targets with the optional VelocityTrack™ Doppler motion-tracking upgrade. Keep watch on distant storm cells in Weather mode, your own real-time meteorological service. Halo radar also works as a powerful bird-finder, a must-have tool for sportfishing enthusiasts and pro anglers. Halo radar’s smart Weather and Bird modes require no manual tuning, just set the mode and go.

Ready in an Instant

Collision hazards won’t wait for your radar to start up – why should you? Halo radar’s solid-state technology is ready instantly from standby, and in just 16-25 seconds from a cold start. Avoid the 2-3 minute warm-up time associated with traditional pulse radar and trust Halo Radar to produce an immediate, accurate radar image when you need it. Halo radar’s low-power pulsed transmissions make it safe to run in anchorages and marinas, providing additional coverage in these high-collision-risk environments. Fast 48 RPM operation provides frequent position updates, while an advanced brushless motor and helical geartrain ensure quiet operation.



• True 72nm range with 6-foot open array antenna.
• Beam Sharpening for enhanced target separation.
• Simultaneous Dual Range operation.
• Dedicated Harbour, Offshore, Weather, and Bird modes.
• High-speed 48 RPM operation for rapid updates.
• Ready instantly from standby, and in 16-25 seconds from power-on.
• MARPA target tracking (up to 10 targets, 20 in dual range).
• Optional VelocityTrack™ Doppler upgrade for collision avoidance.



Approvals

Compliance	FCC/IC/R&TTE Type Certifi cation FCC ID: RAYHALO IC ID: 4697A-HALO R&TTE: Emissions compliant to SM1541-4 (including -40 dB/dec future design objectives)

Connectivity

NMEA 0183 Sentences supported	Sentenses used by the radar application. HDG, HDT, HDM, GGA, GLL, RMC, VTG.Baud rate: Auto sense 4800, 9600, 19200 or 38400
Ethernet	RI-12, 1 x 100 Mbit RJ45 Adapter to 5 pin yellow supplied)
N2K PGNs	127250 – Vessel Heading, 127251 – Rate of Turn, 129025 – Position, Rapid Update, 129026 – COG & SOG, Rapid Update, 129029 – GNSS Position Data, 130818 – Proprietary
NMEA 0183	Via RI-12, AT-10 HD or MFD
NMEA 2000	RI-12, 1 x NMEA2000, Micro-C, 1 LEN

Electrical

Power Consumption, max.	180 W (peak) at maximum wind velocity
Power Consumption, typical	40 W (average) at zero wind velocity 6.5 W (average) for Scanner + RI-12 in Standby mode
Recommended Fuse Rating	25 A for 12 V systems or 15 A for 24 V
Supply Voltage	12 V Systems 10.8 – 15 V DC 24 V Systems 20 – 31.2 V DC
Humidity	IEC60945 Exposed product

Environment

Operating Temperature Range	-25°C to +55°C (-13°F – 131°F)
Shock and Vibration	IEC60945 Exposed product and 20G, 100,000 cycle
Waterproof rating	IPX6

MFD

Compass Safe Distance – Metric, imperial	STD. 1.0 m (3.3 ft) Steer 0.5 m 1.6 ft)
Dimensions (Diameter x H)	2045 mm (6.5 ft)

Physical

Dimensions (W x H x D)	324 mm x 427 x 339 mm (12.76″ x 16.81″ x 13.35
Weight	Pedestal: 18.75 Kg (41.3lb) Antenna: 6.5 Kg (14.3 lb)

Radar

Beam width	1.2°+/-10% (-3 dB width) – 0.8 deg with Beam sharpening mode ON: Vertical: 25° +/-20 % (-3 dB width)
Max Range, scale	72 nm
Max Operating Wind Speed	70 kn
Min Range, scale	75 m (300 ft)
Radar Modes	Head Up, North Up
Radar Technology	Pulse Compression
SART/RACON Trigger	Yes – trigger distance: about 1nm max – weather, sea state, and SART position dependent

Other

Warranty Period	2 Years
Interface	Simrad or B&G Ethernet MFD
Languages	See Radar Controller

Weight	35,3 kg
Brand	Simrad Yachting
SKU	000-11471-001
Family	Radar – Halo
GTIN	9420024128824
Model	HALO-ANT6
Class Type	Radar
Component	Packaged Systems
Item Type	KIT
