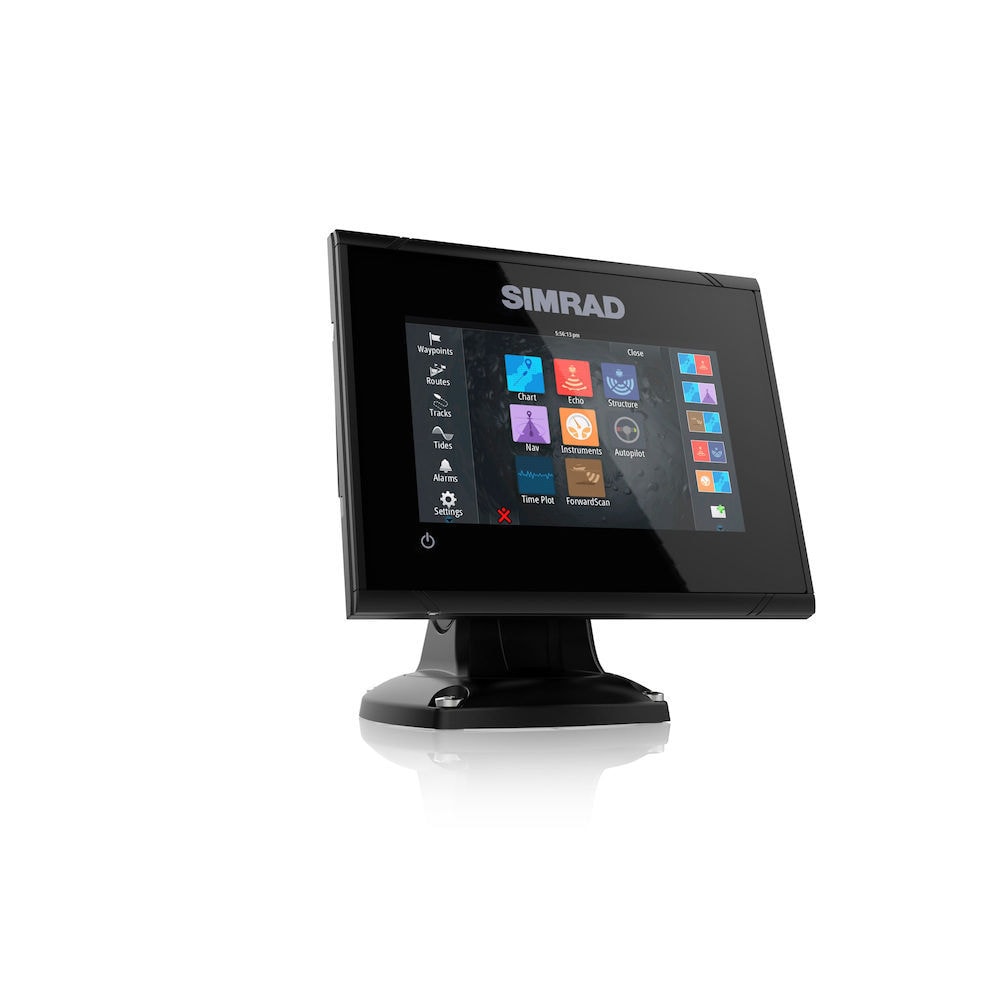

Simrad GO5 XSE Chartplotter. Includes Totalscan transducer and a C-MAP Insight Pro SD

Overview

Easy to Use Multi-Touch Display

The GO5 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts.
Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognise and tap.

Chartplotter Navigation & Waypoint Management

The GO5 XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts. Navigate confidently to destinations
near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint mangement: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you’ve mapped out ten places or a thousand.

Fully Customisable Interface

The Simrad GO5 XSE is fully customisable to suit your vessel and your favourite on-water activities –
from power boating, to fishing, to water sports. Customise your home screen with shortcuts to the features you use most, and personalise it with your choice of wallpaper. Adjustable split-screen views and customisable panel layouts let you see everything you need on-screen at once, whatever your activity.

Plan Smarter with TripIntel™ Technology

Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe
and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.

Easier Navigation with Automatic Routing

Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route
and get underway with less delay. Simply select a destination, and your GO XSE display will suggest the shortest, safest route taking into consideration the draught and dimensions of your vessel. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Autorouting), and with C-MAP MAX-N+ charts (Easy Routing)* Automatic routing features are unavailable in North America.

Built-in 10 Hz GPS receiver*

With a high-speed GPS receiver updating your position ten times every second, the Simrad GO5 XSE is ideal for use
aboard fast-moving RIBs and powerboats. Watch your boat’s movement tracked smoothly, accurately, and in real-time, without ‘jumping’ from point to point on the display.

Cruise Charting View

Designed with power boating in mind, the Simrad GO5 XSE offers a unique Cruise Charting page that brings together
crucial navigation data and charts in one easily readable display. Choose the information most relevant to your crusing style and on-water activities with the ability to edit on-screen data items.

NMEA 2000® Engine Monitoring & Instrumentation

The Simrad GO5 XSE connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard
engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.

Watch Your Depth with Built-in Sonar

Knowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it
easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging™ combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.

Cruise Confidently with ForwardScan™ Sonar

Using an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional
image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.

Find fish with CHIRP & StructureScan® HD sidescan imaging

Whether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of
built-in sonar technology on the Simrad GO5 XSE. Add a suitable transducer, available separately or bundled with your display, and the GO5 XSE works as a powerful fishfinder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. With an optional HDI or TotalScan transducer, the GO5 XSE also offers StructureScan HD sidescan imaging for a picture-like view of fish-holding structure beneath and around your boat.

Simrad SonicHub®2 & Bluetooth® Audio Integration

If you’re not at home on the water without a good soundtrack, the Simrad SonicHub®2 marine audio system
is the perfect companion to a GO5 XSE display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices, play MP3 files from a USB flash drive, or listen to the SonicHub 2’s built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO5 XSE display, eliminating the need for a separate stereo head-unit and letting you listen to your music, your way.

GoFree™ cloud enabled with Built-in Wi-Fi

With Wi-Fi built in, the Simrad GO5 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the
driveway, logged in to your marina’s Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO5 XSE to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.

* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.

• Easy to use multi-touch interface.
• Full-featured chartplotter with widest available cartography support (Insight, Navionics, C-MAP).
• Includes worldwide basemap.
• Plan smarter with TripIntel™ technology.
• Support for Navionics Dock-to-dock Autorouting and C-MAP Easy Routing (unavailable in North America).
• 5-inch flush or bracket mount display.
• Widescreen with bright LED backlight.
• High-speed 10 Hz GPS receiver.
• Includes TotalScan™ transducer for medium/high frequency CHIRP sonar and StructureScan® HD imaging.
• Built-in GoFree™ Wi-Fi.
• NMEA 2000® compatible.

Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Cartography

Chart Format	Bracket or Panel
Charts Supported	537g (1.18lb)

Connectivity

Bluetooth	No
Ethernet	No
N2K PGNs	Recieve only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Reolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Recieve:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	No
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	No
WiFi	Yes

Display

Backlight Color	White
Resolution	480 x 800, WVGA, 15:9
Screen Brightness	1200 nits
Size and Type	5″ optically bonded TFT
Viewing Angles	70° top / 30° bottom, 70° left/right

Electrical

Power Consumption, max.	12W
Recommended Fuse Rating	3A
Supply Voltage	9 – 31.2 V DC
Humidity	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

Environment

Operating Temperature Range	“-15°C to +55°C (5° F to 131° F)
Shock and Vibration	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range	“-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX 7

GPS

Correction	WASS, EGNOS, MSAS
GPS Receiver Channels	32 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix	Cold start 50 sec, Satellite Reacquisition 5 sec
Update rate	10 Hz

MFD

AIS	No
Cartography included	TBD
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
External Storage	1 MicroSD slots, max. 32GB each )>32 GB if formatted NTFS
GPS	Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage	90 MB
Multimedia	Touch screen
Sonar (inc. compatibility)	Integrated CHIRP / DownScan / Forwardscan. (transdcuer required)
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.

Physical

Dimensions (W x H x D)	2 Years
Mounting Type	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commision
Weight	BEP C-Zone

Other

Warranty Period	2 Years
Interface	Receive AIS data over NMEA 2000 only
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Weight	3,78 kg
Dimensions	20,8 × 27,62 × 23,5 cm
Brand	Simrad Yachting
Family	GO XSE
Model	GO5 XSE
Class Type	Fishfinder/Chart
Component	Head/Display
Item Type	Main Product
