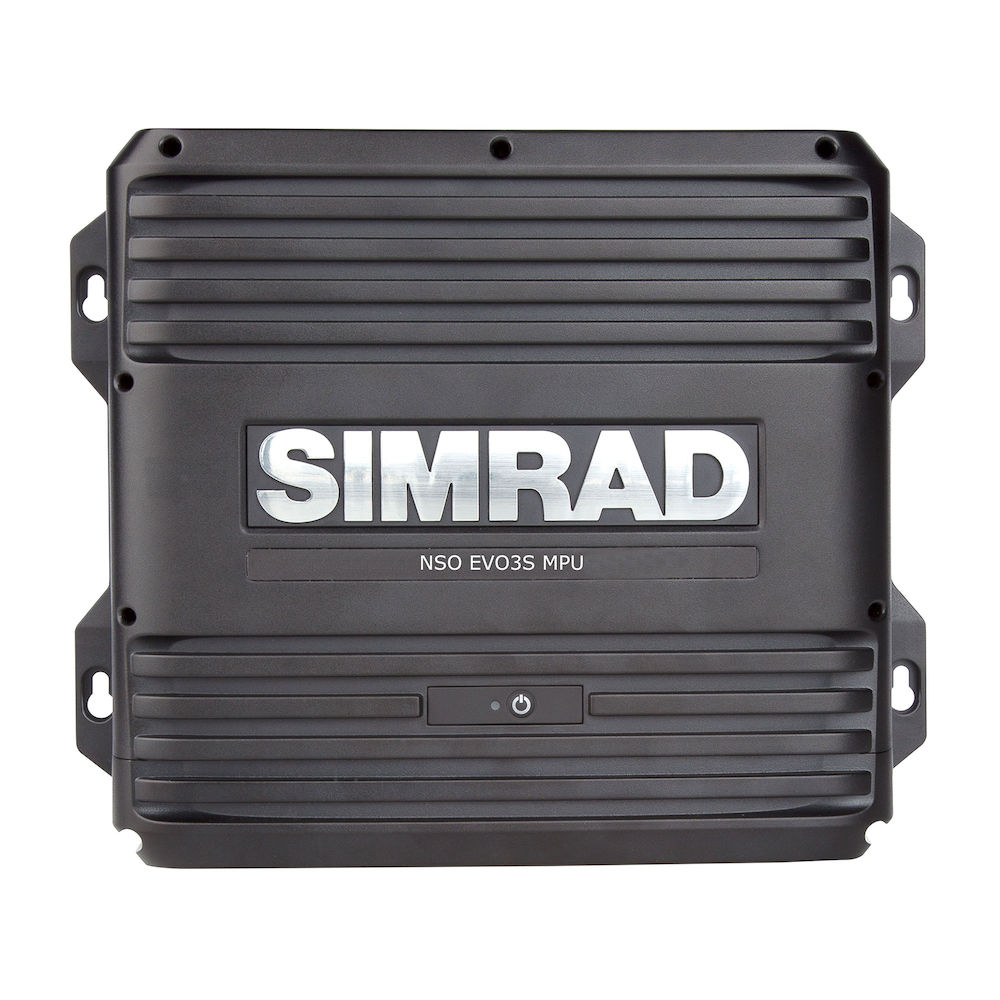

Simrad Nso Evo³S MPU Marine Processor Unit, Worldwide Basemap (NO Detailed Cartography)

Customize and build your preferred system
Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two Quad Core processors and the connectivity options needed to integrate and expand your system vessel-wide. Customize it the way you want: add two touchscreen or keypad monitors in your choice of size, with each functioning as a separate multifunction display; connect with a wide range of Simrad and third party accessories from charting, radar and sonar, to autopilot and on-board entertainment, for complete system control from every networked display on board.

Dual monitor support – enabling two independent stations
An NSO evo3S Processor works as the brain of your boat: a compact marine computer that is able to drive two independent touchscreen or keypad monitors (sold separately). Each monitor works as a full-featured multifunction display providing access to charts, radar, sonar, and more. Add two displays side-by-side at a single station, or create two separate stations for individual crew members to use simultaneously. Network additional NSO evo3S processors to add extra displays, perfect for dual-helm vessels.

Modular design for simple and cost effective installation
NSO evo3S offers a flexible and cost effective way to create a multi-display system for your boat, with just one ‘black box’ processor powering two separate displays. A modular design simplifies wiring and avoids the need to carry extra hardware, such as GPS receivers or sounder modules, for every display on board. Accessories can be added as required – simply connect to your NSO evo3S below deck without the need to be networked with each individual display at the helm.

Touchscreen or keypad for complete control
Command NSO evo3S with Simrad MO-series touchscreen monitors, or an optional OP50 keypad and rotary dial. Switch seamlessly between the convenience of a touchscreen and the all-weather reliability of a classic keypad. Add a standard USB mouse, trackball, or keyboard to simplify tasks such as route planning, ideal for NSO evo3S displays installed in a pilothouse or cabin.

Quad Core processors for supreme performance
NSO evo3S features two quad-core processors delivering category leading response times across connected displays. Navigate easily with fast chart redraws, switch quickly between different displays or instruments, and experience seamless performance in demanding applications such as the optional StructureScan® 3D imaging system.

Industry-standard vessel-wide connectivity
NSO evo3S systems offer vessel-wide integration, with Ethernet and industry-standard NMEA 2000® connectivity with an extensive selection of Simrad and third party accessories. Find fish with a wide range of sonar and transducer options, gain greater situational awareness with a Simrad radar, free your hands from the wheel with autopilot, or cruise to your own soundtrack with the SonicHub®2 marine audio system, JL Audio, Fusion and more.

Simrad MO series monitors – designed with the marine environment in mind
Our MO series marine monitors are the perfect complement to your NSO evoS3 display system. These IPX6 water-resistant displays are available in a range of sizes, with the choice of either touchscreen or keypad versions. Our touchscreen monitors are perfect for outdoor use, featuring extra bright sunlight-viewable screens, while our non-touch monitors are great for enclosed pilothouses or cabins.

• Dual video outputs to run two independent displays
• Choose from touchscreen or keypad monitors in a variety of sizes
• Two six-core processors for ultra-smooth response
• Easily manage custom screen layouts across multiple displays
• Add optional keypad controls or connect a USB mouse, trackball, or keyboard
• Compact, lightweight, and modular design for ease of installation



Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Autopilot

Manouevres / Turn Patterns	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Bluetooth	No
Ethernet	3 x RJ45 1 Mbit ports, max 3 MPU on network
N2K PGNs	Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	2 x Transmit, 2 x Receive NMEA 0183, One on each display head. Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-11247-001)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	Inputs: 2 x composite (BNC connectors) inputs. PAL or NTSC: Output 1 x HDMI
WiFi	Compatible with WIFI-1 external module

Display

Resolution	Output Resolutions 1366×768 (WXGA), 1920×1080 (Full HD 16:9), 1920×1200 (WUXGA 16:10), 1280×800 (16:10), 1280×1024 (SXGA 5:4)

Electrical

Power Consumption, max.	45W
Recommended Fuse Rating	5A
Supply Voltage	9 – 31.2 V DC

Environment

Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Storage Temperature Range	“-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX2

MFD

AIS	Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to both NMEA 0183 ports on the MPU)
Autopilot	Full auto pilot control and commissioning
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
Digital Switching	BEP C-Zone
External Storage	1 SD slot, or optional USB reader. max. 32GB
Internal Storage	90 MB
Multimedia	via SonicHub, SonicHub2, FusionLink, *Sirius (*USA only)
Radar (inc. compatibility)	Broadband Radar, Halo Pulse Compression Radar, HD Pulse
Sonar (inc. compatibility)	No Internal echosounder. Compatible with: SonarHub, StructureScan, StructureScan3D, BSM-3, BSM-2, BSM1 network echo sounders
Weather	SiriusXM via WM-3 (USA only), GRIB
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Physical

Dimensions (W x H x D)	281 x 232 x 66 mm (11 x 9.1 x 2.5″)
Mounting Type	Bracket (Supplied) , panel, flush
Weight	1.06 kg (2.33 lbs.)

Other

Warranty Period	2 Years
Interface	Touch control on Moxx-T Monitors, USB Keyboard, USB Mouse OP40, OP50 remotes
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Weight	1,9 kg
Dimensions	30,48 × 30,48 × 1,9 cm
SKU	000-15045-001
Brand	Simrad
Class Type	MFD
GTIN	9420064104994
Component	Processor/Computer/Ethernet Module
Family	Simrad NSO EVO3S
Item Type	Main Product
Model	Simrad NSO3S MPU
