B&G Zeus³S Glass Helm 24″ Display Only

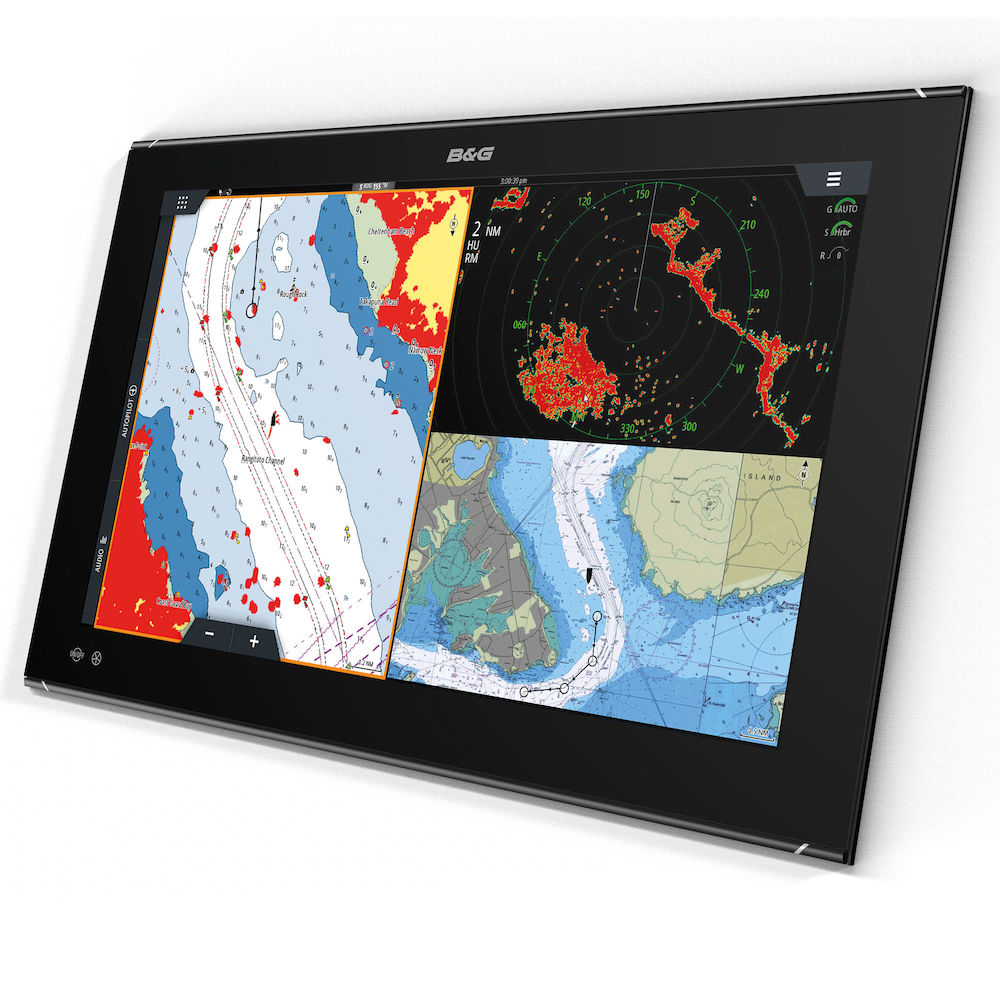

B&G Zeus³S GH 24″ Display Only: The B&G Zeus³S Glass Helm 24 is designed specifically for blue water sailing, multihulls and superyachts. This premium, super-fast, large-screen, multifunction display sits at the heart of your fully integrated navigation system. The Zeus³S Glass Helm provides easy-to-use touchscreen and remote control options. B&G’s unique sailing features including SailSteer and RacePanel all combine with Radar, charting, sonar and much more. (World Basemap or C-MAP US)

View data easily on the all-weather screen

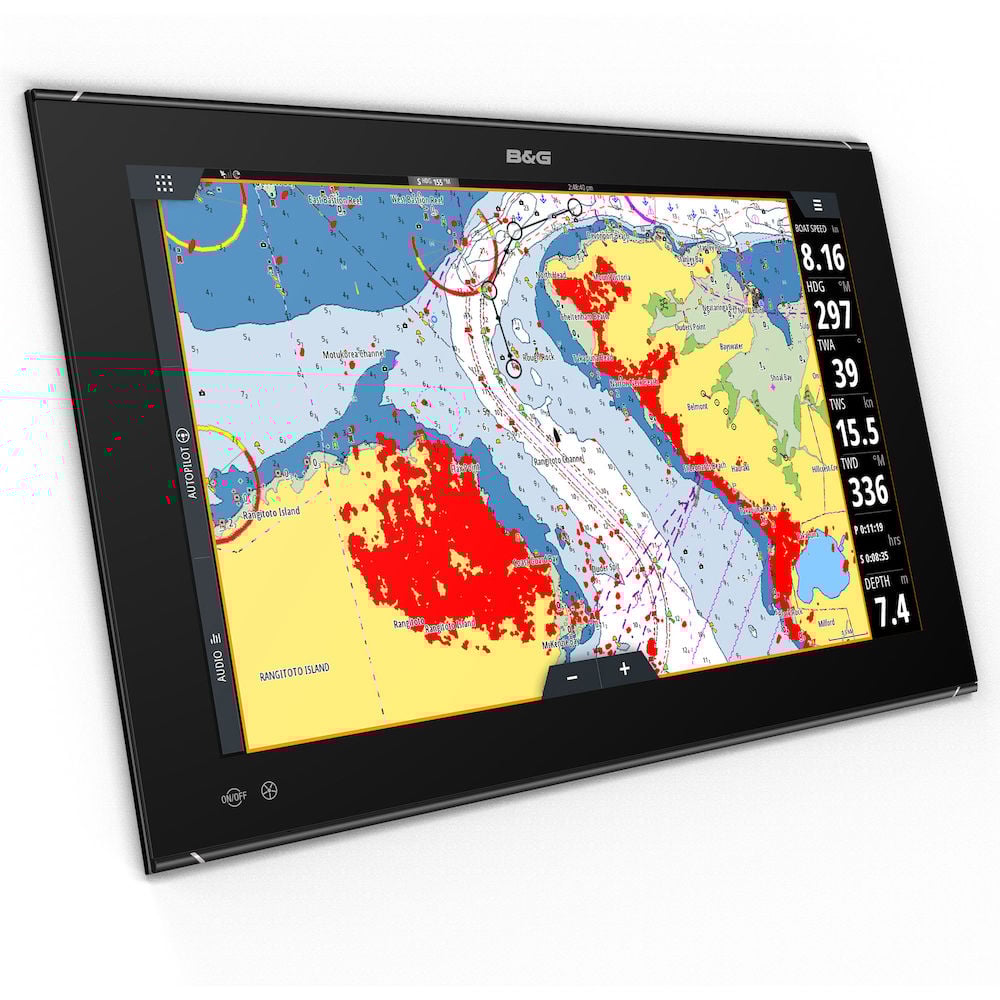

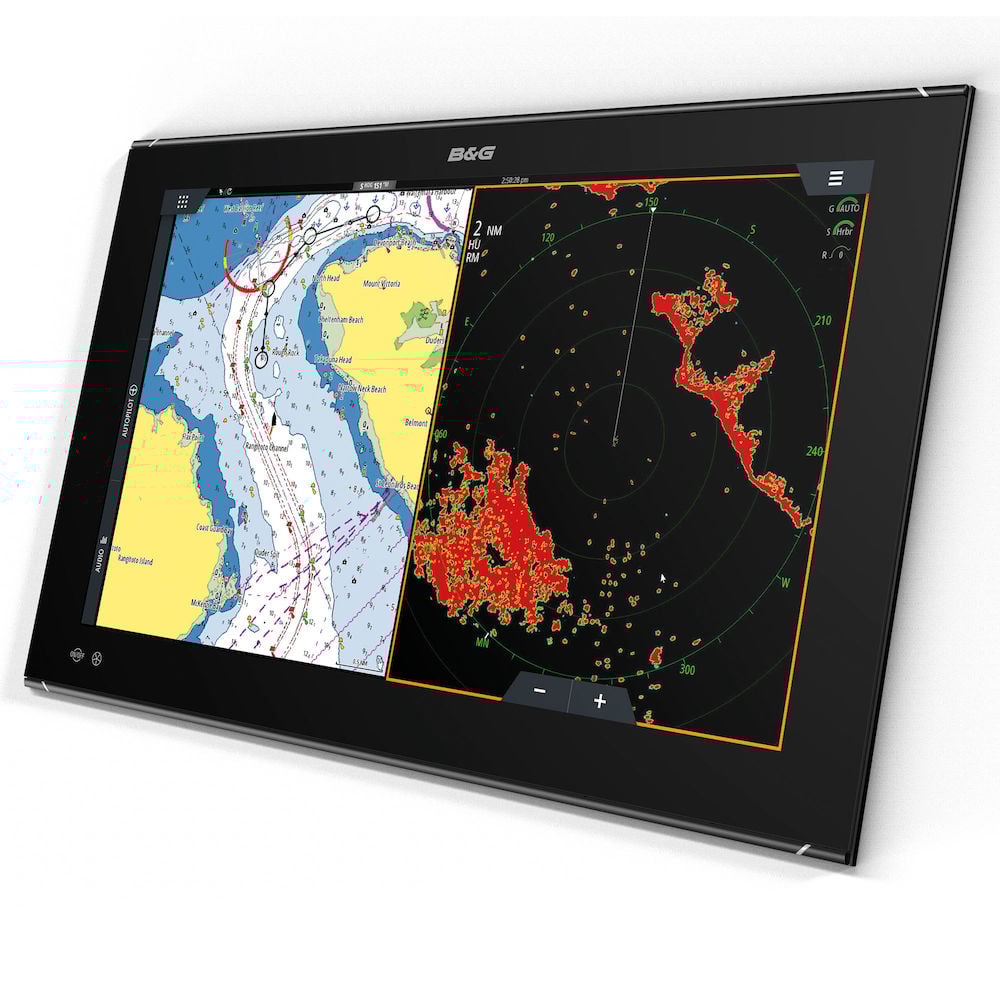

The B&G Zeus³S Glass Helm has an ultra-bright, wide-angle, full HD display combined with all-weather touchscreen. Whether it’s planning a route, checking for obstacles and weather on the Radar* screen, or simply navigating to your next destination; the Zeus³S Glass Helm’s impressive screen enables the user to view the data easily through polaroid lenses, from almost any angle, even in bright sunlight. This low profile, glass design provides a smart solution for any large sailing yacht.

Powerful & intuitive all-in-one unit
B&G Zeus³S Glass Helm is a premium, large screen multi-function display with powerful quad-core processor and intuitive touchscreen that makes it easy-to-use. The built-in processor also means no separate “black box” is required, simplifying system integration and expansion. The familiar pinch-to-zoom and swipe-to-pan actions to control the many features, make life on the water easier and safer.

Dedicated sailing features for cruising and racing

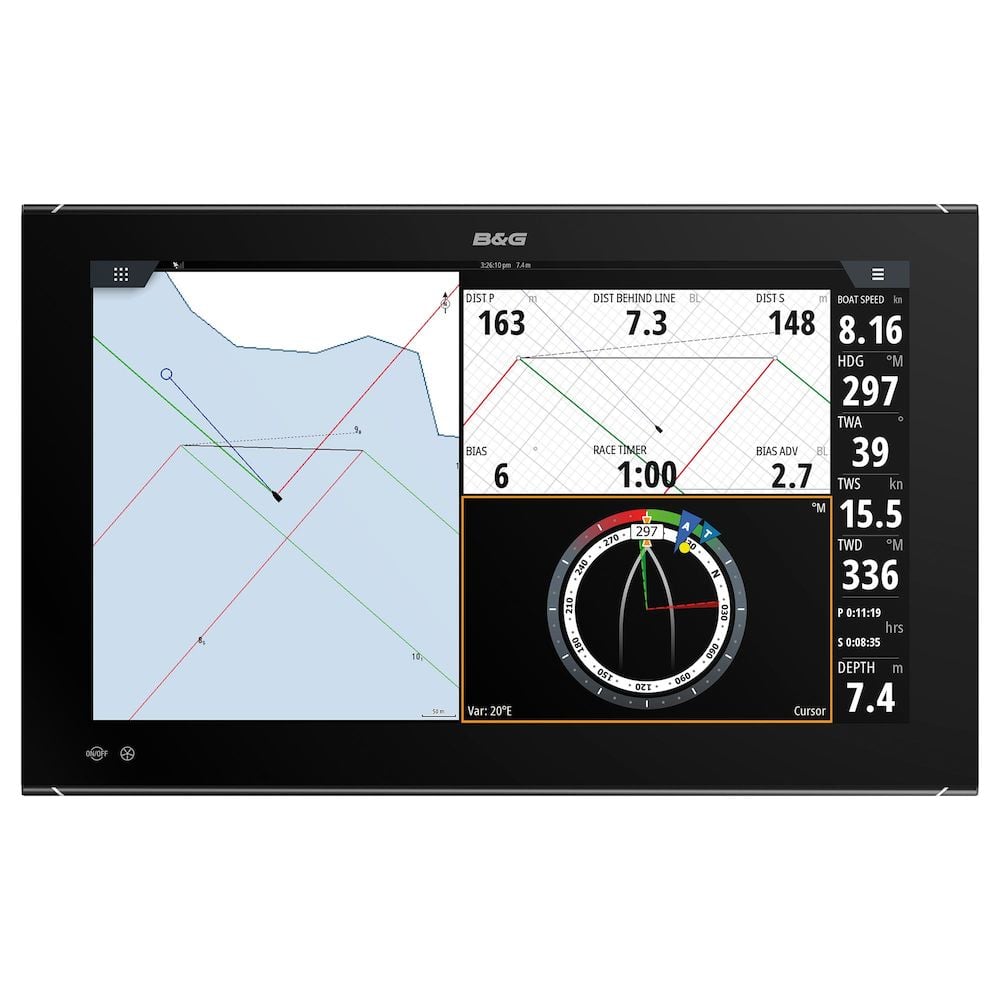

With B&G’s award-winning sailing functions, you can see all of your key sailing data together on one screen, or overlaid on charts for the modern sailor’s ultimate navigation view. Taking accurate data from the B&G instruments and sensors on the network, B&G SailSteer will provide an intuitive graphic display of your Boat Speed, Wind, Heading, Tide, Wind Shift Sectors and Laylines. It’s easy to add waypoints or plot a course; and with B&G SailingTime you’ll see waypoint arrival times based on a sailing course and tidal effects, rather than a straight-line calculation.

• Easy viewing whatever the conditions, with large, low-profile, full glass display with best-in-class screen Ultra-bright, wide-angle Full HD Display
• Plan routes, add waypoints, or adjust course and settings using the easy-to-use touchscreen or Zeus Controller (required)
• Get more from your sailing with B&G’s dedicated sailing features for cruising or racing
• SailSteer
• SailingTime
• RacePanel
• Laylines
• Powerful integration with on board systems including Broadband Radar™, ForwardScan™,instruments, B&G autopilots, entertainment and digital switching systems
• Built-in, powerful processor (no black box required)
• Integrated Wi-Fi for easy access to charts and software updates
• Choose from the widest range of charts to suit your area including C-MAP and Navionics®
• Easy networking and integration with NMEA 2000®

Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Autopilot

Manouevres / Turn Patterns	Tack / Gybe, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Bluetooth	Internal
Ethernet	5 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
N2K PGNs	Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	2x NMEA0183 (IEC61162-1), 2x NMEA0183-HS (IEC61162-2)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	HDMI Video in from a PC
Video	2x composite video (BNC), 1x high definition video (1080p, HDCP 1.4, HDMI-A), 1x high definition video output (1080p, no HDCP, HDMI-A)
WiFi	Internal 802.11b/g/n

Display

Backlight Color	White
Resolution	1920×1080
Screen Brightness	1200 nits
Size and Type	MVA 24“ optically bonded TFT
Viewing Angles	80° top/bottom, 80° left/right

Electrical

Power Consumption, max.	80 W +- 4 W
Recommended Fuse Rating	10 A @ 12 V DC
Supply Voltage	10 – 32 V DC

Environment

Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Shock and Vibration	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range	“-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof

MFD

AIS	Receive AIS data over NMEA 2000 or NMEA 0183 (AIS is not bridged to N2K)
Autopilot	Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included	World basemap
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Digital Switching	BEP C-Zone, Naviop
External Storage	1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
GPS	External GPS required
Internal Storage	16 GB
Multimedia	via SonicHub2, Fusion Link, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only)
Radar (inc. compatibility)	Halo Pulse Compression Radar, Broadband Radar, HD Radars
Sonar (inc. compatibility)	External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required.
Weather	SiriusXM (USA only), GRIB, Predict Wind
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Compass Safe Distance – Metric, imperial	50 cm (20″)

Physical

Dimensions (W x H x D)	625.1 x 386 x 83 mm (24.61 x 15.29 x 3.27“) With bracket: 648.9 x 388.5 x 212.5 mm (25.55 x 15.29 x 8.37“)
Mounting Type	Panel or Bracket mount (use optional heavy duty bracket 000-13547-001
Weight	7.8 kg (17.2 lbs.)

Other

Warranty Period	2 Years
Interface	Touch screen, ZC1 or ZC2 controller via NMEA 2000
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Weight	9,24 kg
Dimensions	17,8 × 73 × 9,24 cm
SKU	000-15052-001
Brand	B&G
Class Type	MFD
GTIN	9420064105069
Component	Head/Display
Family	B&G Zeus3S GH
Item Type	Main Product
Model	B&G 24
